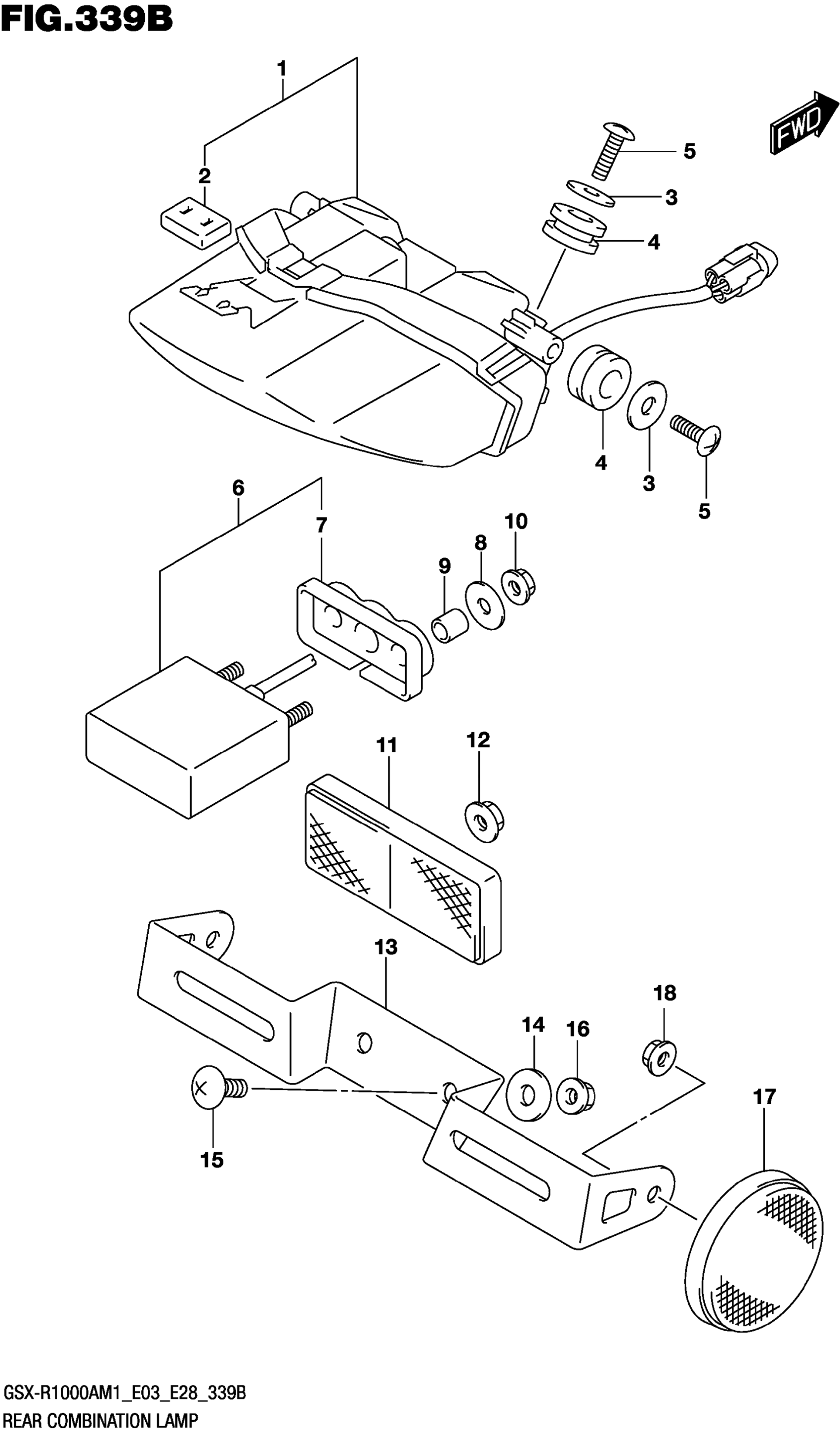

Suzuki GSX-R1000AM1 (2021) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB

35710-17KA0

$377.47

2

CUSHION

35781-17K00

$13.63

3

WASHER (5.5X18X1.0)

09160-05045

$1.93

4

CUSHION

09320-10073

$2.27

5

SCREW

03541-0516A

$1.49

6

LAMP ASSY,LICENSE

35910-17K00

$161.85

7

.RUBBER

35913-17K00

$16.87

8

WASHER (5.5X18X1.0)

09160-05045

$1.93

9

SPACER (6.5X9X9)

09180-06263

$2.03

10

NUT

08316-1005A

$2.19

11

REFLECTOR ASSY,RR

35970-07F01

$20.88

12

NUT

08316-1005A

$2.19

13

BRACKET,LICENSE PLATE

35927-17K00

$13.90

14

WASHER (6.5X18X1)

09160-06151

$1.92

15

SCREW

02142-0616A

$1.49

16

NUT (6X12)

08316-1006A

$2.19

17

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

18

NUT

08316-1005A

$2.19
