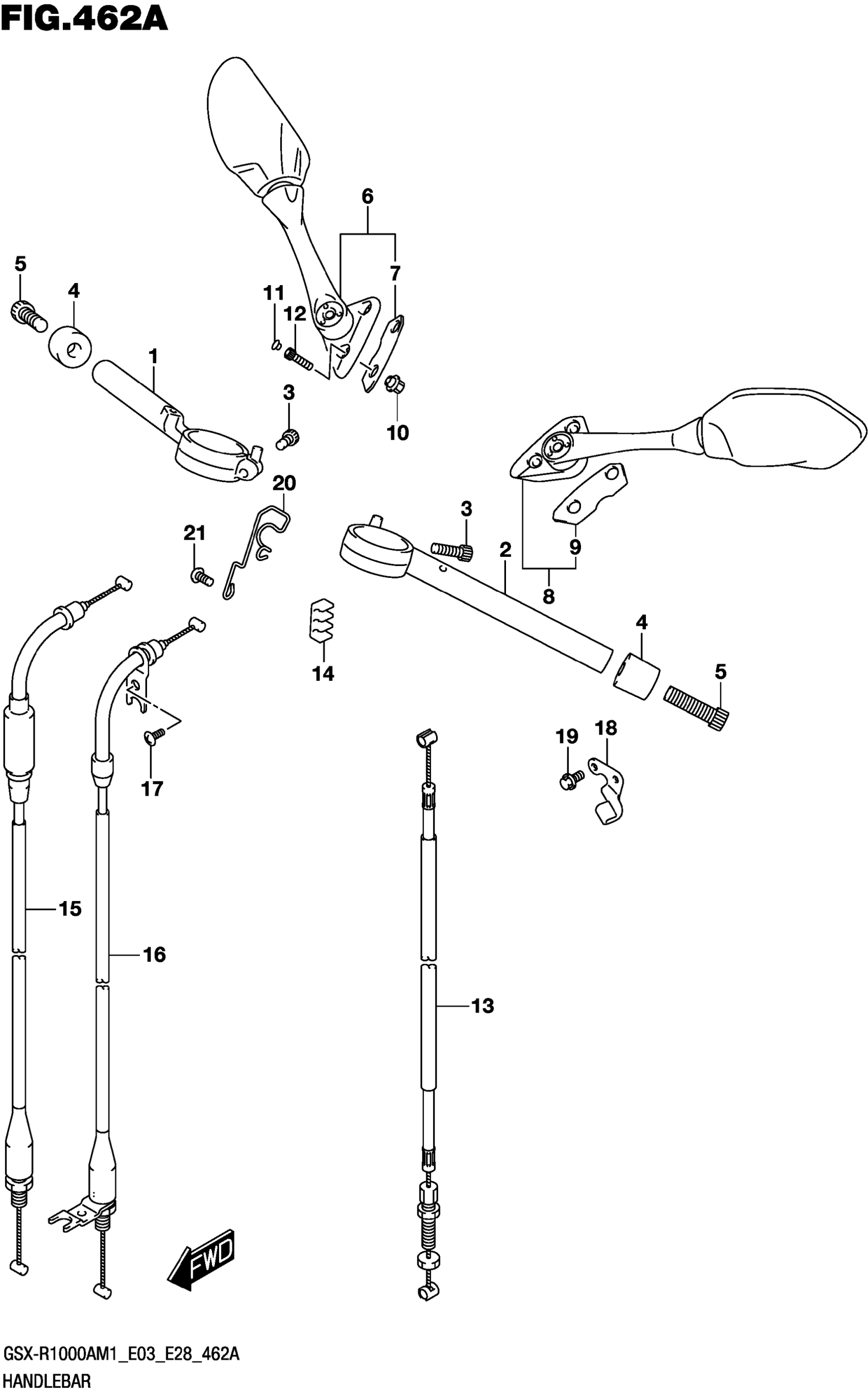

Suzuki GSX-R1000AM1 (2021) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR,R

56111-17K01

$97.64

2

HANDLEBAR,L

56151-17K01

$112.42

3

BOLT (8X32)

09106-08185

$2.73

4

BALANCER,HANDLEBAR

56278-17K00

$26.91

5

BOLT,HANDLE BALANCER

56277-17K00

$3.94

6

MIRROR ASSY,REAR VIEW,R

56500-17K00

$138.03

7

.CUSHION,MIRROR

56525-17K00

$5.89

8

MIRROR ASSY,REAR VIEW,L

56600-17K00

$138.03

9

.CUSHION,MIRROR

56525-17K00

$5.89

10

NUT,RR VIEW MIRROR

56619-41G01

$9.31

11

CAP (OD:10)

09250-05009

$2.19

12

BOLT

07130-0620B

$3.05

13

CABLE ASSY,CLUTCH

58200-17K01

$34.17

14

CLAMP

58285-17K00

$3.65

15

CABLE ASSY,THROTTLE NO.1

58300-17K01

$57.58

16

CABLE ASSY,THROTTLE NO.2

58300-17K11

$60.88

17

SCREW (5X10)

09125-05042

$1.96

18

STOPPER,CLUTCH CABLE

58635-17K00

$13.06

19

BOLT

01550-0616A

$1.97

20

GUIDE,CABLE

58621-17K01

Unavailable

21

SCREW (6X16)

09139-06214

$2.60
