Description

Price

1

BRACKET,FUEL TANK FRONT

44521-17K00

$86.32

2

SCREW (5X16.4)

09139-05078

$3.49

3

CUSHION (8.5X20X8)

09320-08510

$1.97

4

NUT (M5)

09148-05052

$3.37

5-1

COVER,FUEL TANK (BLACK) | BODY COLOR:YKV

44290-17KE0-YKV

$206.68

5-2

COVER,FUEL TANK (BLACK) | BODY COLOR:4TX

44290-17KE0-4TX

$206.68

6-1

.TAPE SET,FUEL TANK COVER (BL | CK) BODY COLOR:YKV

68120-17K30-CRU

$30.15

6-2

.TAPE SET,FUEL TANK COVER (OR | NGE,BLACK) BODY COLOR:4TX

68120-17K30-B9E

$29.20

7-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:YKV

68271-04A10-019

$14.30

7-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:4TX

68271-04A10-YES

$12.58

8

SCREW (6X40)

09139-06210

$4.82

9

WASHER This part replaces 09160-06012.

09160-06054

$1.62

10

CUSHION (10X22X13)

09320-10050

$3.35

11

SPACER,FUEL TANK FRONT

44512-17K00

$5.98

12

PROTECTOR (50X50X5) This part replaces 33652-21G00.

33652-20C00

$2.99

13

CUSHION,FUEL TANK COVER (L:38

44277-17K00

$4.37

14

SCREW (6X10)

09139-06181

$3.83

15

NUT (M6)

44523-47H00

$10.02

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

17

FASTENER (20X15X2.6)

44572-44G00

$10.18

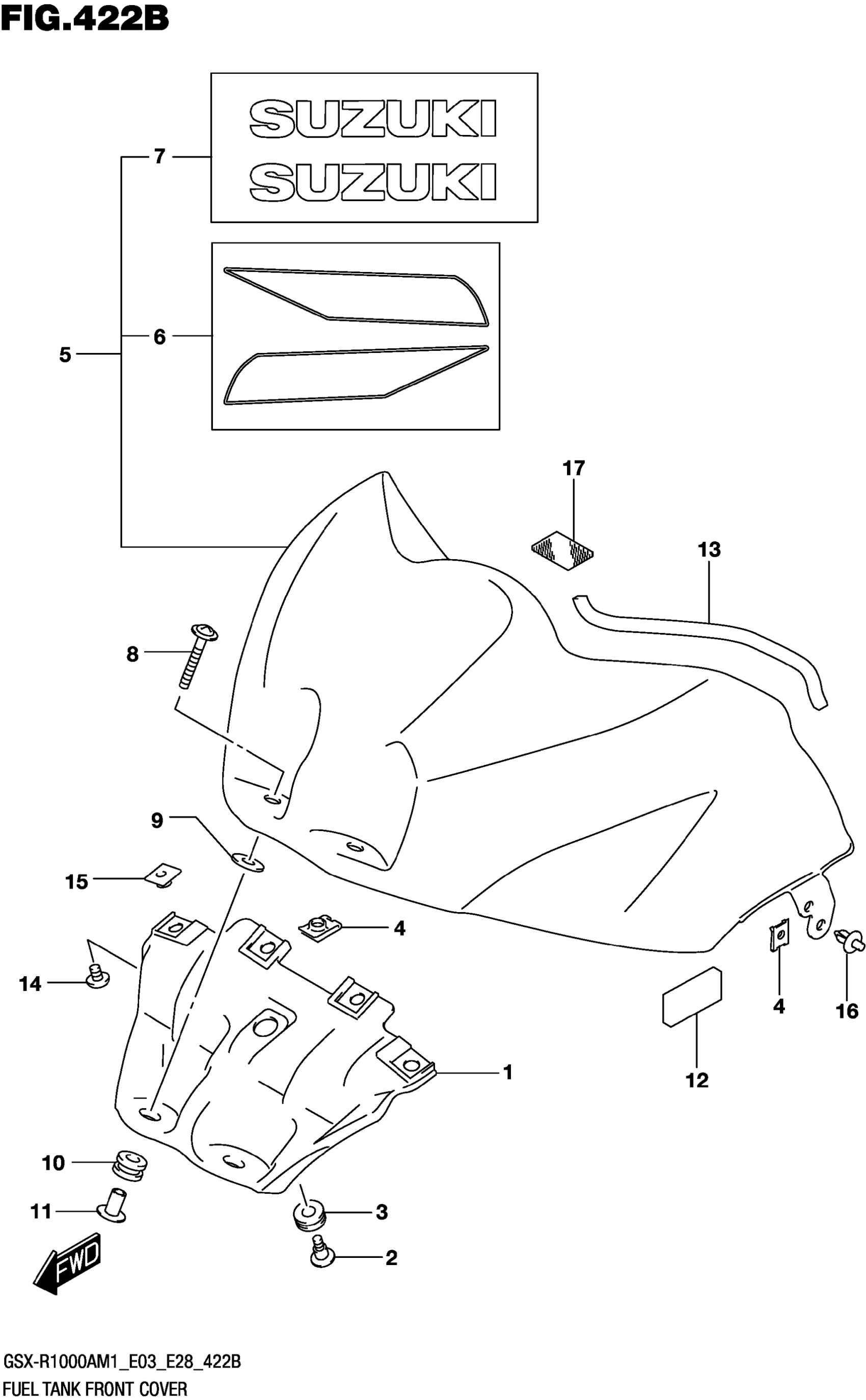

Suzuki GSX-R1000AM1 (2021) FUEL TANK FRONT COVER (GSX-R1000RA) Diagram
