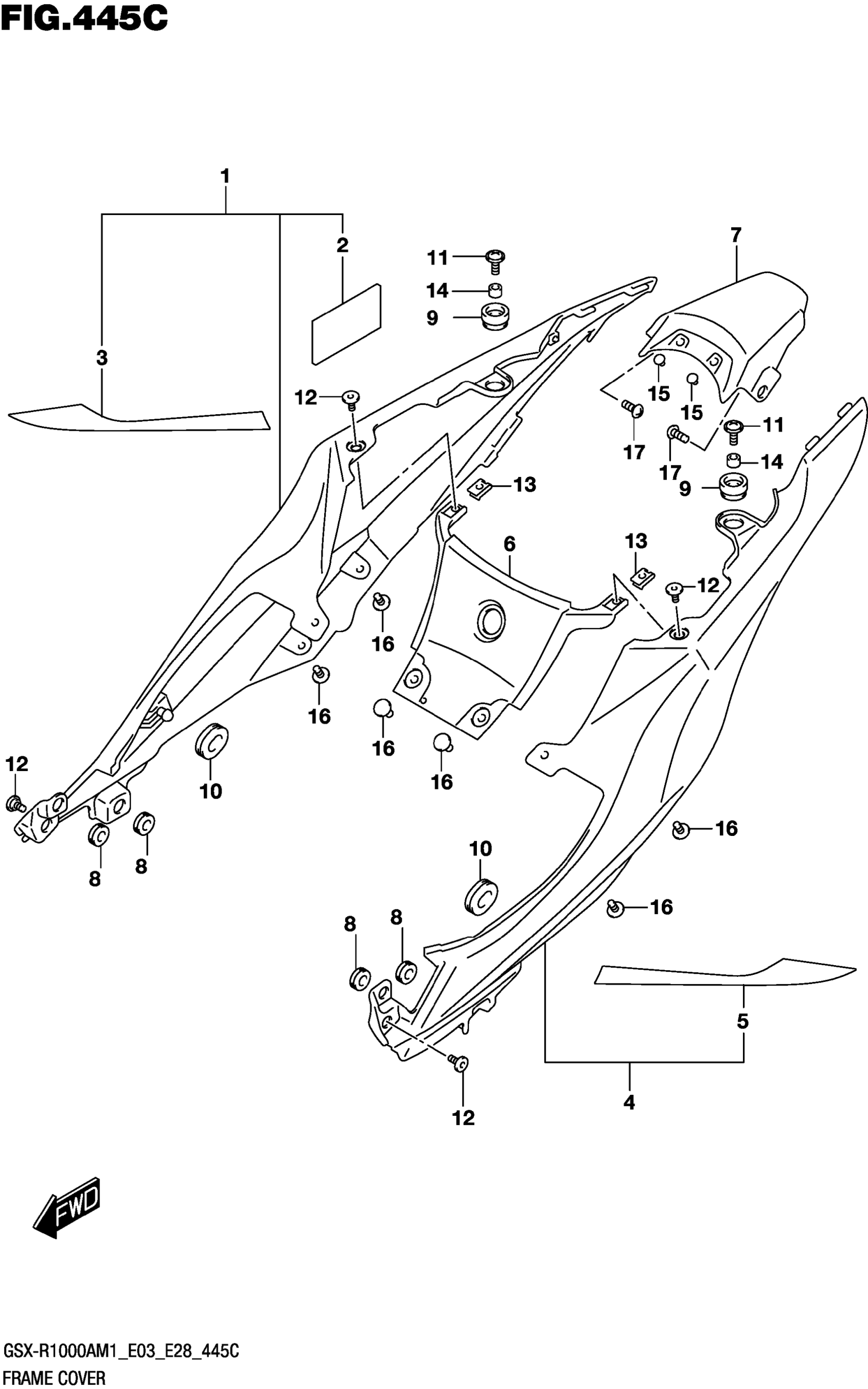

Suzuki GSX-R1000AM1 (2021) FRAME COVER (GSX-R1000ZA) Diagram

#

Description
Price

1

COVER,FRAME RH (SILVER)

47110-17K90-YMD

Unavailable

2

CUSHION (45X100X3)

33652-17K10

$3.88

3

.TAPE,FRAME COVER RH (BLUE)

68135-17K50-YSF

Unavailable

4

COVER,FRAME LH (SILVER)

47210-17K90-YMD

Unavailable

5

.TAPE,FRAME COVER LH (BLUE)

68145-17K50-YSF

Unavailable

6

COVER,FRAME CENTER FRONT

47311-17K00

$30.67

7

COVER,FRAME CTR RR (SILVER) | R)

47411-17K00-YMD

$60.17

8

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$4.16

9

CUSHION (10X24X13)

47312-37H10

$2.91

10

CUSHION

94478-14J00

$5.92

11

SCREW (6X16)

09139-06139

$3.23

12

SCREW (5X13)

09139-05092

$2.25

13

NUT (M5)

09148-05052

$3.37

14

SPACER (6.5X10X7)

09180-06283

$1.91

15

PLUG (OD:10)

09250-06017

$2.71

16

CLIP

09409-06328

$3.23

17

SCREW

03541-0516A

$1.49
