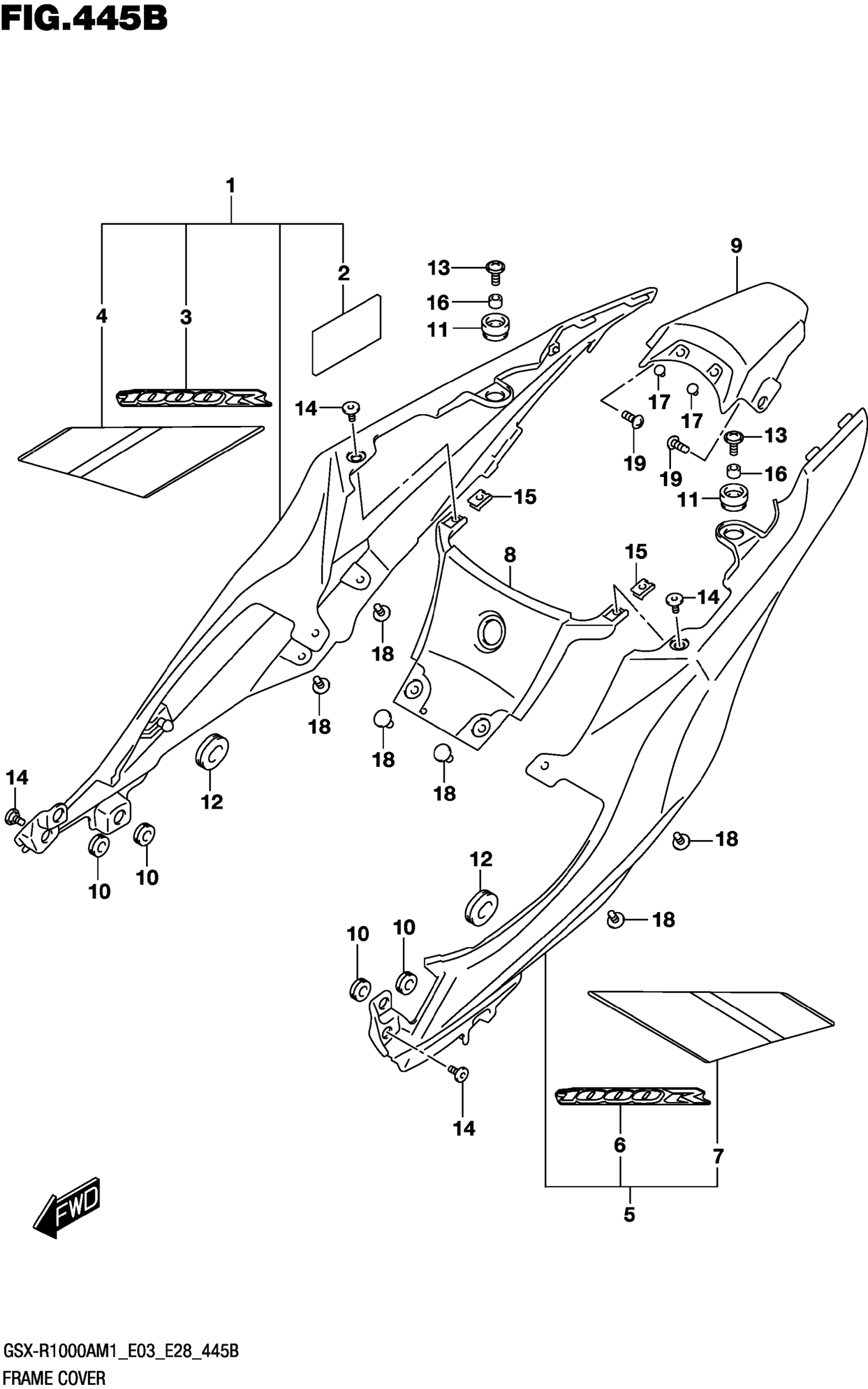

Suzuki GSX-R1000AM1 (2021) FRAME COVER (GSX-R1000RA) Diagram

#

Description
Price

1-1

COVER,FRAME RH (BLACK) | BODY COLOR:YKV

47110-17KB0-YKV

$164.60

1-2

COVER,FRAME,R (BLACK) | BODY COLOR:4TX

47110-17KB0-4TX

$164.60

2

CUSHION (45X100X3)

33652-17K10

$4.38

3-1

.EMBLEM,FRAME COVER (BLACK) | BODY COLOR:YKV

68131-17K00-CRU

$17.33

3-2

.EMBLEM,FRAME COVER (BLACK,SI | VER,ORANGE) BODY COLOR:4TX

68131-17K00-B9Q

$16.82

4-1

.TAPE,FRAME COVER RH (BLACK) | BODY COLOR:YKV

68135-17K70-CRU

$22.15

4-2

.TAPE,FRAME COVER,R (ORANGE,S | ILVER,BLACK) BODY COLOR:4TX

68135-17K70-B9N

$21.47

5-1

TAPE,FRAME COVER RH (BLACK) | BODY COLOR:YKV

47210-17KB0-YKV

$164.60

5-2

COVER,FRAME,L (BLACK) | BODY COLOR:4TX

47210-17KB0-4TX

$164.60

6-1

.EMBLEM,FRAME COVER (BLACK) | BODY COLOR:YKV

68131-17K00-CRU

$17.33

6-2

.EMBLEM,FRAME COVER (BLACK,SI | VER,ORANGE) BODY COLOR:4TX

68131-17K00-B9Q

$16.82

7-1

.TAPE,FRAME COVER LH (BLACK) | BODY COLOR:YKV

68145-17K70-CRU

$22.15

7-2

.TAPE,FRAME COVER,L (ORANGE,S | ILVER,BLACK) BODY COLOR:4TX

68145-17K70-B9N

$21.47

8

COVER,FRAME CENTER FRONT

47311-17K00

$34.62

9

COVER,FRAME CTR RR (BLACK)

47411-17K00-YKV

$79.38

10

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$3.92

11

CUSHION (10X24X13)

47312-37H10

$2.80

12

CUSHION

94478-14J00

$5.42

13

SCREW (6X16)

09139-06139

$2.92

14

SCREW (5X13)

09139-05092

$2.22

15

NUT (M5)

09148-05052

$3.04

16

SPACER (6.5X10X7)

09180-06283

$1.89

17

PLUG (OD:10)

09250-06017

$2.74

18

CLIP

09409-06328

$2.92

19

SCREW

03541-0516A

$1.37
