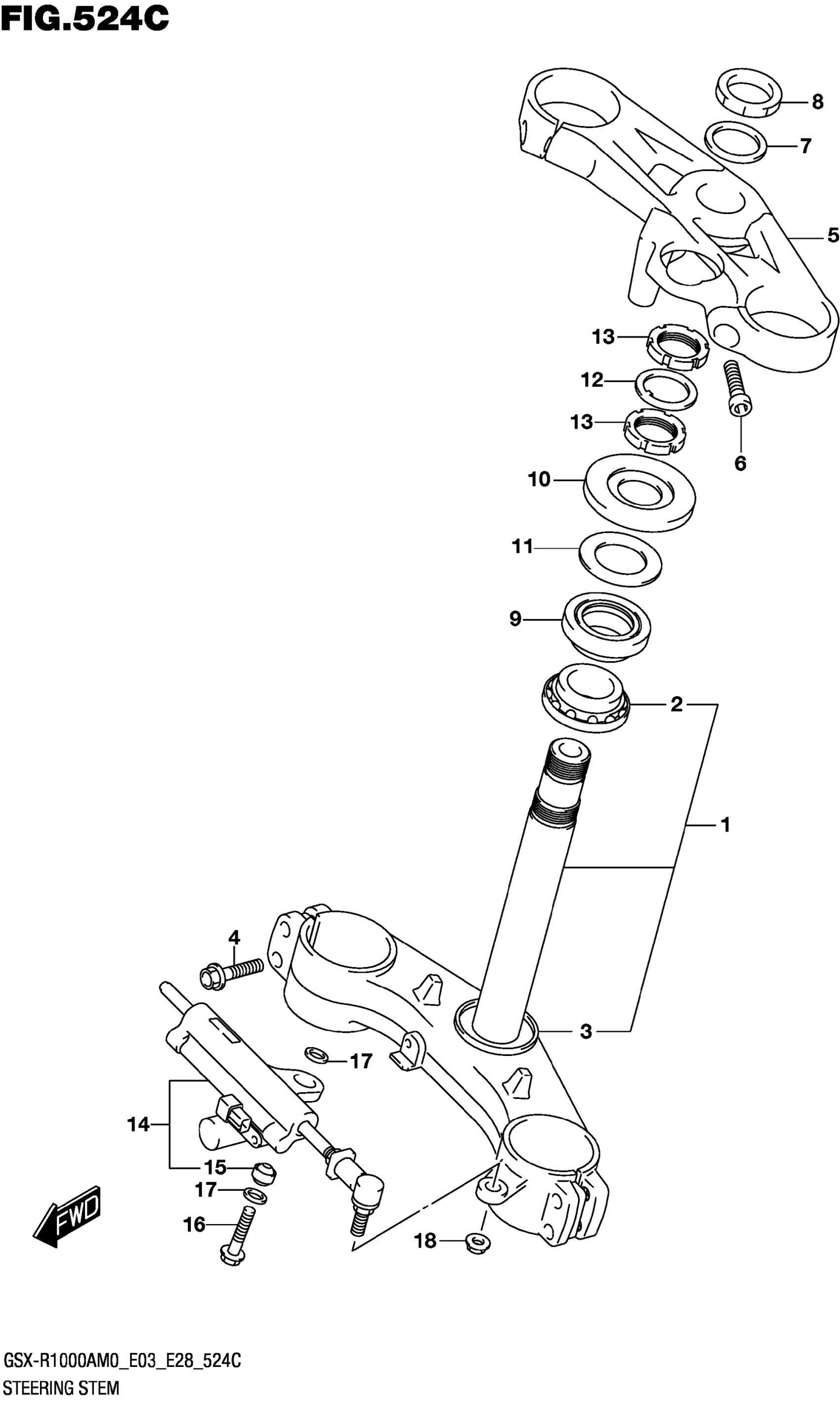

Suzuki GSX-R1000AM0 (2020) STEERING STEM (GSX-R1000RZA) Diagram

#

Description
Price

1

STEM,STEERING

51410-17K00

$745.57

2

.BEARING (30X55X17)

09267-30010

$48.11

3

.SEAL,STEERING LWR (30.1X56X4 | 4)

51644-12C00

$9.44

4

BOLT,HOLDER AXLE (8X40)

51328-27E30

$4.37

5

BRACKET, UPPER

51311-17K00

$446.65

6

BOLT,HOLDER (8X25)

51321-27E30

$4.97

7

WASHER,STEM HEAD

51354-01H00

$7.50

8

NUT,STEM HEAD

51353-47H50

$48.02

9

.BEARING (30X55X17)

09267-30010

$48.11

10

COVER,STEERING UPR

51643-41G00

$8.71

11

.SEAL,STEERING LWR (30.1X56X4 | )

51644-12C00

$9.44

12

WASHER,STEERING STEM

51641-33E00

$6.20

13

NUT,STEERING STEM

51631-33E00

$23.64

14

DAMPER ASSY,STEERING This part replaces 51750-21H30.

51750-21H31

$1,221.72

15

.BEARING (8X17.5X11)

09269-08003

$51.13

16

BOLT (8X35)

09103-08391

$2.50

17

SEAL,PILLOW BALL,DUST

64339-14101

$7.95

18

NUT

08319-3108A

$2.32
