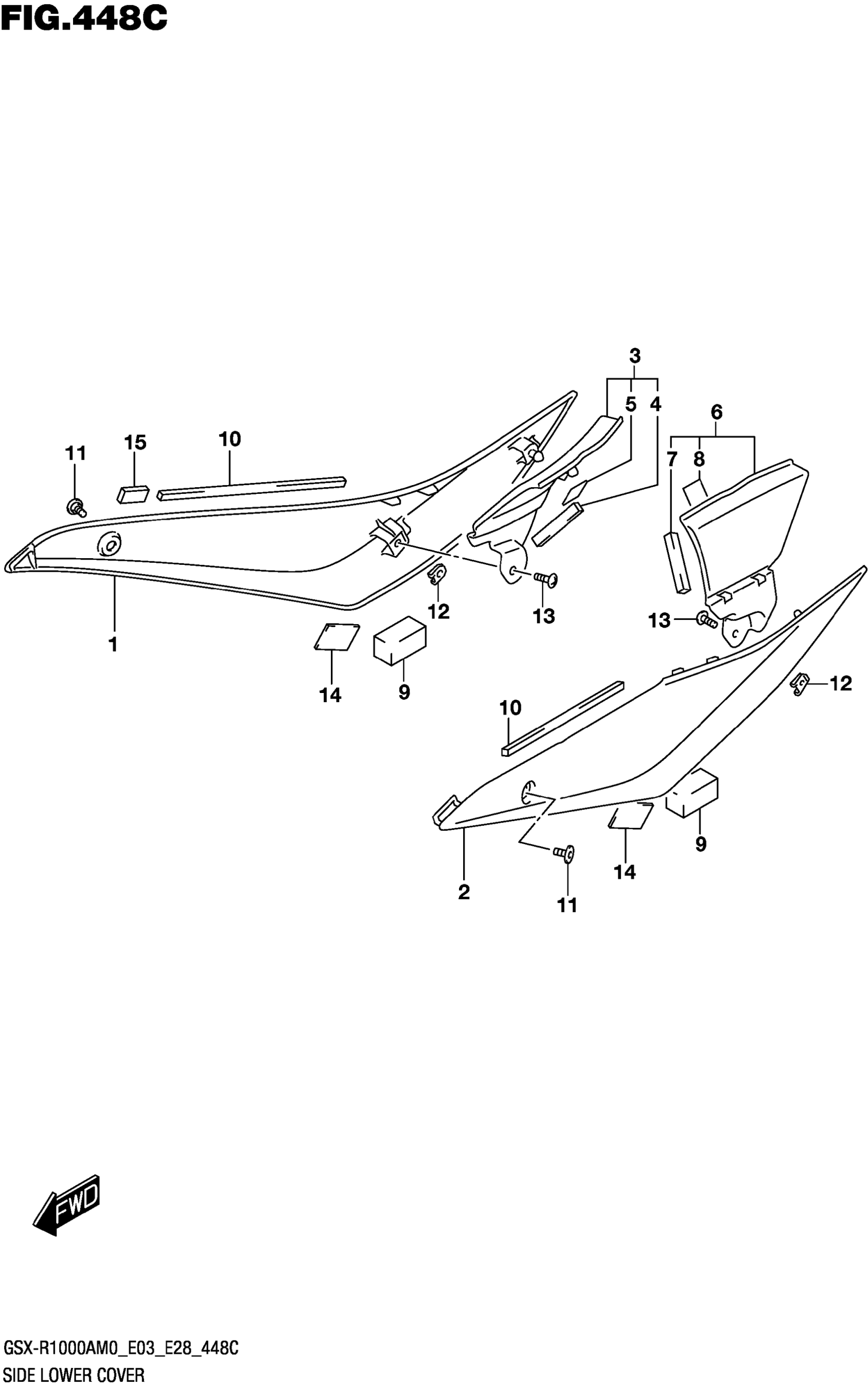

Suzuki GSX-R1000AM0 (2020) SIDE LOWER COVER (GSX-R1000RA) Diagram

COVER,FRAME FRONT,R

47511-17K01

$34.65

COVER,FRAME FRONT,L

47611-17K01

$40.55

COVER,FRAME FR NO.2,R (BLUE) | ) BODY COLOR:YSF

47710-17K00-YSF

$80.02

COVER,FRAME FR NO.2,R (BLACK) | BODY COLOR:JSP

47710-17K00-YVB

$82.03

CUSHION (8X50X8)

47122-17K00

$2.14

.CUSHION (20X20X1)

47123-17K00

$4.34

COVER,FRAME FR NO.2,L (BLUE) | ) BODY COLOR:YSF

47810-17K00-YSF

$68.03

COVER,FRAME FR NO.2,L (BLACK) | BODY COLOR:JSP

47810-17K00-YVB

$82.03

CUSHION (8X50X8)

47122-17K00

$2.14

.CUSHION (20X20X1)

47123-17K00

$4.34

CUSHION,RR COMB (20X40X20)

33652-38F20

$2.61

CUSHION,FRAME COVER UPPER (L:

47121-17K00

$2.92

SCREW (5X13)

09139-05092

$2.25

NUT (M5)

09148-05045

$2.36

SCREW

03541-0516A

$1.49

FASTENER (33X25X2.6)

44572-13G00

$11.07

CUSHION (10X30X6) | )

33652-47F00

$3.70
