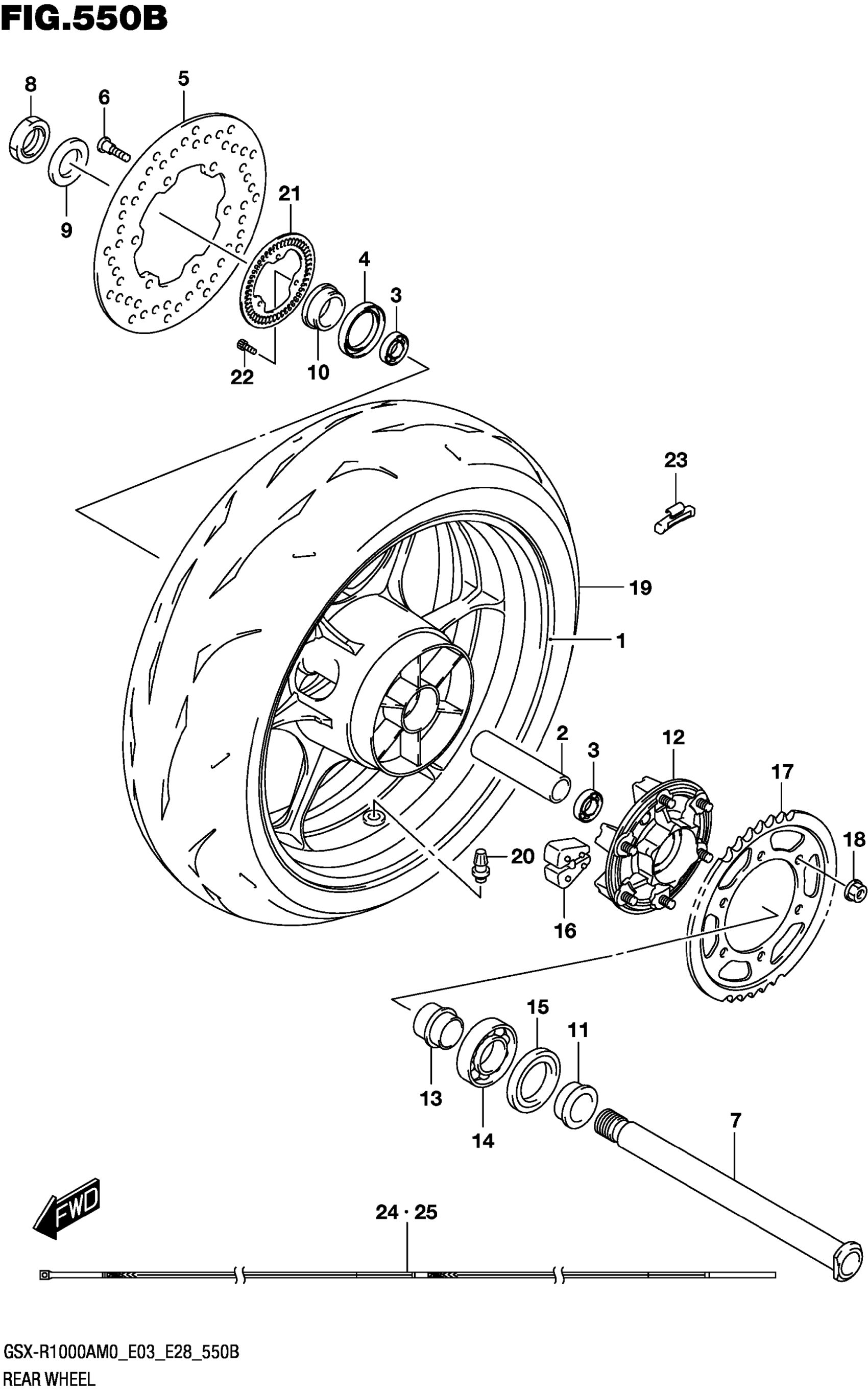

Description

Price

1

WHEEL,REAR (17M/CXMT6.00,BLAC | )

64111-17K00-019

$1,014.77

2

SPACER,RR HUB BEARING

64731-35F10

$51.42

3

BEARING (28X52X12) This part replaces 09262-28052.

09262-28062

$26.38

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

5

DISC,REAR BRAKE

69211-47H00

$91.43

6

BOLT (8X21)

09106-08160

$3.57

7

AXLE,RR

64711-49G00

$143.45

8

NUT,REAR AXLE

64721-17K00

$15.94

9

WASHER (25.2X42X3.2)

09160-25070

$4.77

10

SPACER,REAR AXLE,R

64741-35F10

$13.49

11

SPACER,REAR AXLE,L

64751-47H10

$18.73

12

DRUM,REAR SPROCKET

64610-04K00

$254.32

13

RETAINER,RR SPROCKET DRUM

64733-35F00

$26.61

14

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$39.40

15

SEAL,OIL (39X65X7)

09285-39001

$10.62

16

ABSORBER,REAR HUB SHOCK

64651-17K00

$19.68

17

SPROCKET,RR (45T-525)

64511-15J00

$144.77

18

NUT

08319-3110A

$2.73

19

TIRE,FRONT (190/55ZR17M/C 75W This part replaces 65110-17K20.

65110-17K21

$304.79

20

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

21

RING,SPEED SENSOR RR (50T)

64162-47H00

$41.20

22

BOLT

07130-0512A

$2.19

23-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

23-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

23-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

24

TAPE,WHEEL,RH (RED,BLACK)

68251-14J00-69L

$56.27

25

TAPE,WHEEL,LH (RED,BLACK)

68252-14J00-69L
