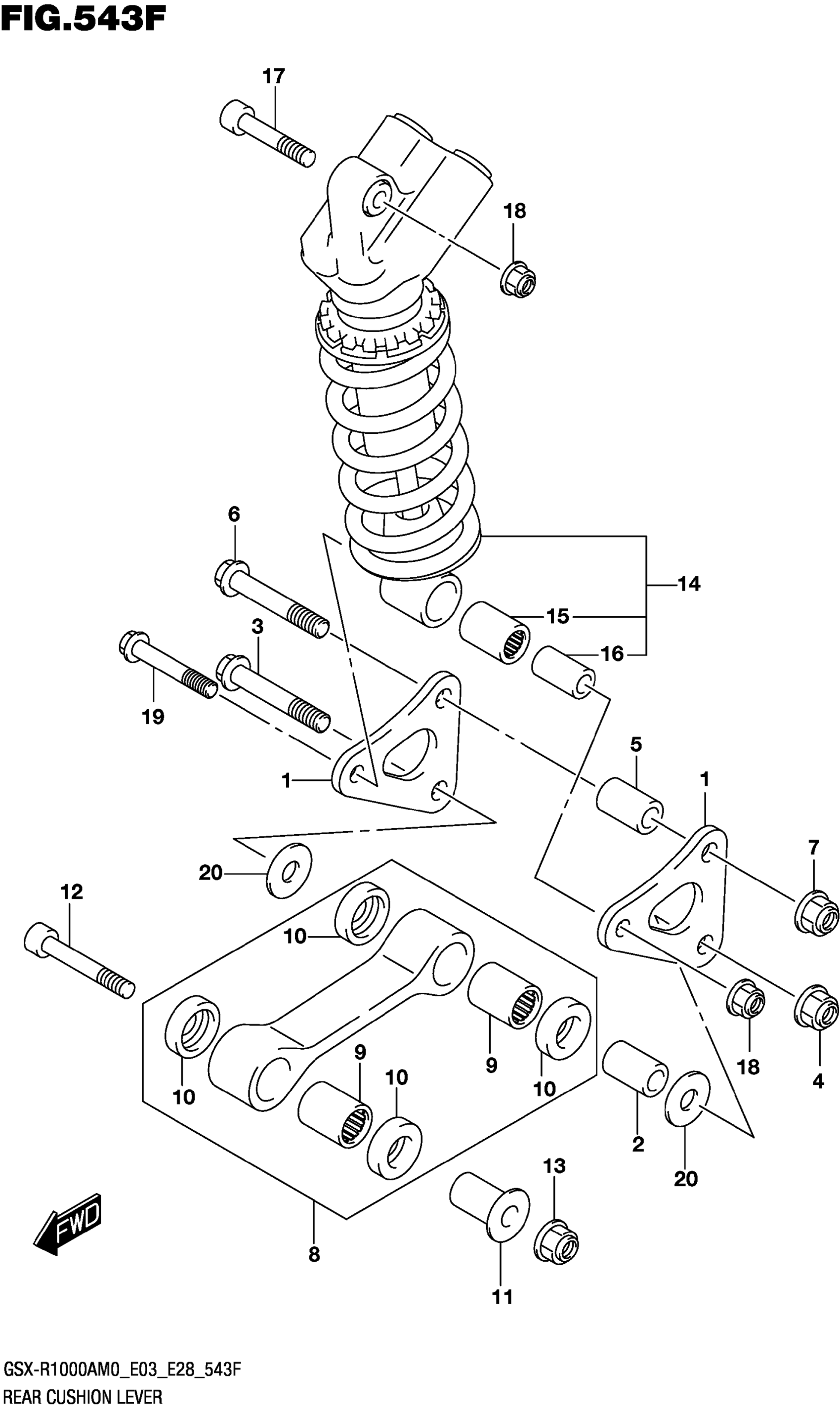

Suzuki GSX-R1000AM0 (2020) REAR CUSHION LEVER (GSX-R1000RZA) Diagram

#

Description
Price

1

LEVER,REAR CUSHION

62611-17K00

$24.52

2

SPACER,RR CUSHION LEVER FR (1 | X20X34)

62317-27C10

$16.76

3

BOLT,RR CUSHION LEVER

62658-47H00

$10.75

4

NUT

09159-12056

$7.37

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$21.03

6

BOLT,RR CUSHION LEVER

62658-47H00

$10.75

7

NUT

09159-12056

$7.37

8

ROD SET,RR CUSHION

62600-47820

$104.90

9

.BEARING (20X27X20)

09263-20063

Unavailable

10

SEAL,OIL (20X27X5)

09283-20031

$5.24

11

SPACER,RR CUSHION ROD FR

62647-47H00

$35.28

12

BOLT,RR CUSHION ROD

62658-04K00

$14.37

13

NUT

09159-12056

$7.37

14

ABSORBER ASSY,RR SHOCK (BLACK

62100-17800-019

Unavailable

15

BEARING (17X24X32)

09263-17046

$41.45

16

SPACER,RR SHOCK ABS LWR

62317-47H00

$20.45

17

BOLT,RR SHOCK ABS UPPER

62658-04K10

$14.37

18

NUT (M10)

09159-10115

$3.55

19

BOLT,RR SHOCK ABSORBER LWR (1 | )

62313-47H00

$11.95

20

WASHER (12X34X1.0)

09160-12037

$3.83
