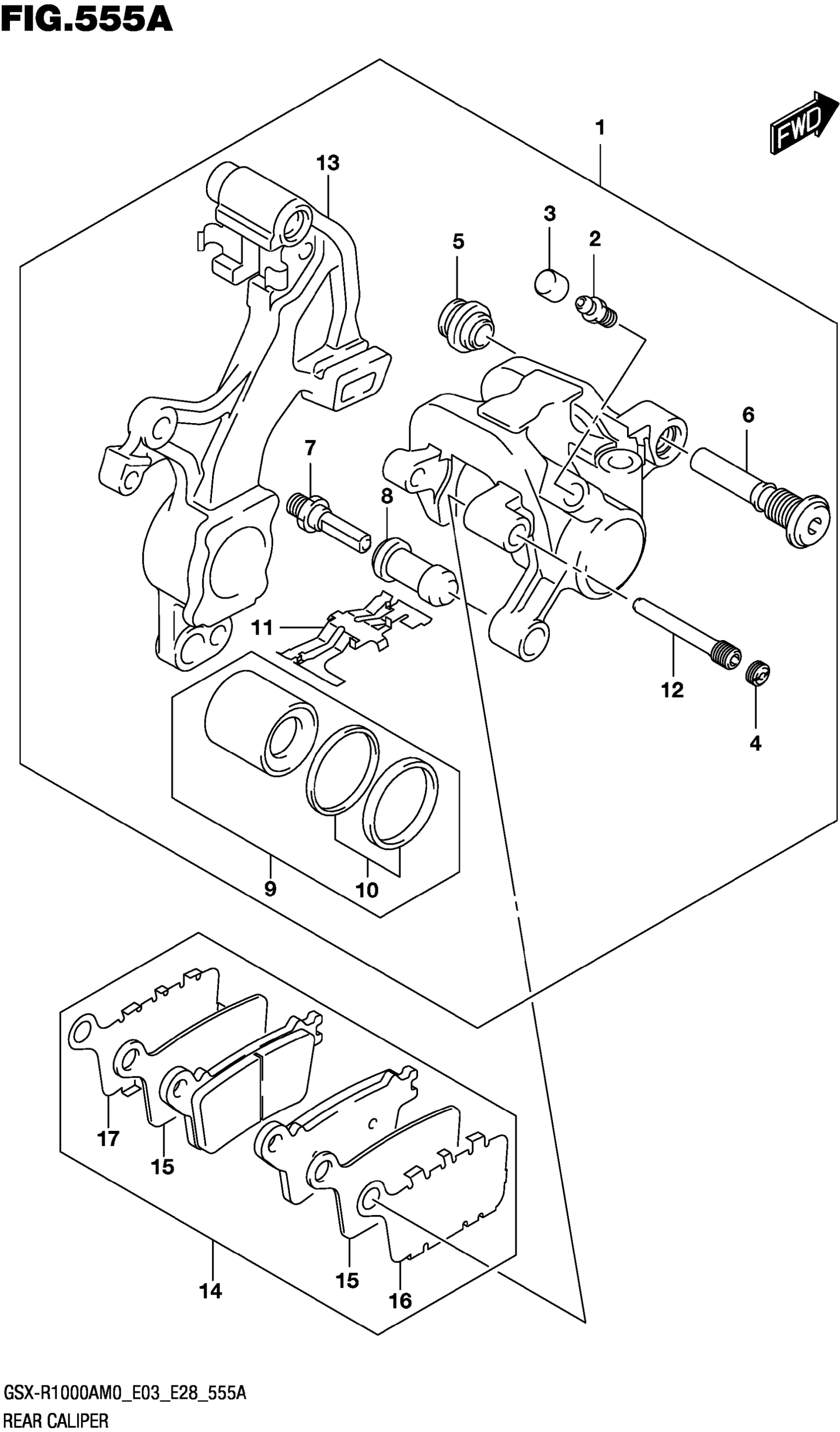

Suzuki GSX-R1000AM0 (2020) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,RR

69100-47H41-999

$342.37

2

.BLEEDER

59121-01A00

$7.99

3

.CAP,BLEEDER

59122-46H00

$4.17

4

.PLUG,PIN

59146-21E10

$5.62

5

.BOOT

59303-14500

$5.06

6

.PIN,BOLT

59305-36E00

$17.14

7

.PIN

59382-14500

$8.43

8

.BOOT

59386-13A00

$7.28

9

.PISTON SET

69100-47810

$144.31

10

..SEAL SET,PISTON

69100-13810

$9.04

11

.SPRING,PAD

69115-17K01

$44.42

12

.PIN,PAD

69141-40F00

$27.76

13

.BRACKET,RR

69150-47H20

$98.57

14

PAD & SHIM SET

69100-47830

$81.13

15

.INSULATOR

69132-47H00

$17.40

16

.RETAINER,PAD

69133-47H00

$15.63

17

.RETAINER,PAD

69134-47H00

$15.63
