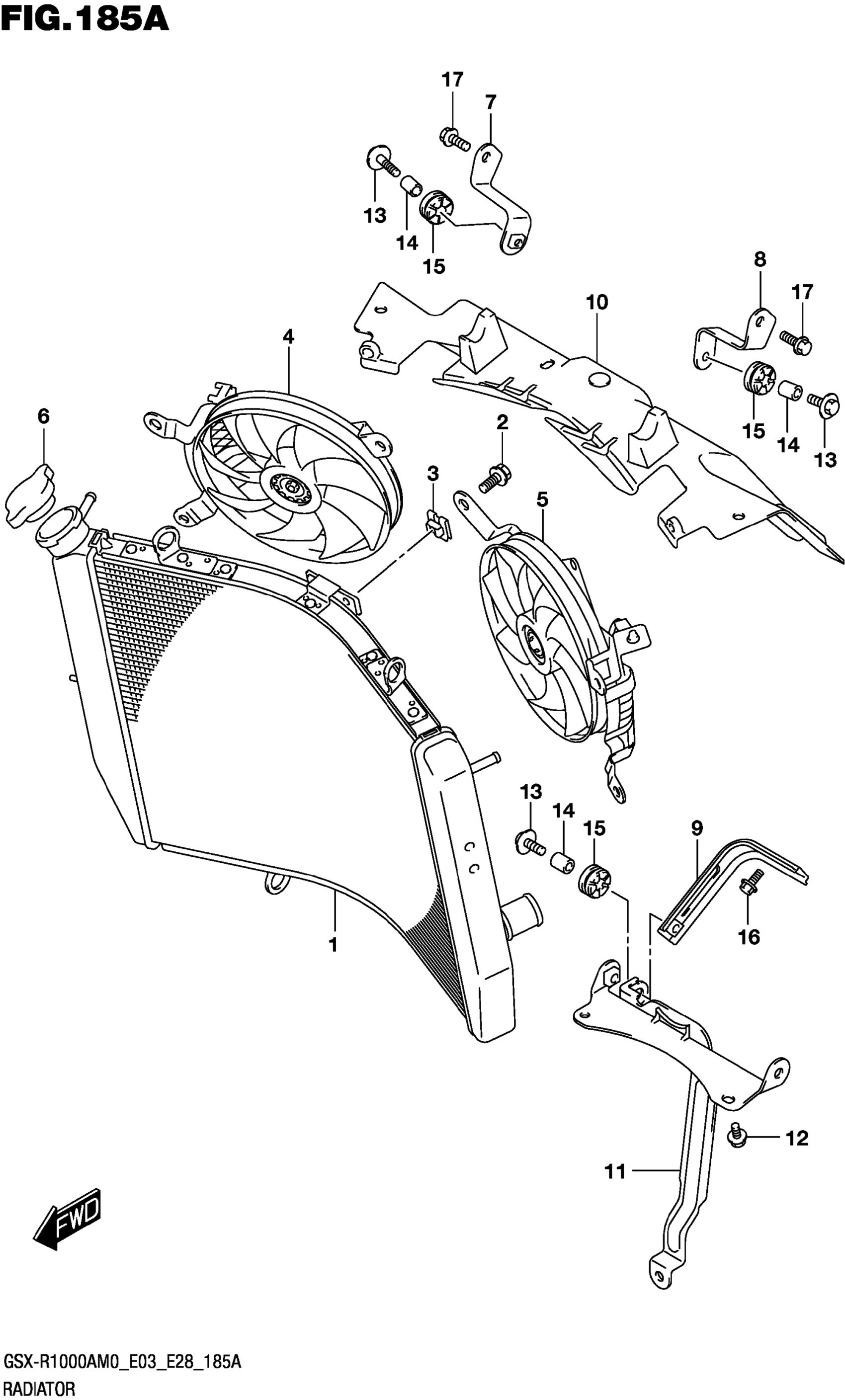

Suzuki GSX-R1000AM0 (2020) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY,WATER This part replaces 17710-17K00.

17710-17K01

$835.55

2

BOLT, FAN ASSY

17711-08J00

$4.73

3

NUT, FAN ASSY

17712-40F00

$4.68

4

FAN ASSY,RADIATOR,R

17810-17K00

$287.80

5

FAN ASSY,RADIATOR,L

17820-17K00

$287.80

6

CAP,RADIATOR (1.1)

17730-08J00

$42.50

7

BRACKET,RADIATOR UPPER,R

17741-17K00

$10.80

8

BRACKET,RADIATOR UPPER,L

17742-17K00

$12.70

9

BRACKET,RADIATOR LOWER,R

17750-17K00

$18.00

10

SHIELD,RADIATOR HEAT

17771-17K00

$44.08

11

BRACKET,RDTR SUPPORT

17790-17K00

$32.05

12

BOLT (6X10)

09103-06307

$3.27

13

BOLT (6X25)

09118-06097

$2.50

14

SPACER (6.5X10X12)

09180-06290

$2.35

15

CUSHION

09320-10051

$2.99

16

BOLT

01550-0612A

$1.97

17

BOLT

01550-0616A

$1.97
