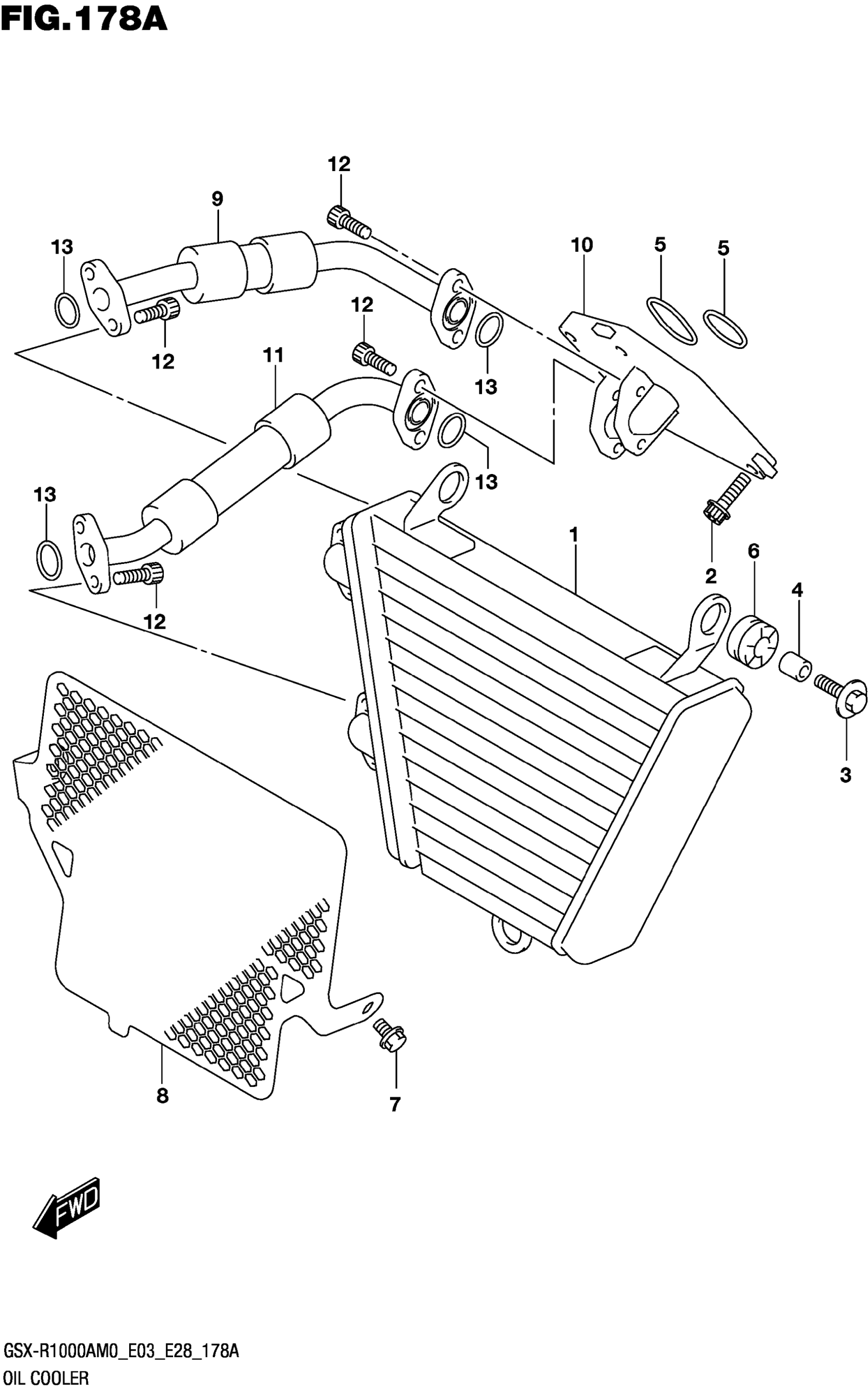

Suzuki GSX-R1000AM0 (2020) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY,OIL

16600-47H20

$764.80

2

BOLT

09116-06514

$3.02

3

BOLT (6X25)

09118-06122

$3.90

4

SPACER (6.5X10X12)

09180-06290

$2.35

5

O-RING

09280-33006

$7.40

6

CUSHION

09320-10051

$2.99

7

BOLT

01550-0610A

$1.97

8

GUARD,OIL COOLER

16651-17K00

$59.43

9

HOSE,OIL COOLER INLET

16460-17K00

$126.32

10

PLATE,OIL HOSE

16469-17K00

$133.13

11

HOSE,OIL COOLER OUTLET

16470-17K00

$126.32

12

BOLT (6X16)

09106-06073

$2.39

13

O-RING (D:2.4,ID:16)

09280-15015

$4.90
