Description

Price

1-1

WHEEL,FRONT (17M/CXMT3.50,BLA | K) BODY COLOR:YSF

54111-17K00-019

$761.93

1-2

WHEEL,FRONT (17M/CXMT3.50,RED | BODY COLOR:JSP

54111-17K00-QGY

$817.77

2

SPACER,FR HUB BEARING

54731-35F10

$37.45

3

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

$24.28

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE,FR

54711-47H00

$155.15

6

NUT,FR AXLE

54712-47H00

$41.53

7

SPACER,FR AXLE,R

54751-41G10

$19.66

8

DISC,FRONT BRAKE

59210-17K01

$468.45

9

RING,SPEED SENSOR FR (48T)

54162-47H00

$114.17

10

BOLT (6X23)

09106-06134

$3.18

11

TIRE,FRONT (120/70ZR17M/C 58W This part replaces 55110-17K20.

55110-17K21

$181.32

12

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

13-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

13-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

13-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

14

TAPE,WHEEL,RH (YELLOW,BLACK) | BODY COLOR:YSF

68251-14J00-G7Z

$36.45

15

TAPE,WHEEL,LH (YELLOW,BLACK) | BODY COLOR:YSF

68252-14J00-G7Z

$42.87

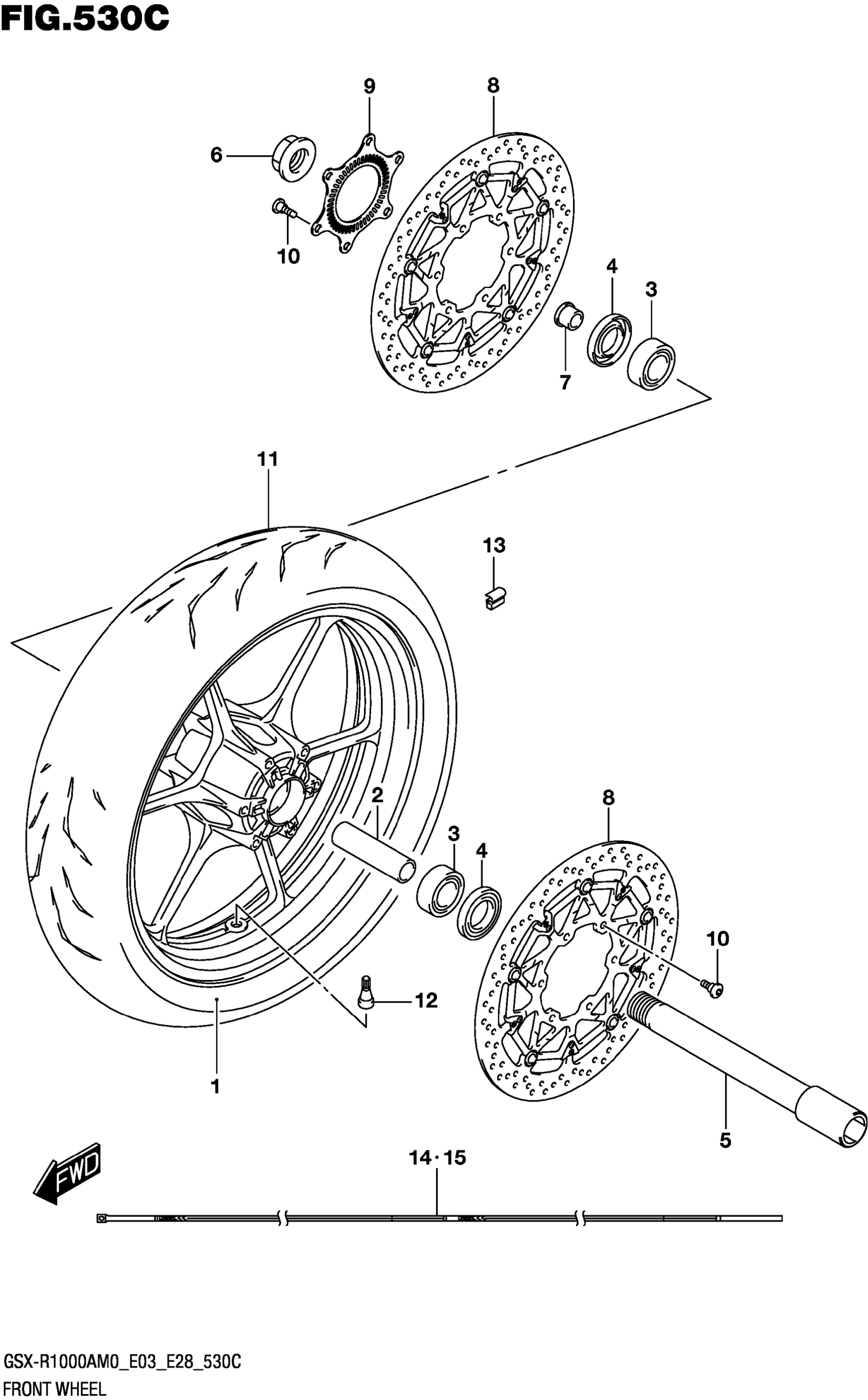

Suzuki GSX-R1000AM0 (2020) FRONT WHEEL (GSX-R1000RA) Diagram
