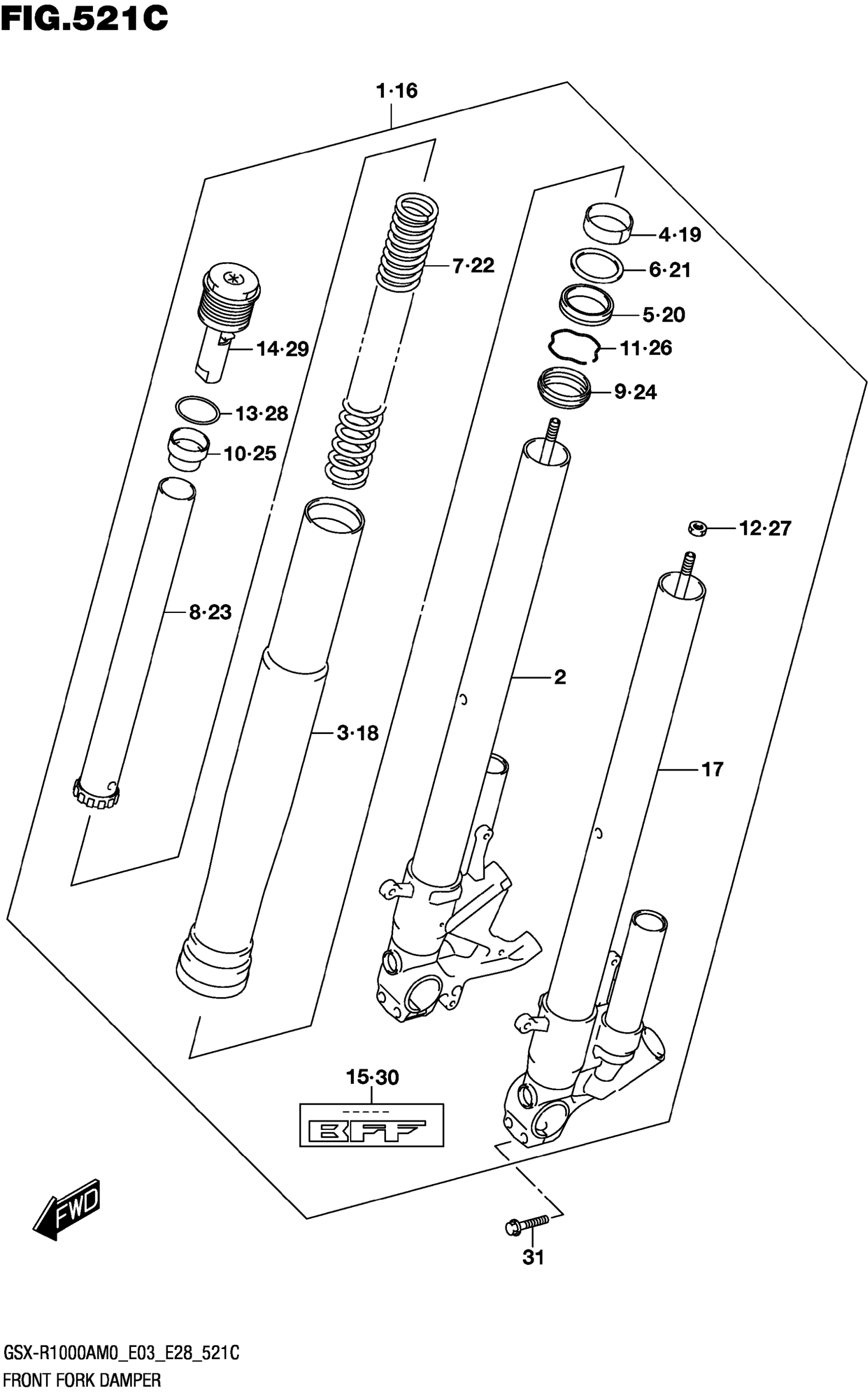

Suzuki GSX-R1000AM0 (2020) FRONT FORK DAMPER (GSX-R1000RZA) Diagram

#

Description
Price

1

DAMPER ASSY,FR,RH

51103-17K40

Unavailable

2

.TUBE,INNER,RH

51110-17K40

$2,697.48

3

.TUBE,OUTER

51131-17K20

$625.35

4

.BUSH, GUIDE

51152-47H00

$14.20

5

.SEAL,OIL

51153-27G00

$23.07

6

.SPACER,SEAL

51168-29G00

$6.52

7

.SPRING

51171-17K10

$129.25

8

.SPRING COLLAR

51198-17K10

$123.03

9

.SEAL, DUST

51173-27G00

$26.58

10

.SPRING COLLAR

51175-17K10

$63.30

11

.RING,STOPPER

51556-38B00

$7.22

12

..NUT

51827-29G00

Unavailable

13

..O-RING

51187-47H00

$6.93

14

.BOLT

51189-17K40

$215.47

15

.LABEL

68281-17K10

$7.52

16

DAMPER ASSY,FR,LH

51104-17K40

Unavailable

17

.TUBE,INNER,L

51120-17K40

$2,697.48

18

.TUBE,OUTER

51131-17K20

$625.35

19

.BUSH, GUIDE

51152-47H00

$14.20

20

.SEAL,OIL

51153-27G00

$23.07

21

.SPACER,SEAL

51168-29G00

$6.52

22

.SPRING

51171-17K10

$129.25

23

.SPRING COLLAR

51198-17K10

$123.03

24

.SEAL, DUST

51173-27G00

$26.58

25

.SPRING COLLAR

51175-17K10

$63.30

26

.RING,STOPPER

51556-38B00

$7.22

27

..NUT

51827-29G00

Unavailable

28

..O-RING

51187-47H00

$6.93

29

.BOLT

51189-17K40

$215.47

30

.LABEL

68281-17K10

$7.52

31

BOLT

51321-36F00

$5.95
