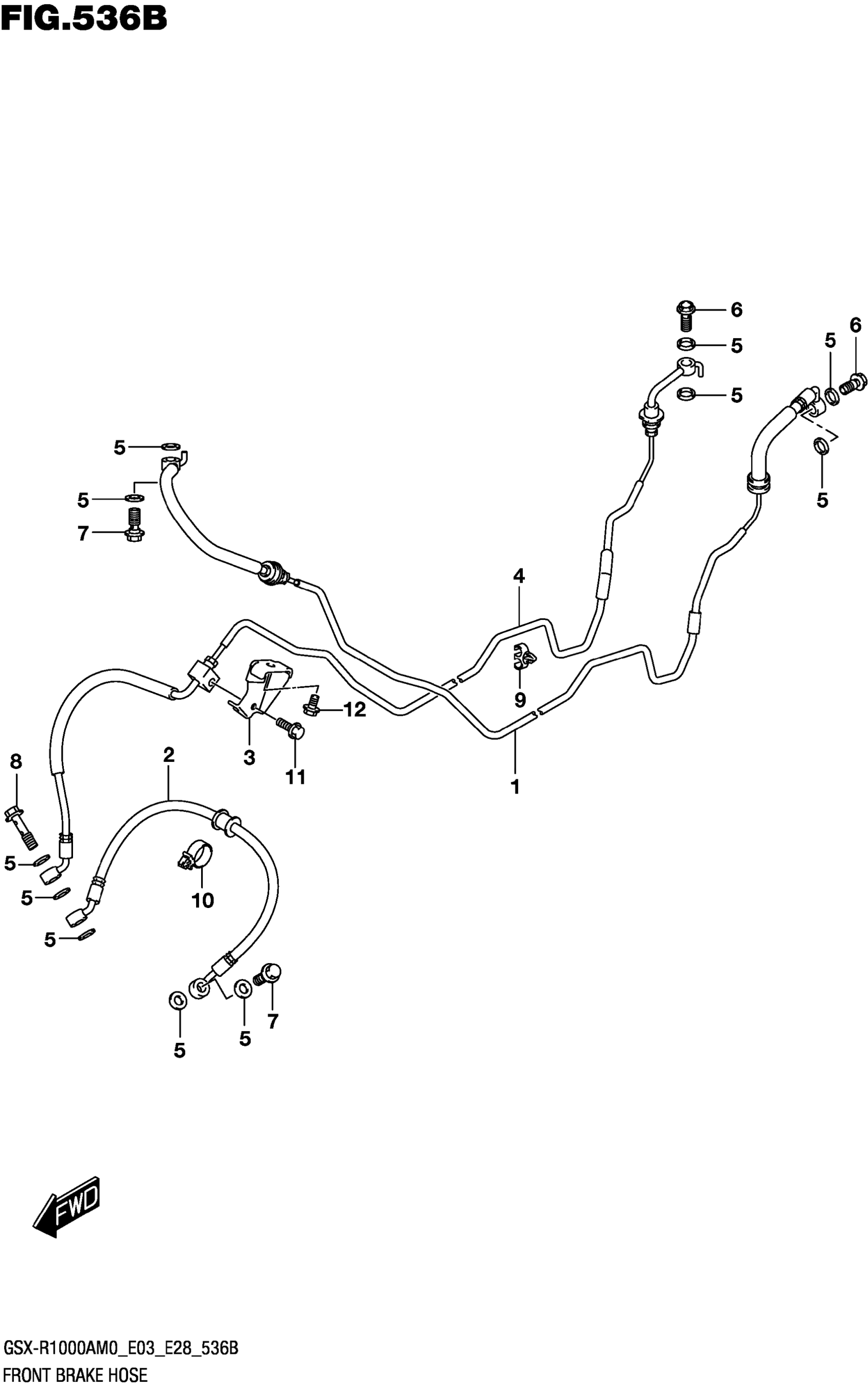

Suzuki GSX-R1000AM0 (2020) FRONT BRAKE HOSE (GSX-R1000RA,GSX-R1000RZA) Diagram

#

Description
Price

1

HOSE ASSY,FR MASTER TO UNIT

59200-17K41

$230.75

2

HOSE,CLPR R TO CLPR,L

59240-17K41

$160.28

3

CLAMP,FRONT BRAKE HOSE

59270-17K00

$26.23

4

HOSE ASSY,UNIT TO FR CLPR

59400-17K61

$256.37

5

WASHER (10X15X1.5)

09161-10009

$1.83

6

UNION (10X1.25X22)

09360-10062

$5.81

7

UNION This part replaces 09360-10042.

09360-10062

$5.81

8

UNION

09360-10069

$6.75

9

CLAMP

09403-07409

Unavailable

10

CLAMP

09403-16412

$3.08

11

BOLT

01547-0612A

$2.01

12

BOLT

01550-0612A

$1.97
