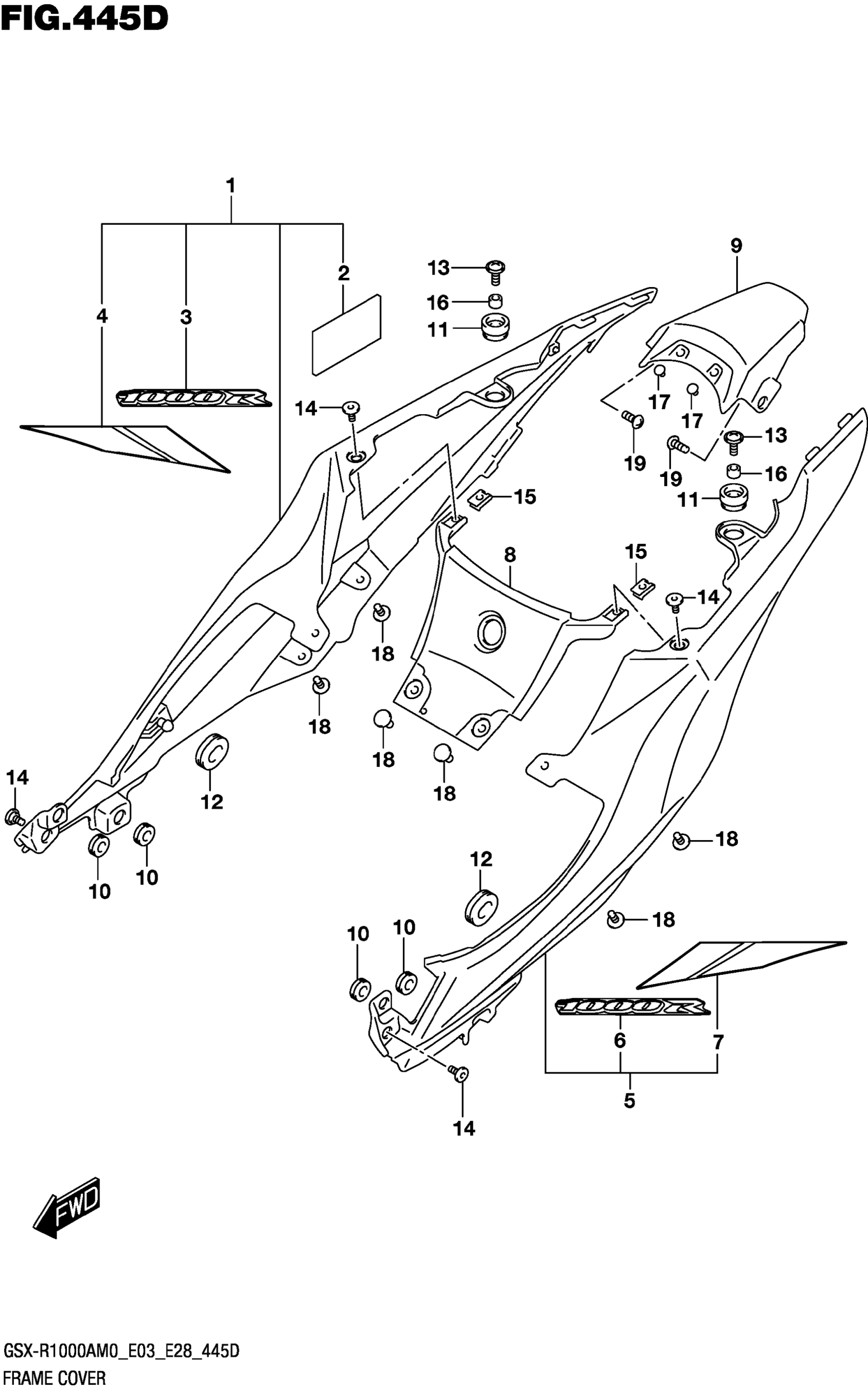

Suzuki GSX-R1000AM0 (2020) FRAME COVER (GSX-R1000RA) Diagram

#

Description
Price

1-1

COVER,FRAME,RH (BLUE) | BODY COLOR:YSF

47110-17K80-YSF

$183.08

1-2

COVER,FRAME,RH (RED) | BODY COLOR:JSP

47110-17K80-YVZ

$183.08

2

CUSHION (45X100X3)

33652-17K10

$4.38

3-1

.EMBLEM,FRAME COVER (BLUE,WHI | E,ORANGE) BODY COLOR:YSF

68131-17K00-BJ8

$14.09

3-2

.EMBLEM,FRAME COVER (ORANGE,W | ITE,BLACK) BODY COLOR:JSP

68131-17K00-BWY

Unavailable

4-1

.TAPE,FRAME COVER,R (WHITE,BL | E,YELLOW) BODY COLOR:YSF

68135-17K40-A3F

$30.72

4-2

.TAPE,FRAME COVER,R (BLACK,GR | Y,RED) BODY COLOR:JSP

68135-17K40-BPA

Unavailable

5-1

COVER,FRAME,LH (BLUE) | BODY COLOR:YSF

47210-17K80-YSF

$183.08

5-2

COVER,FRAME,LH (RED) | BODY COLOR:JSP

47210-17K80-YVZ

$179.72

6-1

.EMBLEM,FRAME COVER (BLUE,WHI | E,ORANGE) BODY COLOR:YSF

68131-17K00-BJ8

$14.09

6-2

.EMBLEM,FRAME COVER (ORANGE,W | ITE,BLACK) BODY COLOR:JSP

68131-17K00-BWY

Unavailable

7-1

.TAPE,FRAME COVER,L (WHITE,BL | E,YELLOW) BODY COLOR:YSF

68145-17K40-A3F

$30.72

7-2

.TAPE,FRAME COVER,L (BLACK,GR | Y,RED) BODY COLOR:JSP

68145-17K40-BPA

Unavailable

8

COVER,FRAME CENTER FRONT

47311-17K00

$34.62

9-1

COVER,FRAME CTR RR (BLUE) | BODY COLOR:YSF

47411-17K00-YSF

$76.47

9-2

COVER,FRAME CENTER REAR (RED) | BODY COLOR:JSP

47411-17K00-YVZ

Unavailable

10

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$3.92

11

CUSHION (10X24X13) | 4X13) This part replaces 47312-37H00.

47312-37H10

$2.80

12

CUSHION

94478-14J00

$5.42

13

SCREW (6X16)

09139-06139

$2.92

14

SCREW (5X13)

09139-05092

$2.22

15

NUT (M5)

09148-05052

$3.04

16

SPACER (6.5X10X7)

09180-06283

$1.89

17

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.74

18

CLIP

09409-06328

$2.92

19

SCREW

03541-0516A

$1.37
