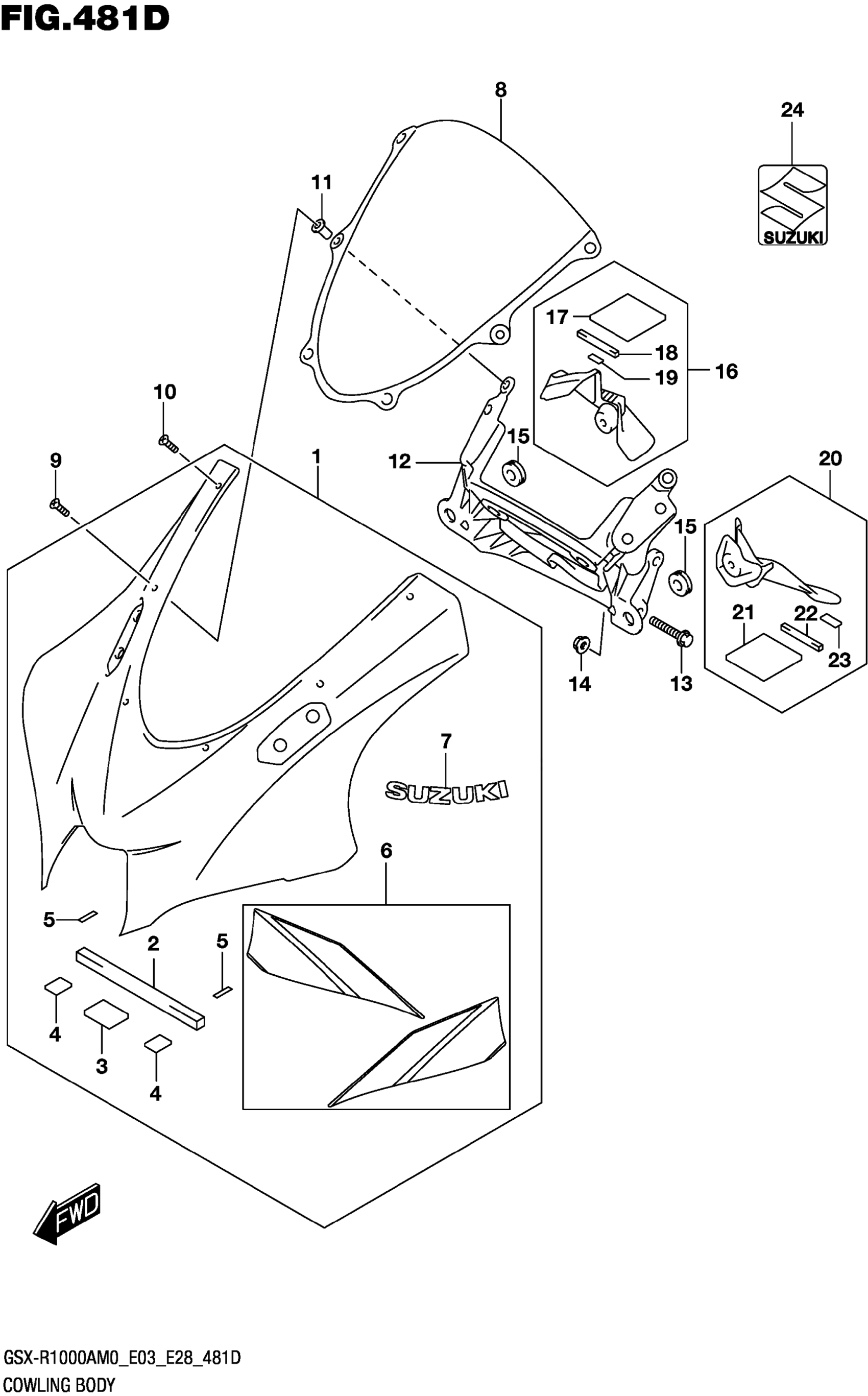

Suzuki GSX-R1000AM0 (2020) COWLING BODY (GSX-R1000RA) Diagram

#

Description
Price

1-1

COWLING,BODY (BLUE) | BODY COLOR:YSF

94410-17K40-YSF

$360.67

1-2

COWLING,BODY (BLACK) | BODY COLOR:JSP

94410-17K40-YVB

$375.25

2

.CUSHION,FUEL TANK (L:160)

44192-44H00

$3.38

3

FASTENER (25X33X2.6)

44572-02F01

$10.13

4

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.01

5

TAPE,FR TURNSIGNAL (5X20X0.4) | .4)

94443-21H00

$4.47

6-1

.TAPE SET,COWLING BODY (WHITE | BLUE,YELLOW) BODY COLOR:YSF

68270-17K50-A3F

$63.82

6-2

.TAPE SET,COWLING BODY (BLACK | GRAY,RED) BODY COLOR:JSP

68270-17K50-BPA

Unavailable

7-1

.EMBLEM,SUZUKI (WHITE) | BODY COLOR:YSF

68275-17K30-YWW

$21.97

7-2

.EMBLEM,SUZUKI (RED) | BODY COLOR:JSP

68275-17K30-YVZ

Unavailable

8

WINDSCREEN

94611-17K00

$106.78

9

SCREW,WINDSCREEN FRONT

94631-17K00

$4.51

10

SCREW,WINDSCREEN REAR

94621-17K00

$4.46

11

NUT (M5)

09159-05019

$6.44

12

BRACE,COWLING

94511-17K00

$191.37

13

BOLT (8X45)

09103-08207

$2.59

14

NUT

08313-2008A

$2.50

15

CUSHION (8X26X7)

09320-08028

$2.80

16

PANEL,METER,R

94630-17K00

$15.01

17

PROTECTOR (50X50X5) | CUT AS REQUIRED

33652-20C00

$2.80

18

CUSHION (5X50X5) | (5X50X5)

44279-18K00

$5.12

19

PAD (8X20X2)

73415-70A00

$1.50

20

PANEL,METER,L

94640-17K00

$21.15

21

PROTECTOR (50X50X5) | CUT AS REQUIRED

33652-20C00

$2.80

22

CUSHION (5X50X5) | (5X50X5)

44279-18K00

$5.12

23

PAD (8X20X2)

73415-70A00

$1.50

24

EMBLEM,S

68281-47HA0

$7.11
