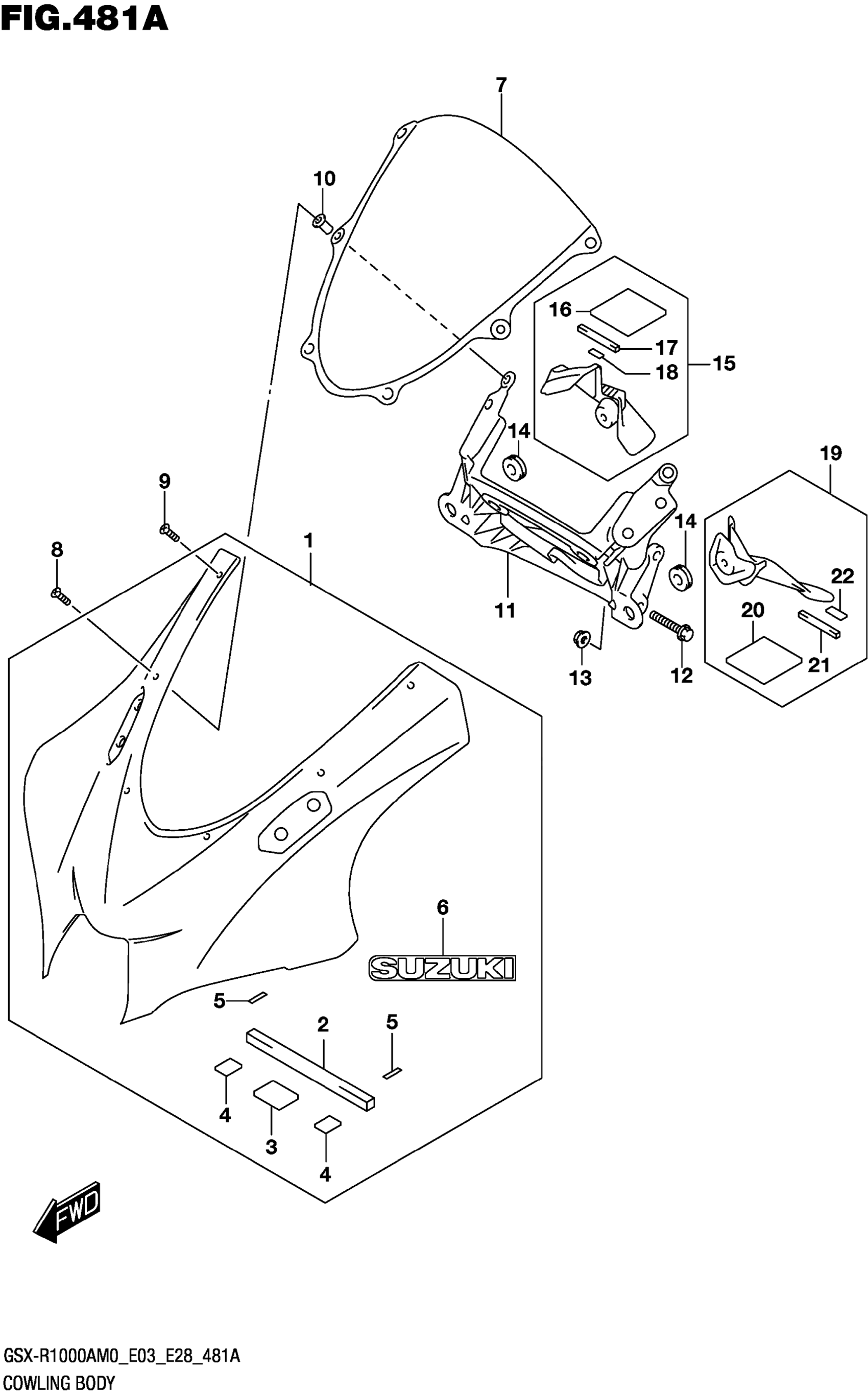

Suzuki GSX-R1000AM0 (2020) COWLING BODY (GSX-R1000A) Diagram

#

Description
Price

1-1

COWLING,BODY (WHITE) | BODY COLOR:AGT

94410-17K30-YWW

$386.03

1-2

COWLING,BODY (BLACK) | BODY COLOR:KGL

94410-17K30-YKV

$364.18

2

.CUSHION,FUEL TANK (L:160)

44192-44H00

$3.38

3

FASTENER (25X33X2.6)

44572-02F01

$10.13

4

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.01

5

TAPE,FR TURNSIGNAL (5X20X0.4) | .4)

94443-21H00

$4.47

6-1

.EMBLEM,SUZUKI (RED,WHITE) | BODY COLOR:AGT

68177-04A00-BV7

Unavailable

6-2

.EMBLEM,SUZUKI (RED,BLACK) | BODY COLOR:KGL

68177-04A00-BFK

Unavailable

7

WINDSCREEN

94611-17K00

$106.78

8

SCREW,WINDSCREEN FRONT

94631-17K00

$4.51

9

SCREW,WINDSCREEN REAR

94621-17K00

$4.46

10

NUT (M5)

09159-05019

$6.44

11

BRACE,COWLING

94511-17K00

$191.37

12

BOLT (8X45)

09103-08207

$2.59

13

NUT

08313-2008A

$2.50

14

CUSHION (8X26X7)

09320-08028

$2.80

15

PANEL,METER,R

94630-17K00

$15.01

16

PROTECTOR (50X50X5) | CUT AS REQUIRED

33652-20C00

$2.80

17

CUSHION (5X50X5) | (5X50X5)

44279-18K00

$5.12

18

PAD (8X20X2)

73415-70A00

$1.50

19

PANEL,METER,L

94640-17K00

$21.15

20

PROTECTOR (50X50X5) | CUT AS REQUIRED

33652-20C00

$2.80

21

CUSHION (5X50X5) | (5X50X5)

44279-18K00

$5.12

22

PAD (8X20X2)

73415-70A00

$1.50
