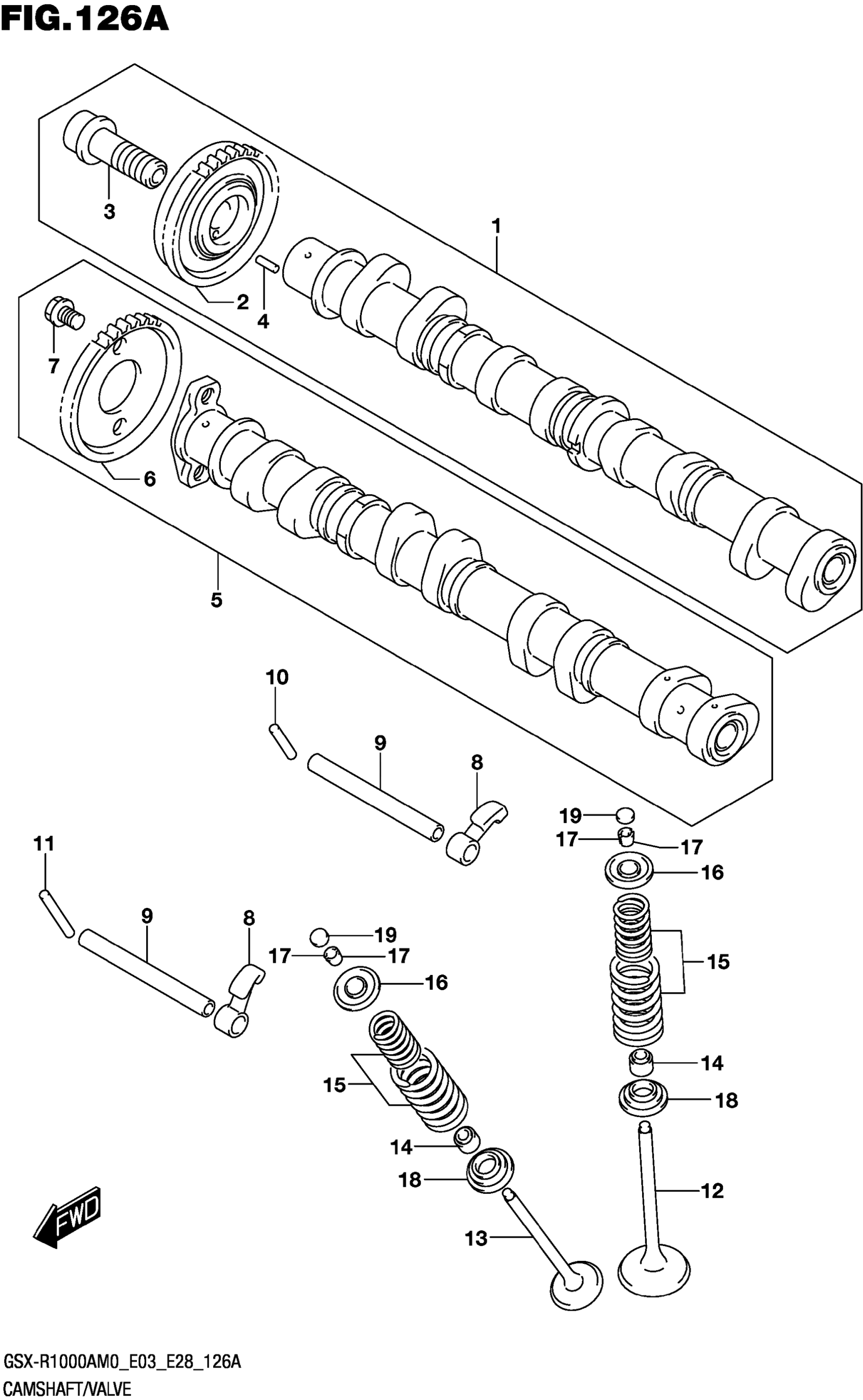

Suzuki GSX-R1000AM0 (2020) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE

12710-17K00

$697.43

2

.SPROCKET,CAMSHAFT INTAKE (NT | 34)

12740-17K00

$899.45

3

.BOLT,SPROCKET INTAKE

12746-17K00

$27.58

4

.PIN (3X8)

09261-03020

$1.52

5

CAMSHAFT,EXHAUST

12720-17K00

$481.35

6

.SPROCKET,CAMSHAFT EXHAUST (N | :34)

12751-17K00

$91.52

7

.BOLT (7X10)

09103-07003

$3.15

8

ARM,VALVE ROCKE This part replaces 12841-17K01.

12841-17K20

$91.66

9

SHAFT,VALVE ROCKER ARM

12861-17K00

$13.63

10

ROLLER (4X23.8)

09261-04005

$1.67

11

PIN,ROCKER ARM SHAFT EXHAUST

12872-17K00

$3.07

12

VALVE,INTAKE This part replaces 12911-17K00.

12911-17K20

$106.63

13

VALVE,EXHAUST This part replaces 12912-17K00.

12912-17K20

$111.43

14

OIL SEAL,VALVE STEM

12919-17K00

$5.11

15

SPRING SET,VALVE

12920-17K10

$14.47

16

RETAINER,VALVE SPRING

12931-17K01

$6.15

17

COTTER,VALVE

12932-32C00

$2.03

18

SEAT,VALVE SPRING

12933-47H00

$7.60

19-1

SHIM,TAPPET (T:1.70)

12892-05C00-170

$11.60

19-2

SHIM,TAPPET (T:1.75)

12892-05C00-175

$9.87

19-3

SHIM,TAPPET (T:1.80)

12892-05C00-180

$11.38

19-4

SHIM,TAPPET (T:1.85)

12892-05C00-185

$11.83

19-5

SHIM,TAPPET (T:1.90)

12892-05C00-190

$11.83

19-6

SHIM,TAPPET (T:1.95)

12892-05C00-195

$11.83

19-7

SHIM,TAPPET (T:2.00)

12892-05C00-200

$11.60

19-8

SHIM,TAPPET (T:2.05)

12892-05C00-205

$11.83

19-9

SHIM,TAPPET (T:2.10)

12892-05C00-210

$11.83

19-10

SHIM,TAPPET (T:2.15)

12892-05C00-215

$11.83

19-11

SHIM,TAPPET (T:2.20)

12892-05C00-220

$11.83

19-12

SHIM,TAPPET (T:2.25)

12892-05C00-225

$9.20

19-13

SHIM,TAPPET (T:2.30)

12892-05C00-230

$9.20

19-14

SHIM,TAPPET (T:2.35)

12892-05C00-235

$9.20

19-15

SHIM,TAPPET (T:2.40)

12892-05C00-240

$8.97

19-16

SHIM,TAPPET (T:2.45)

12892-05C00-245

$9.20

19-17

SHIM,TAPPET (T:2.50)

12892-05C00-250

Unavailable

19-18

SHIM,TAPPET (T:2.55)

12892-05C00-255

$9.02

19-19

SHIM,TAPPET (T:2.60)

12892-05C00-260

Unavailable

19-20

SHIM,TAPPET (T:2.65)

12892-05C00-265

Unavailable

19-21

SHIM,TAPPET (T:2.70)

12892-05C00-270

Unavailable

20

SHIM SET,TAPPET (5PCS.EACH) | OPT,NOT ILLUSTRATED

12800-05830

$1,211.58

21

.CASE,TAPPET SHIM | OPT,NOT ILLUSTRATED

99000-69491

Unavailable
