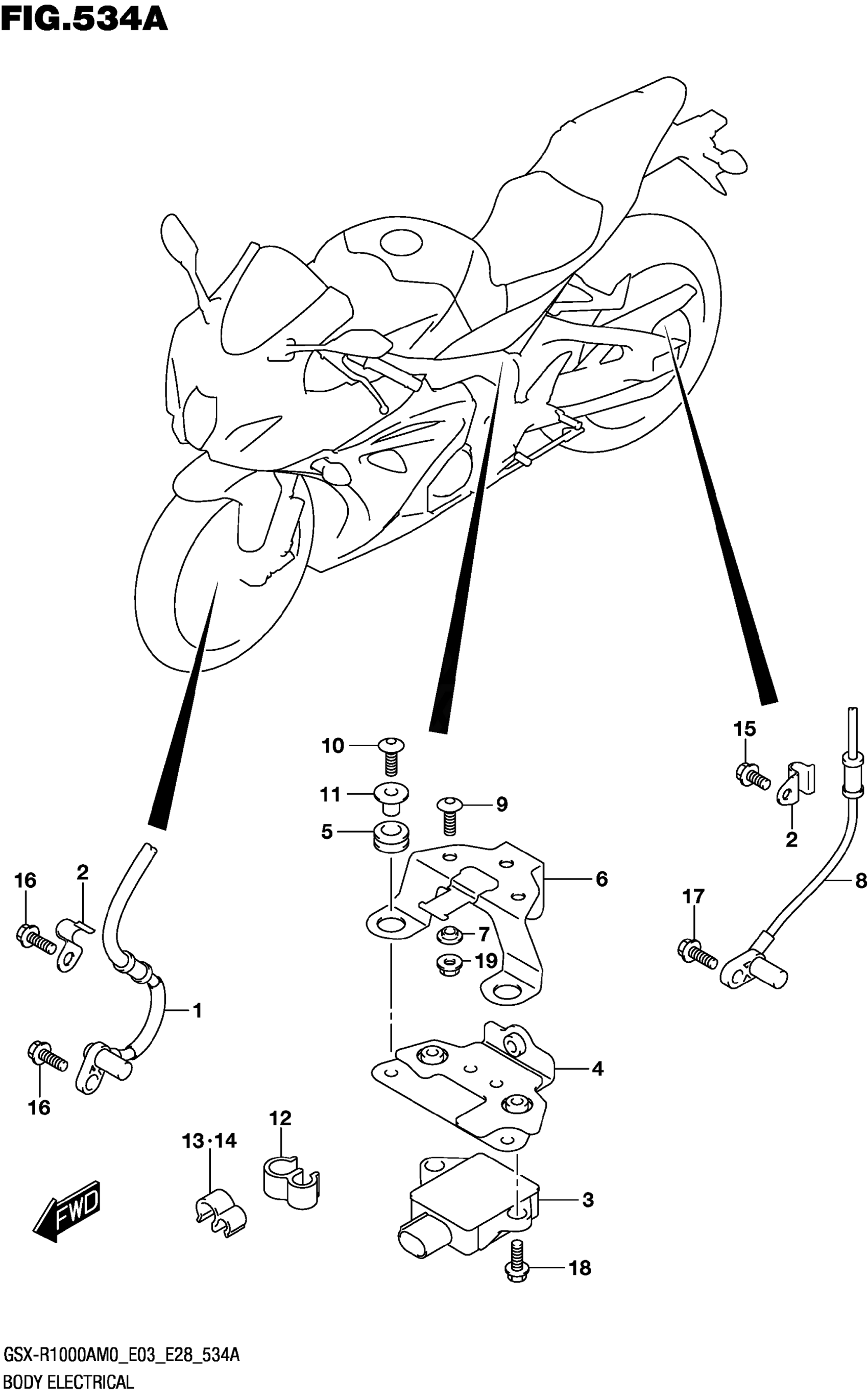

Suzuki GSX-R1000AM0 (2020) BODY ELECTRICAL (GSX-R1000A) Diagram

#

Description
Price

1

SENSOR,FR WHEEL SPEED

55710-17K00

$153.97

2

CLAMP,ABS SENSOR FR

55731-15H00

$5.47

3

SENSOR,INERTIAL

55750-17K20

$1,312.87

4

HOLDER,INERTIAL SENSOR

55760-17K10

$33.87

5

RUBBER,INERTIAL SENSOR MTG

55763-17K00

$5.38

6

BRACKET,SENSOR HOLDER

55770-17K00

$51.15

7

SPACER,SENSOR HOLDER BRKT

55772-17K00

$12.80

8

SENSOR,RR WHEEL SPEED

65710-17K00

$62.08

9

SCREW (6X16)

09139-06139

$2.92

10

BOLT

09139-06208

$3.53

11

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

12

CLIP

09408-00101

$3.40

13

CLAMP

09408-00266

$2.69

14

CLAMP

09408-00266

$2.69

15

BOLT

01547-0612B

$1.22

16

BOLT

01547-0616B

$2.43

17

BOLT

01547-0616B

$2.43

18

BOLT

07120-0616A

$2.55

19

NUT (6X12)

08316-1006A

$2.19
