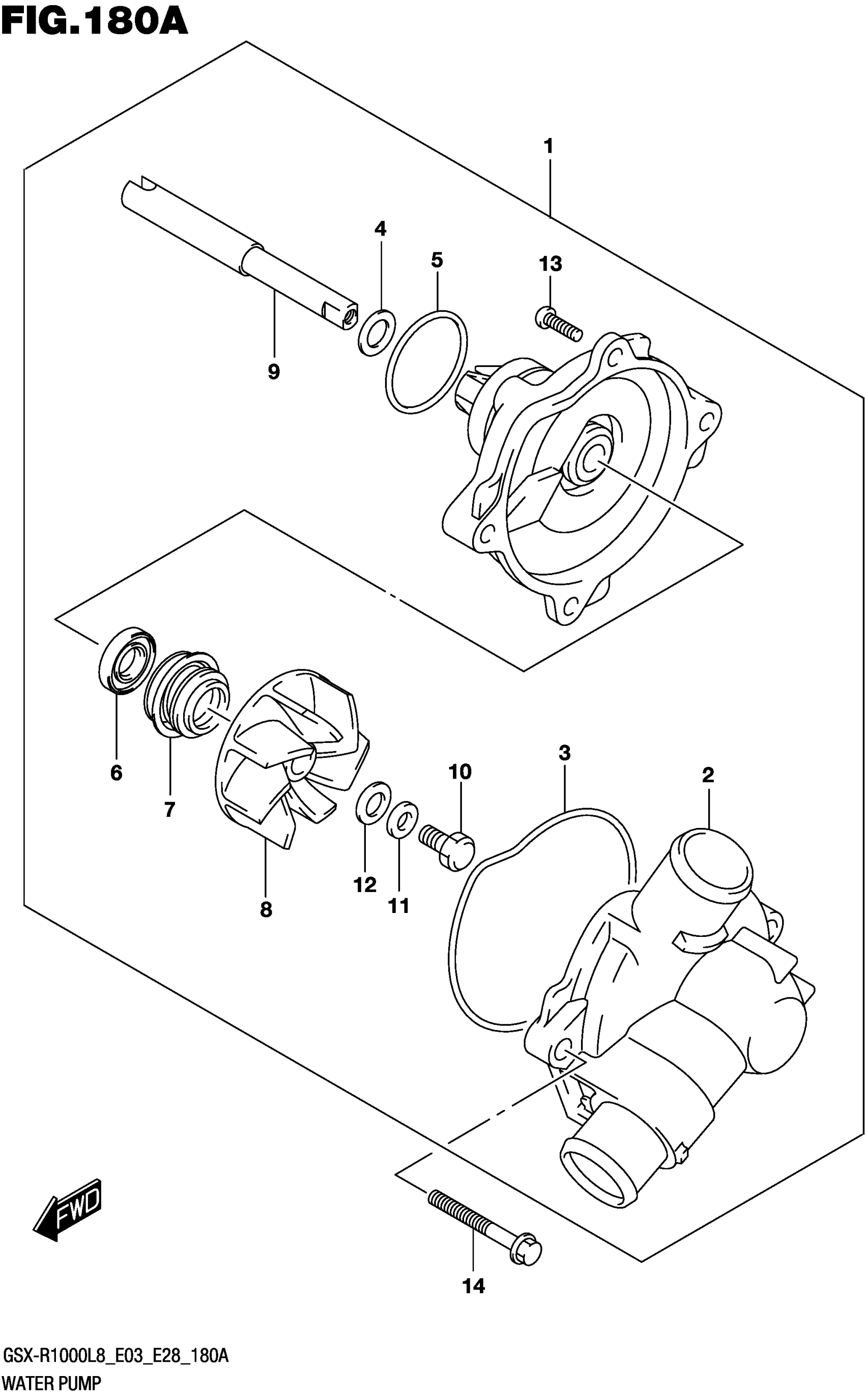

Suzuki GSX-R1000AL8 (2018) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-17K00.

17400-17K01

$271.85

2

.CASE

17410-17K00

$169.48

3

.O-RING This part replaces 17418-33400.

17418-33401

$4.48

4

.WASHER

17432-07G00

$2.60

5

.O-RING

17435-33400

$15.29

6

.SEAL, OIL

17461-01H00

$17.86

7

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

8

.IMPELLER

17491-17K00

Unavailable

9

.SHAFT

17511-47H00

Unavailable

10

.BOLT (6X13)

09100-06099

$2.00

11

.WASHER

09164-06006

$2.61

12

.GASKET (6X15X2.2)

09168-06025

$2.92

13

.SCREW

02112-0616A

$1.49

14

BOLT

01547-0635A

$2.30
