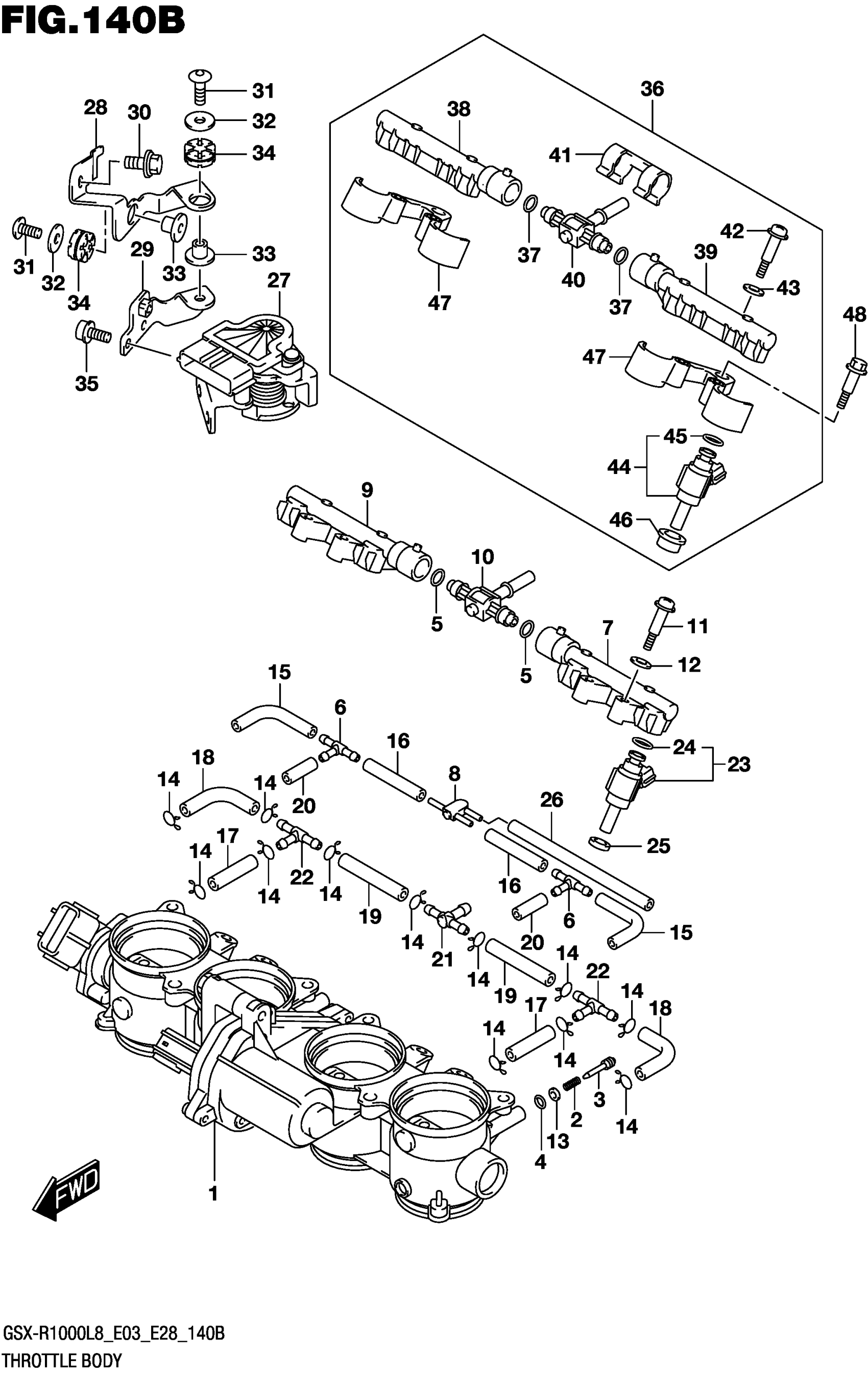

Suzuki GSX-R1000AL8 (2018) THROTTLE BODY (GSX-R1000L8 E33) Diagram

#

Description
Price

1

BODY ASSY,THROTTLE

13405-17K10

$1,703.40

2

SPRING,THROTTLE SCREW

13268-48700

$4.34

3

SCREW

13269-33E00

$11.10

4

O-RING This part replaces 13295-29900.

13295-29901

$4.34

5

O-RING

13374-32G00

$7.22

6

3WAY,VACUUM HOSE

13685-02FA0

$7.05

7

.DELIVERY PIPE

13471-17K00

$70.80

8

.JOINT

13471-18H00

$10.48

9

DELIVERY PIPE

13472-17K00

$70.80

10

NIPPLE ASSY

13473-17K00

$71.35

11

.SCREW

13601-29G00

$3.43

12

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

13

WASHER

13606-47A00

$3.28

14

CLIP

13671-29G00

Unavailable

15

HOSE (3.2X7.4X60) This part replaces 13681-39F00-060.

13681-39F01-060

$3.90

16

HOSE (L:425) | L:425->50 This part replaces 13683-10F60.

13683-10F61

$17.10

17

.HOSE (8.5X4.5X30)

13683-04K10

Unavailable

18

HOSE

13683-17K00

$48.22

19

HOSE

13683-17K10

$15.37

20

HOSE (L:425) | L:425->25 This part replaces 13683-10F60.

13683-10F61

$17.10

21

NIPPLE

13685-29G00

Unavailable

22

.NIPPLE

13685-38420

$14.92

23

.INJECTOR ASSY

15710-04K00

$271.53

24

.O-RING

15717-58B00

$9.95

25

SEAL

15722-14J00

$11.36

26

.HOSE (3X7X600) | L:600->135 This part replaces 09355-30705-600.

09355-30001-600

$8.56

27

BODY ASSY,ACCELERATOR

13500-17K00

$334.60

28

BRACKET,ACCEL SENSOR NO.1

13571-17K00

$13.47

29

BRACKET, ACCEL SENSOR NO.2

13572-17K00

$9.35

30

BOLT (6X12)

09116-06197

$2.71

31

BOLT

09139-06208

$3.25

32

.WASHER (6.5X20X1.6)

09160-06088

$1.65

33

SPACER (6.5X10X11.6)

09180-06319

$3.85

34

CUSHION

09320-10055

$4.50

35

BOLT

07120-0612B

$3.04

36

BODY ASSY,2ND INJECTOR

15900-17K00

$625.35

37

O-RING

13374-32G00

$7.22

38

.DELIVERY PIPE

13471-17K00

$70.80

39

DELIVERY PIPE

13472-17K00

$70.80

40

NIPPLE ASSY

13473-17K00

$71.35

41

.CLIP

13474-17K00

$17.10

42

.SCREW

13601-29G00

$3.43

43

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

44

.INJECTOR ASSY

15710-17K10

$245.97

45

.O-RING

15717-58B00

$9.95

46

.INSULATOR

15722-17K00

$4.34

47

.BRACKET,2ND INJECTOR

15910-17K00

$51.42

48

BOLT

09111-06250

$8.90
