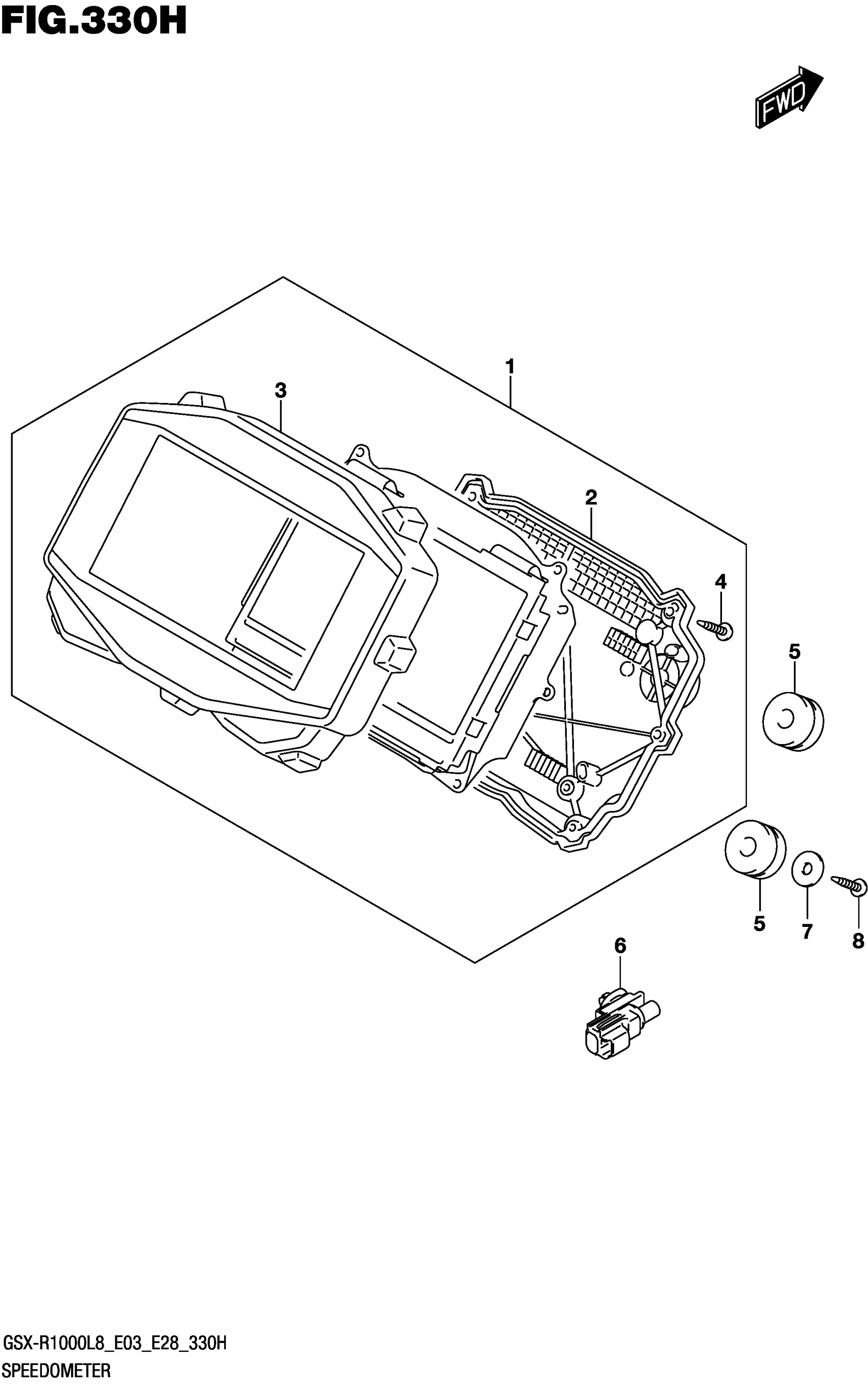

Suzuki GSX-R1000AL8 (2018) SPEEDOMETER (GSX-R1000RZL8 E33) Diagram

#

Description

Price

1

SPEEDOMETER ASSY This part replaces 34100-17KC0.

34100-17KC2-999

$1,229.13

2

.CASE ASSY,LOWER

34111-17K00

$77.55

3

.CASE ASSY,UPPER This part replaces 34150-17K10.

34150-17K10-999

$97.64

4

SCREW

34183-10C00

$2.19

5

CUSHION,SPEEDOMETER This part replaces 34189-08J00.

34189-08J01

$3.38

6

SENSOR, AIR TEMP

95643-58J00

$57.00

7

WASHER (4.5X16X1.2)

09160-04026

$1.86

8

SCREW

03541-0416A

$1.43
