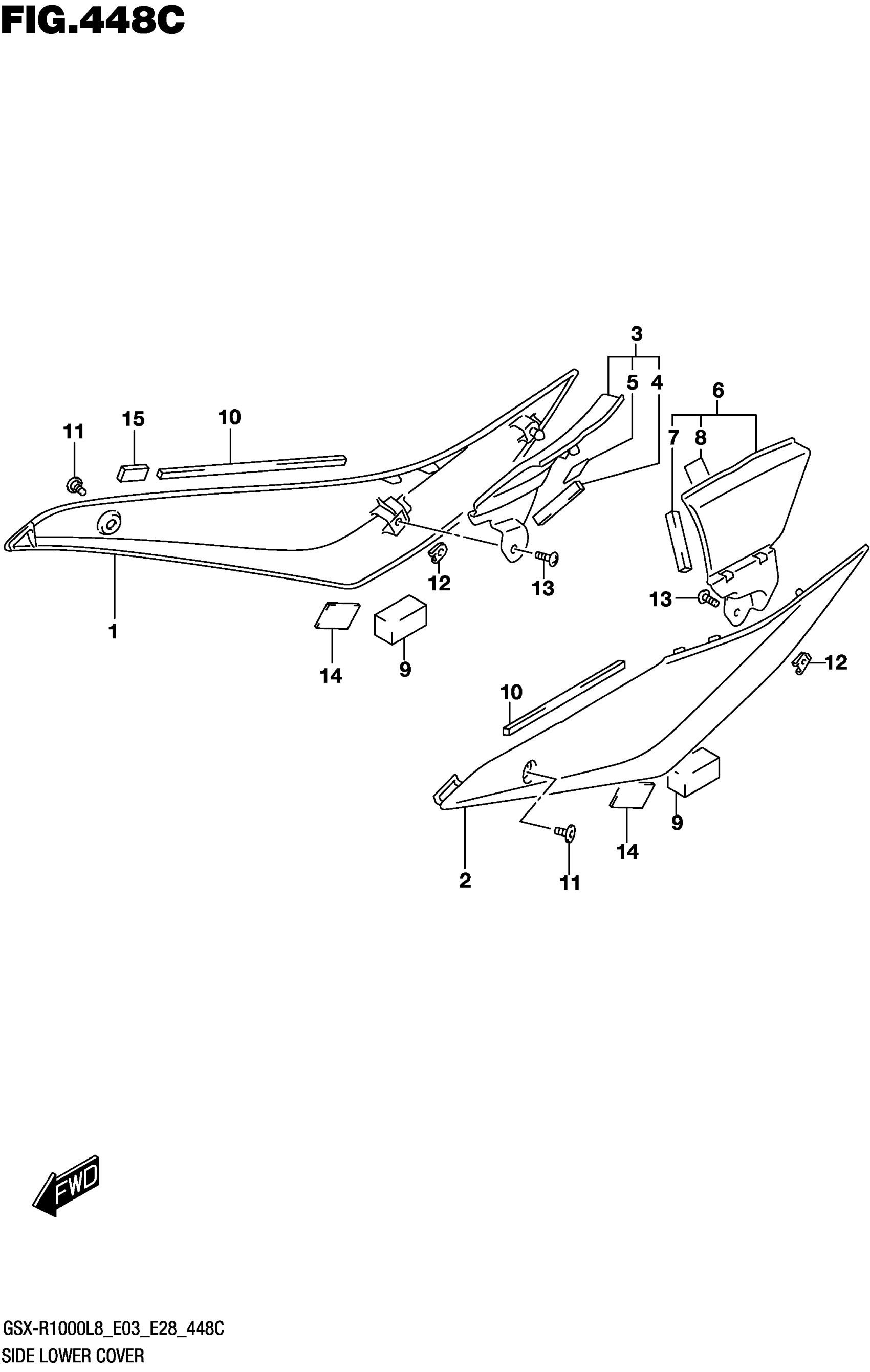

Suzuki GSX-R1000AL8 (2018) SIDE LOWER COVER (GSX-R1000AL8 E03) Diagram

Description

Price

COVER,FRAME FRONT,R This part replaces 47511-17K00.

47511-17K01

$34.65

COVER,FRAME FRONT,L This part replaces 47611-17K00.

47611-17K01

$40.55

3-1

COVER, FRAME FRONT NO.2 RH

47710-17K00-YKV

$82.03

3-1

(BLACK)

47710-17K00-YKV

$82.03

3-2

COVER, FRAME FRONT NO.2 RH

47710-17K00-YWW

$82.03

3-2

(WHITE)

47710-17K00-YWW

$82.03

CUSHION (8X50X8)

47122-17K00

$2.14

.CUSHION (20X20X1)

47123-17K00

$4.34

6-1

COVER, FRAME FRONT NO.2 LH

47810-17K00-YKV

$82.03

6-1

(BLACK)

47810-17K00-YKV

$82.03

6-2

COVER, FRAME FRONT NO.2 LH

47810-17K00-YWW

$82.03

6-2

(WHITE)

47810-17K00-YWW

$82.03

CUSHION (8X50X8)

47122-17K00

$2.14

.CUSHION (20X20X1)

47123-17K00

$4.34

CUSHION

33652-38F20

$2.61

CUSHION,FRAME COVER UPPER (L:

47121-17K00

$2.92

SCREW (5X13)

09139-05092

$2.25

NUT (M5)

09148-05045

$2.36

SCREW

03541-0516A

$1.49

FASTENER

44572-13G00

$11.07

CUSHION (10X30X6)

33652-47F00

$3.70
