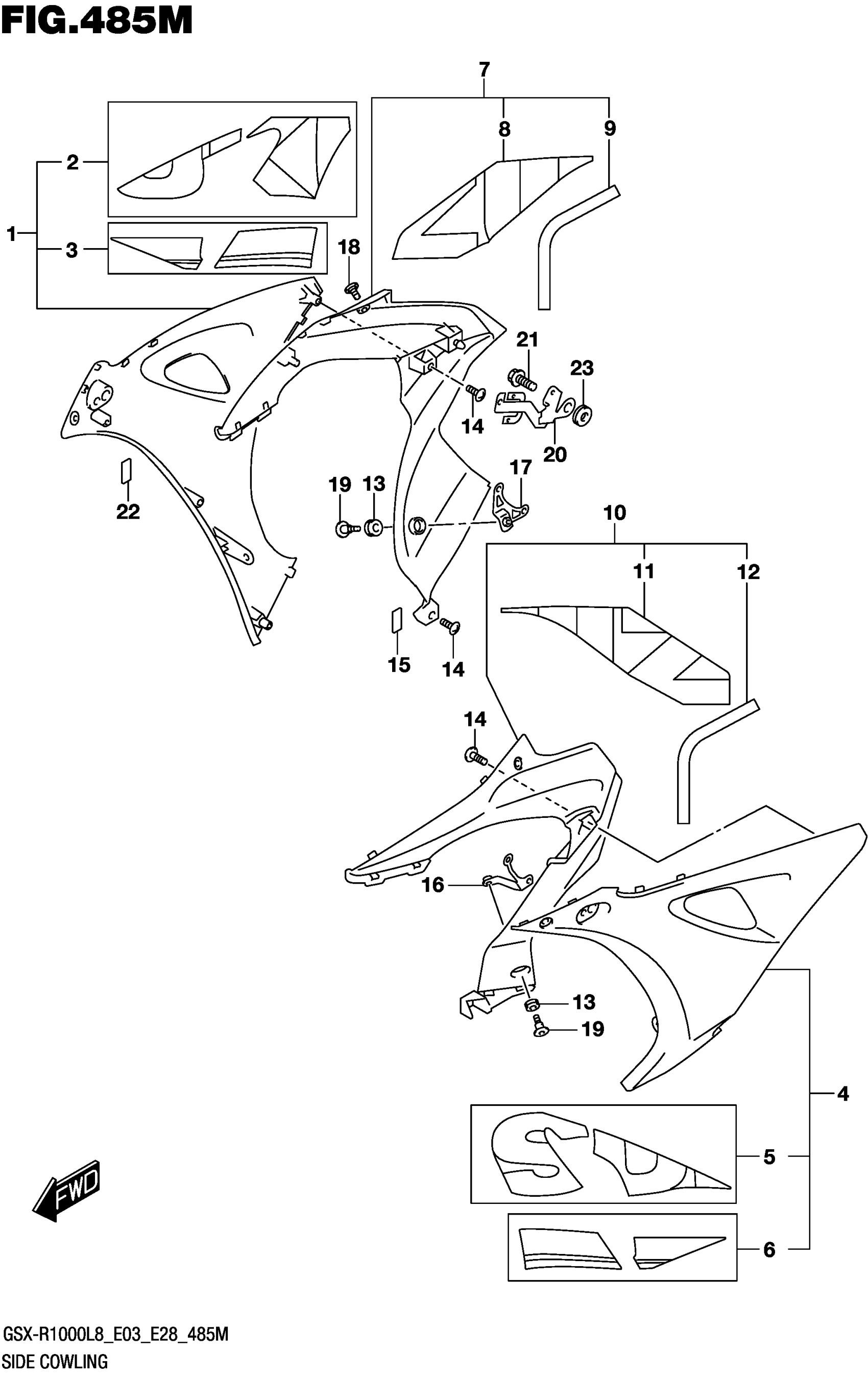

Suzuki GSX-R1000AL8 (2018) SIDE COWLING (GSX-R1000RZL8 E28) Diagram

#

Description
Price

1-1

COWLING, SIDE RH (BLACK)

94470-17K10-YVB

$329.73

1-2

COWLING, SIDE RH (WHITE)

94470-17K10-YWW

$318.93

2-1

.TAPE, SIDE COWLING UPPER RH | FOR YVB

68685-17K10-KGL

$41.80

2-1

(BLACK)

68685-17K10-KGL

$41.80

2-2

.TAPE, SIDE COWLING UPPER RH | FOR YWW

68685-17K10-BQS

$41.03

2-2

(WHITE/GRAY)

68685-17K10-BQS

$41.03

3-1

.TAPE, SIDE COWLING LOWER RH | FOR YVB

68685-17K20-BQM

$39.80

3-2

.TAPE, SIDE COWLING LOWER RH | FOR YWW

68685-17K20-BQL

$39.05

4-1

COWLING, SIDE LH (BLACK)

94480-17K10-YVB

$342.28

4-2

COWLING, SIDE LH (WHITE)

94480-17K10-YWW

$329.73

5-1

.TAPE, SIDE COWLING UPPER LH | FOR YVB

68695-17K10-KGL

Unavailable

5-1

(BLACK)

68695-17K10-KGL

Unavailable

5-2

.TAPE, SIDE COWLING UPPER LH | FOR YWW

68695-17K10-BQS

$40.27

5-2

(WHITE/GRAY)

68695-17K10-BQS

$40.27

6-1

.TAPE, SIDE COWLING LOWER LH | FOR YVB

68695-17K20-BQM

Unavailable

6-2

.TAPE, SIDE COWLING LOWER LH | FOR YWW

68695-17K20-BQL

$39.80

7-1

COWLING, SIDE REAR RH (BLACK)

94450-17K10-YVB

$246.50

7-2

COWLING, SIDE REAR RH (WHITE)

94450-17K10-YWW

$246.50

8-1

.TAPE, SIDE COWLING REAR RH | FOR YVB

68680-17K00-KGL

$27.87

8-1

(BLACK)

68680-17K00-KGL

$27.87

8-2

.TAPE, SIDE COWLING REAR RH | FOR YWW

68680-17K00-BQS

$27.87

8-2

(WHITE/GRAY)

68680-17K00-BQS

$27.87

9

.CUSHION,SIDE REAR,R NO.1

94477-17K00

$4.63

10-1

COWLING, SIDE REAR LH (BLACK)

94460-17K10-YVB

$251.13

10-2

COWLING, SIDE REAR LH (WHITE)

94460-17K10-YWW

$246.50

11-1

.TAPE, SIDE COWLING REAR LH | FOR YVB

68690-17K00-KGL

Unavailable

11-1

(BLACK)

68690-17K00-KGL

Unavailable

11-2

.TAPE, SIDE COWLING REAR LH | FOR YWW

68690-17K00-BQS

$27.87

11-2

(WHITE/GRAY)

68690-17K00-BQS

$27.87

12

.CUSHION,SIDE REAR,L NO.1

94487-17K00

$2.33

13

CUSHION

09320-09016

$1.97

14

SCREW

03541-0516A

$1.37

15

CUSHION,SIDE REAR,R NO.3

94477-17K20

$2.22

16

BRACKET,UNDER COWL,L

94520-17K00

$12.32

17

BRACKET,UNDER COWL,R

94540-17K00

$3.59

18

SCREW (5X13)

09139-05091

$2.01

19

SCREW (6X20)

09139-06206

$2.99

20

BRACKET,SIDE COWL,R

94530-17K00

$30.58

21

BOLT

01550-0625A

$1.97

22

CUSHION, SIDE FRONT

36930-60A10

$2.80

23

CUSHION, UNDER COWLING

94478-14J00

$5.42
