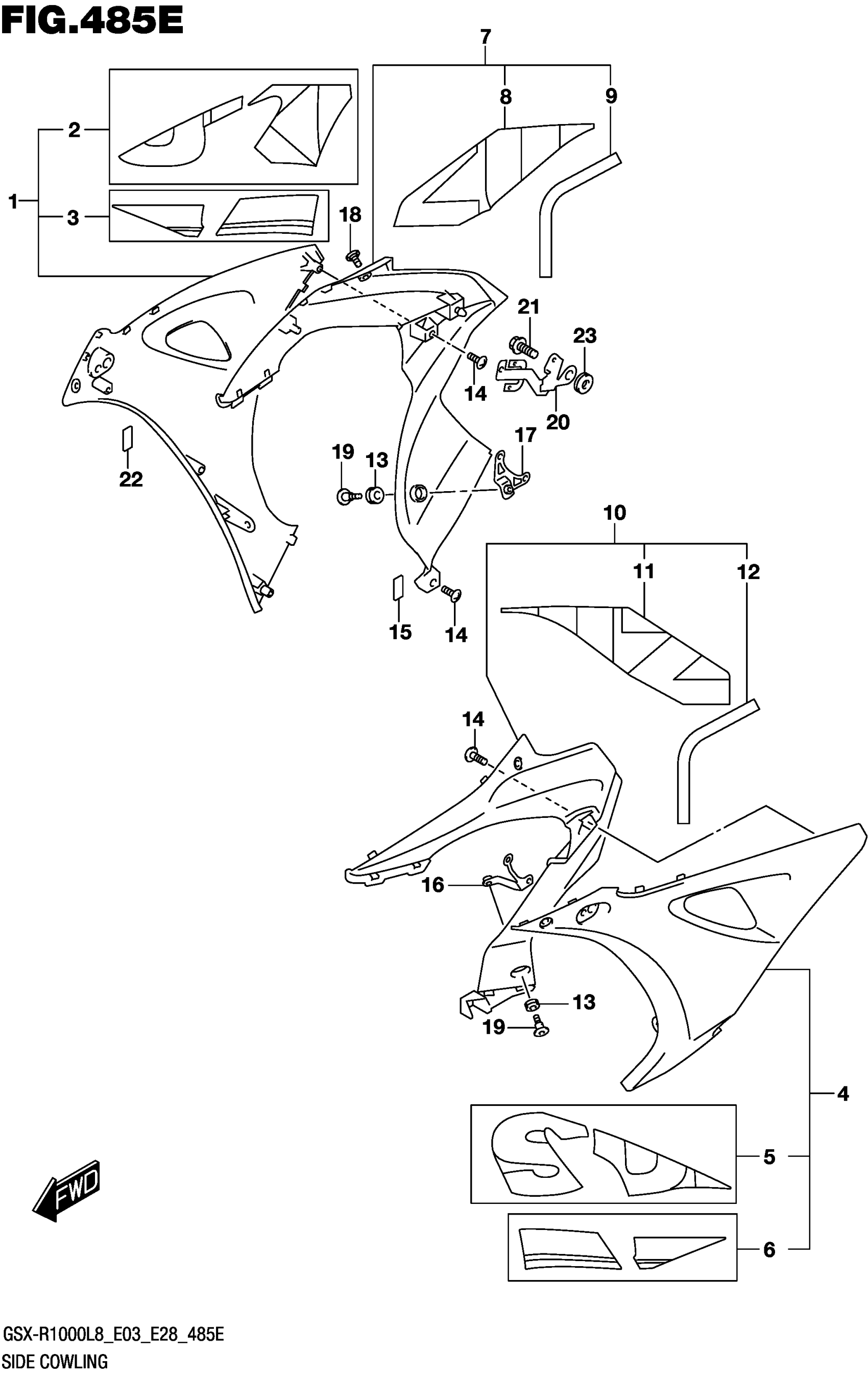

Suzuki GSX-R1000AL8 (2018) SIDE COWLING (GSX-R1000AL8 E03) (FOR YWW) Diagram

#

Description
Price

1

COWLING, SIDE RH (WHITE)

94470-17K10-YWW

$283.95

2

.TAPE, SIDE COWLING UPPER RH

68685-17K10-BQS

$36.35

2

(WHITE/GRAY)

68685-17K10-BQS

$36.35

3

.TAPE, SIDE COWLING LOWER RH

68685-17K20-BQL

$34.60

4

COWLING, SIDE LH (WHITE)

94480-17K10-YWW

$293.55

5

.TAPE, SIDE COWLING UPPER LH

68695-17K10-BQS

$35.68

5

(WHITE/GRAY)

68695-17K10-BQS

$35.68

6

.TAPE, SIDE COWLING LOWER LH

68695-17K20-BQL

$35.25

7

COWLING, SIDE REAR RH (WHITE)

94450-17K10-YWW

$219.47

8

.TAPE, SIDE COWLING REAR RH

68680-17K00-BQS

$24.68

8

(WHITE/GRAY)

68680-17K00-BQS

$24.68

9

.CUSHION,SIDE REAR,R NO.1

94477-17K00

$4.91

10

COWLING, SIDE REAR LH (WHITE)

94460-17K10-YWW

$219.47

11

.TAPE, SIDE COWLING REAR LH

68690-17K00-BQS

$24.68

11

(WHITE/GRAY)

68690-17K00-BQS

$24.68

12

.CUSHION,SIDE REAR,L NO.1

94487-17K00

$2.07

13

CUSHION

09320-09016

$1.97

14

SCREW

03541-0516A

$1.49

15

CUSHION,SIDE REAR,R NO.3

94477-17K20

$1.84

16

BRACKET,UNDER COWL,L

94520-17K00

$10.92

17

BRACKET,UNDER COWL,R

94540-17K00

$3.92

18

SCREW (5X13)

09139-05091

$2.03

19

SCREW (6X20)

09139-06206

$3.32

20

BRACKET,SIDE COWL,R

94530-17K00

$27.10

21

BOLT

01550-0625A

$1.97

22

CUSHION, SIDE FRONT

36930-60A10

$2.92

23

CUSHION, UNDER COWLING

94478-14J00

$5.92
