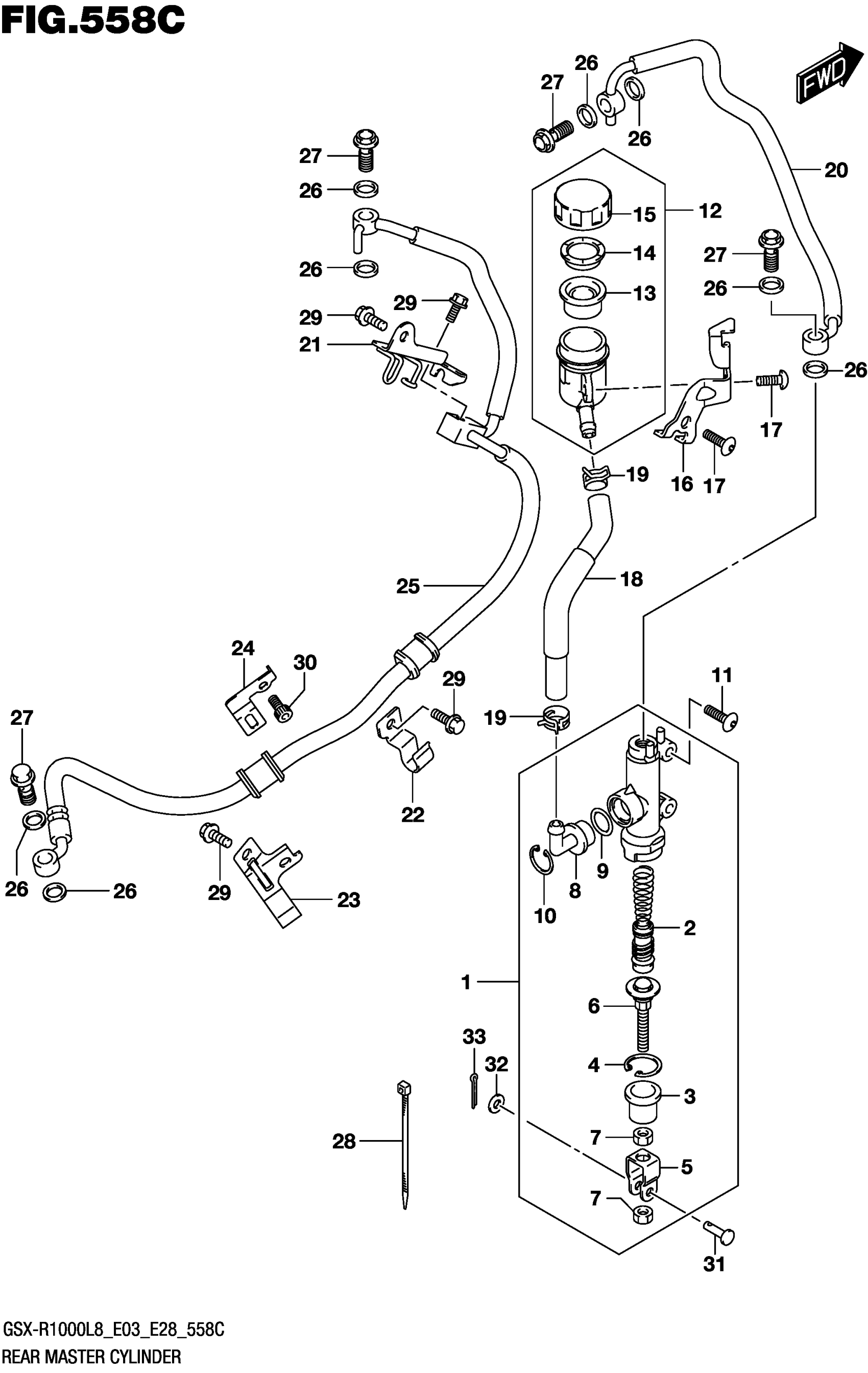

Suzuki GSX-R1000AL8 (2018) REAR MASTER CYLINDER (GSX-R1000AL8 E03) Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER This part replaces 69600-47H30.

69600-47H31

$222.47

2

.PISTON / CAP SET

69600-34810

$56.48

3

.BOOT

69691-00A00

$5.30

4

.CIRCLIP

69665-47H00

$5.02

5

.YOKE

69692-47H00

$11.87

6

.ROD, PUSH

69670-40A00

$25.62

7

.NUT

69693-47H00

$2.48

8

.CONNECTOR

69672-00B20

$7.01

9

.O RING

69686-34200

$2.93

10

.CIRCLIP

69674-00B20

$3.97

11

BOLT

09139-06208

$3.25

12

TANK ASSY,REAR RESERVOIR

69740-17K00

$31.75

13

.DIAPHRAGM

59667-33J00

$8.46

14

.PLATE

59668-33J00

$5.09

15

.CAP

69669-17K00

$11.30

16

BRACKET,RR RESERVOIR TANK

69750-17K00

$17.72

17

SCREW (6X16)

09139-06139

$3.23

18

HOSE,RR RESERVOIR TANK

69730-17K00

$15.37

19

CLIP

09401-12404

$2.34

20

HOSE ASSY, RR MASTER TO UNIT

69240-17K00

$56.22

21

CLAMP,RR BRAKE HOSE

69260-17K00

$20.07

22

CLAMP,RR BRAKE HOSE

69268-17K00

$8.03

23

CLAMP,RR BRAKE HOSE

69270-17K00

$11.33

24

CLAMP,RR BRAKE HOSE

69272-17K00

$4.55

25

HOSE ASSY, RR UNIT TO CLPR

69480-17K10

$109.10

26

WASHER (10X15X1.5)

09161-10009

$1.84

27

UNION

09360-10062

$6.43

28

CLAMP (L:145)

09407-14407

$3.57

29

BOLT

01547-0612A

$2.03

30

BOLT

01547-0612A

$2.03

31

PIN (6X18.2)

09200-06068

$4.11

32

WASHER

08322-0106A

$1.84

33

COTTER PIN

04111-2015A

$1.49
