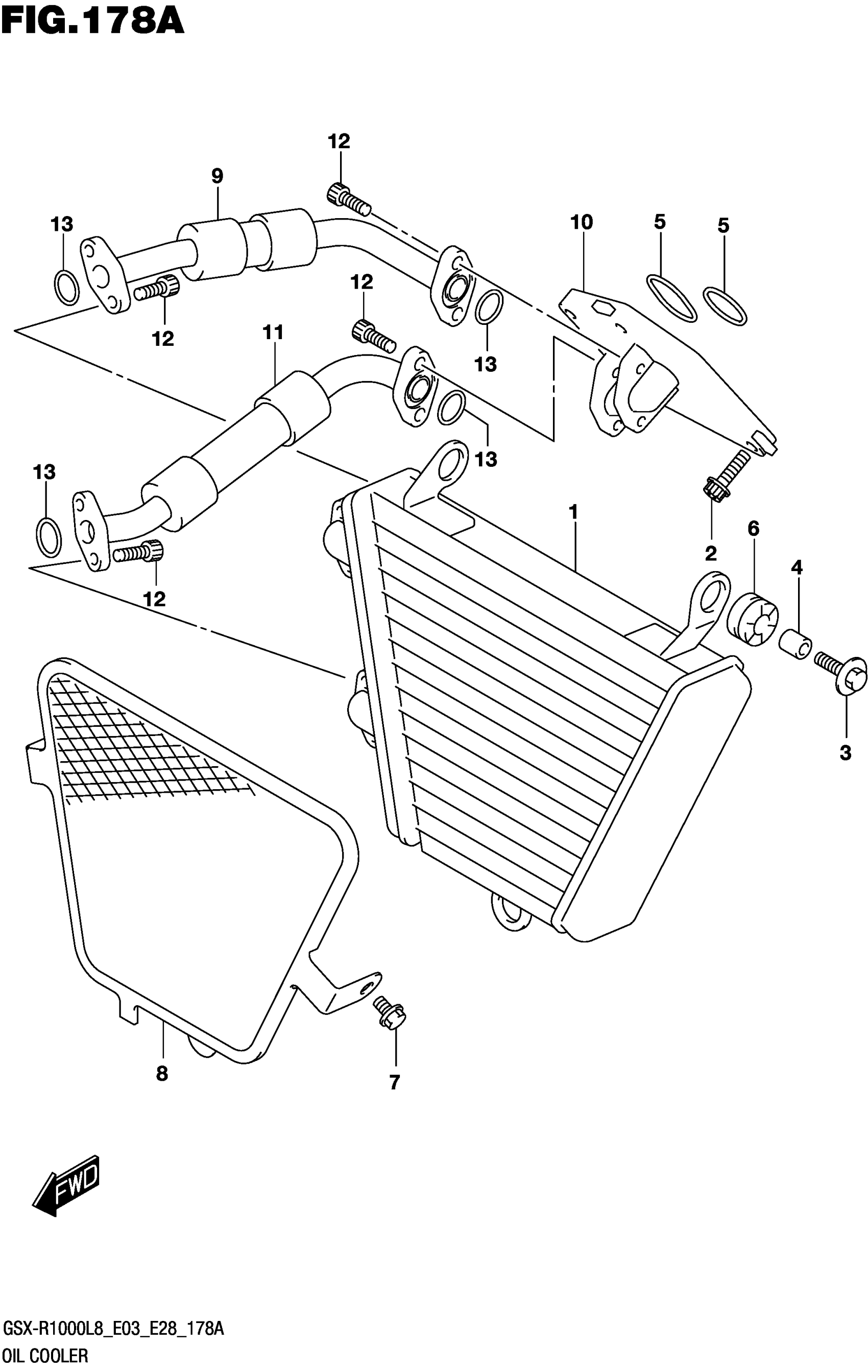

Suzuki GSX-R1000AL8 (2018) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY,OIL

16600-47H20

$835.02

2

BOLT

09116-06514

$3.28

3

BOLT (6X25)

09118-06122

$4.23

4

SPACER (6.5X10X12)

09180-06290

$2.01

5

O-RING

09280-33006

$9.32

6

CUSHION

09320-10051

$2.81

7

BOLT

01550-0610A

$1.97

8

GUARD, OIL COOLER

16650-47H20

$128.85

9

HOSE,OIL COOLER INLET

16460-17K00

$141.87

10

PLATE,OIL HOSE

16469-17K00

$149.53

11

HOSE,OIL COOLER OUTLET

16470-17K00

$141.87

12

BOLT (6X16)

09106-06073

$2.38

13

O RING (D:2.4,ID:16)

09280-15015

$4.42
