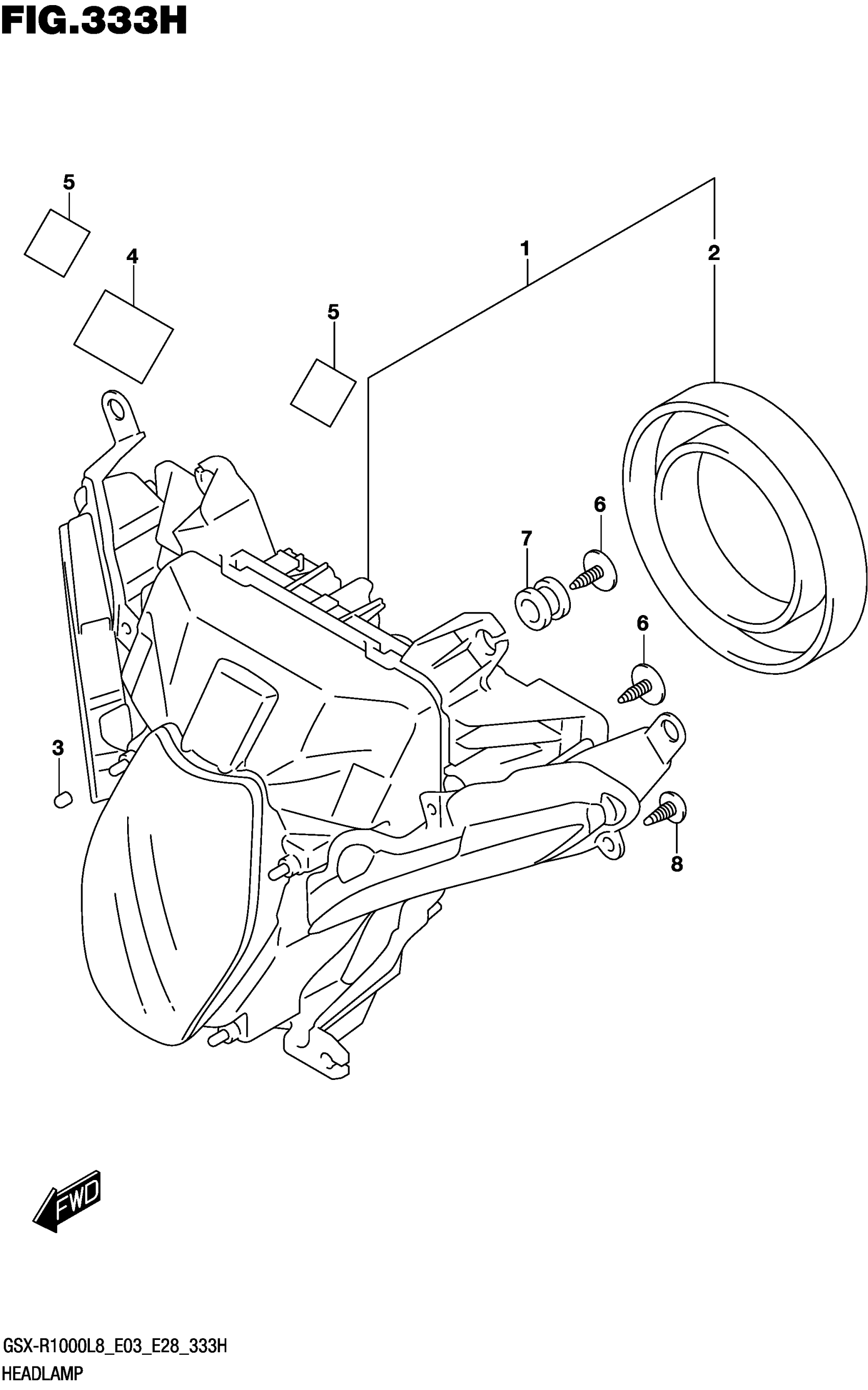

Suzuki GSX-R1000AL8 (2018) HEADLAMP (GSX-R1000RZL8 E33) Diagram

#

Description

Price

1

HEADLAMP ASSY This part replaces 35100-17KA0.

35100-17KA1

$1,111.40

2

.SOCKET COVER

35125-17K00

$41.35

3

CUSHION,FUEL TANK COVER This part replaces 44294-43H00.

44294-43H11

$2.39

4

FASTENER

44572-02F01

$10.13

5

FASTENER

44572-37H00

$9.01

6

SCREW (5X15)

09136-05062

$2.19

7

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$2.95

8

SCREW

03541-0512B

$1.77
