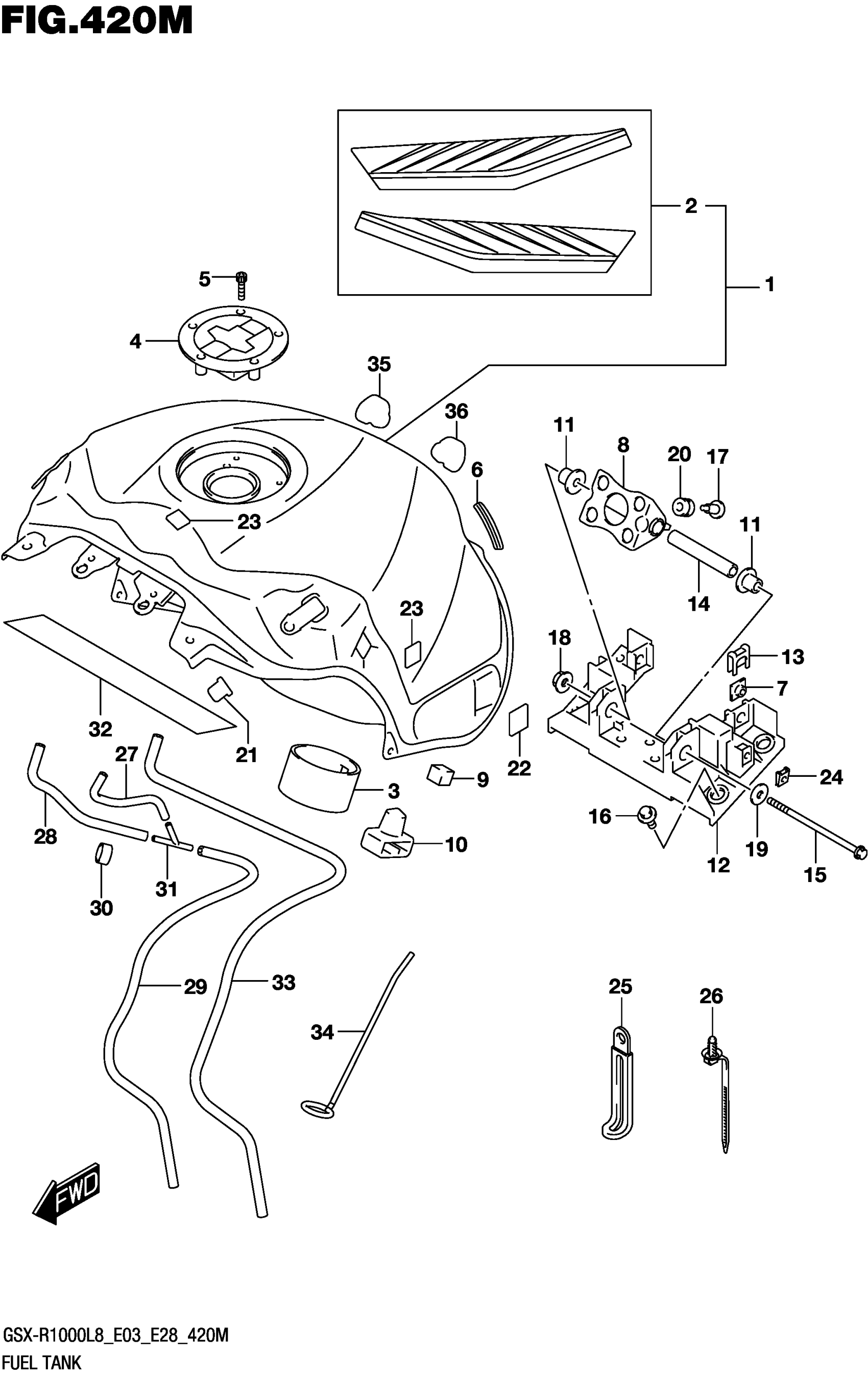

Suzuki GSX-R1000AL8 (2018) FUEL TANK (GSX-R1000RZL8 E28) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLACK)

44100-17KA0-YVB

$1,039.50

1-2

TANK ASSY, FUEL (WHITE)

44100-17KA0-YWW

$1,039.50

2-1

.TAPE SET, FUEL TANK | FOR YVB

68110-17K00-BQM

Unavailable

2-2

.TAPE SET, FUEL TANK | FOR YWW

68110-17K00-BQL

$49.97

3

VESSEL,FUEL TANK INNER This part replaces 44121-17K00.

44121-17K01

$16.35

4

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

5

BOLT, FUEL TANK FILLER CAP

44244-11J00

$4.00

6

MOLDING, FUEL TANK REAR

44552-24B10

$11.18

7

NUT

44523-47H00

$10.02

8

BRACKET,FUEL TANK NO.1

44530-17K00

$28.83

9

CUSHION,FUEL TANK SIDE

44541-17K00

$5.13

10

CUSHION,FUEL TANK REAR

44542-17K00

$11.33

11

SPACER,FUEL TANK REAR BRKT

44544-17K00

$7.75

12

BRACKET,FUEL TANK REAR

44551-17K00

$62.72

13

CLIP,NUT

44552-17K00

$5.22

14

SPACER, JOINT

44561-18G00

$16.96

15

BOLT (6X125)

09103-06033

$3.91

16

BOLT (6X18)

09111-06081

$4.09

17

SCREW (6X22)

09139-06191

$4.03

18

NUT (M6)

09159-06086

$2.04

19

WASHER This part replaces 09160-06012.

09160-06054

$1.62

20

CUSHION

09320-08071

$3.25

21

CUSHION,FUEL TANK COVER

44543-17K00

$3.50

22

FASTENER, COVER SIDE

44572-13G00

$11.07

23

FASTENER, FUEL TANK COVER

44572-44G00

$10.18

24

NUT

09148-05052

$3.37

25

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

26

CLAMP (L:154)

09407-17403

$4.91

27

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

28

HOSE, FUEL TANK BRTHR NO.1

44424-17K01

$8.97

29

HOSE,FUEL TANK BRTHR NO.2 This part replaces 44424-17K10.

44424-17K11

$8.65

30

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

31

3 WAY

09367-06007

$3.46

32

PROTECTOR,FUEL TANK

44283-17K00

$13.08

33

HOSE, DRAIN

44423-17K01

Unavailable

34

STAY,FUEL TANK | OPT

44574-17K00

$35.02

35

PROTECTOR,FUEL TANK NO.2,R

44285-17K00

$9.83

36

PROTECTOR,FUEL TANK NO.2,L

44286-17K00

$9.83
