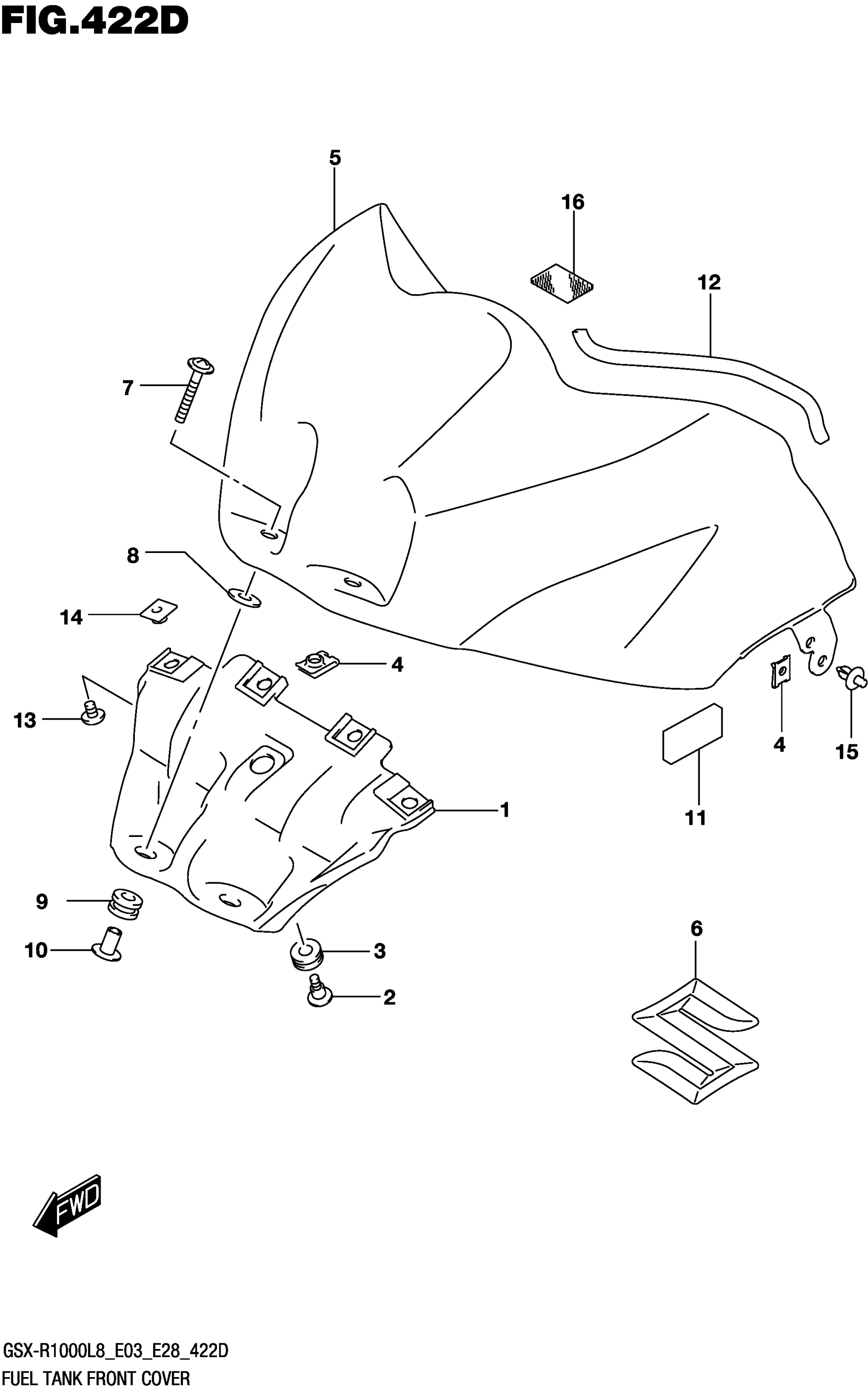

Suzuki GSX-R1000AL8 (2018) FUEL TANK FRONT COVER (GSX-R1000L8 E33) (FOR YKV) Diagram

BRACKET,FUEL TANK FRONT

44521-17K00

$86.32

SCREW (5X16.4)

09139-05078

$3.49

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

NUT

09148-05052

$3.37

COVER COMP,FUEL This part replaces 44290-17K00-YKV.

44290-17K01-YKV

$227.48

EMBLEM "S"

68111-47HA0

$40.44

SCREW (6X40)

09139-06210

$4.82

WASHER This part replaces 09160-06012.

09160-06054

$1.62

CUSHION (10X22X13)

09320-10050

$3.35

SPACER

44512-17K00

$5.98

PROTECTOR, FUEL TANK COVER | CUT AS REQUIRED

33652-20C00

$2.99

CUSHION,FUEL TANK COVER (L:38

44277-17K00

$4.37

SCREW (6X10)

09139-06181

$3.83

NUT

44523-47H00

$10.02

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

FASTENER, COVER FRONT

44572-44G00

$10.18
