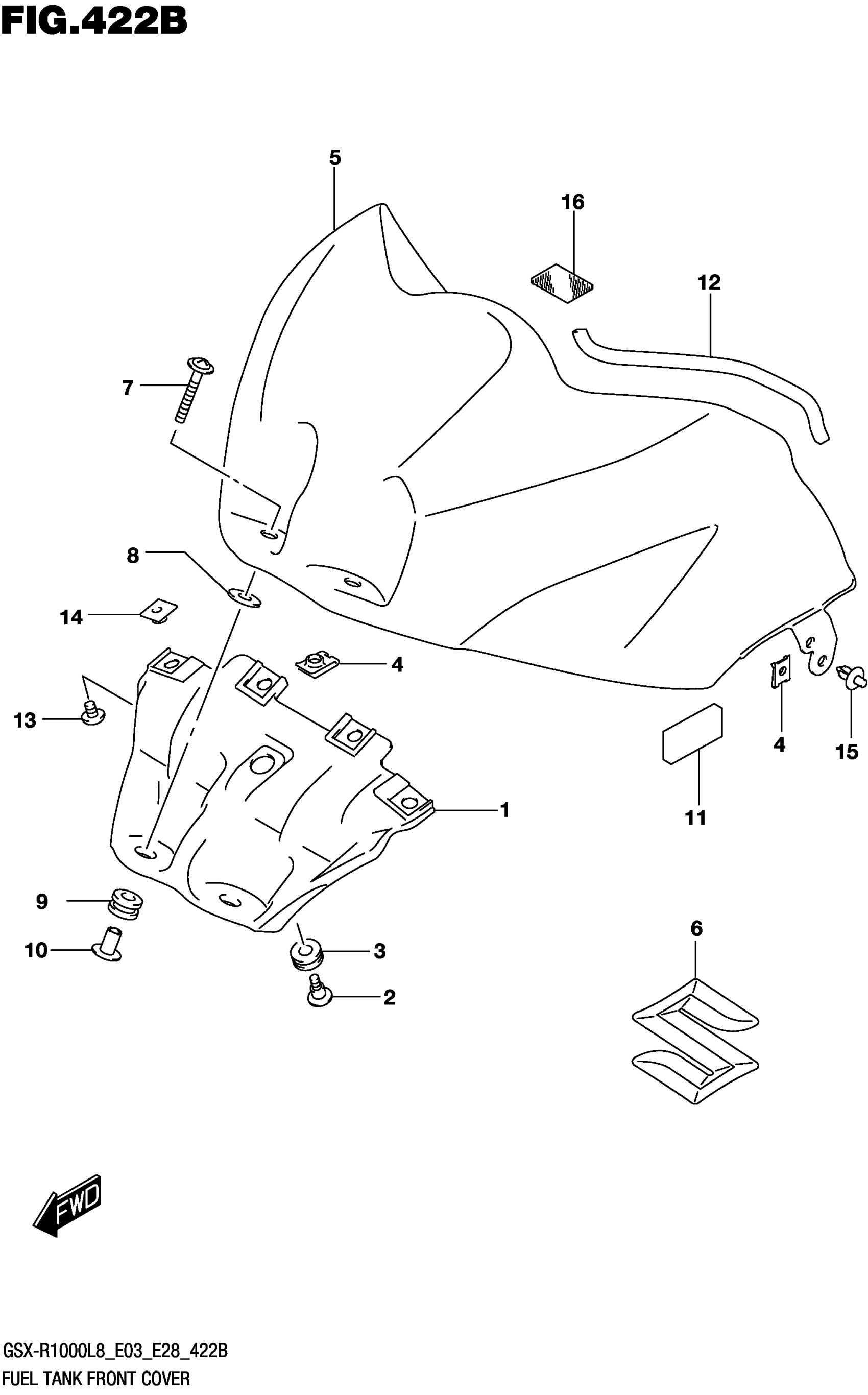

Suzuki GSX-R1000AL8 (2018) FUEL TANK FRONT COVER (GSX-R1000L8 E03) (FOR YKV) Diagram

BRACKET,FUEL TANK FRONT

44521-17K00

$96.95

SCREW (5X16.4)

09139-05078

$3.19

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

NUT

09148-05052

$3.04

COVER COMP,FUEL This part replaces 44290-17K00-YKV.

44290-17K01-YKV

$253.15

EMBLEM "S"

68111-47HA0

$37.02

SCREW (6X40)

09139-06210

$4.41

WASHER This part replaces 09160-06012.

09160-06054

$1.62

CUSHION (10X22X13)

09320-10050

$3.07

SPACER

44512-17K00

$6.75

PROTECTOR, FUEL TANK COVER | CUT AS REQUIRED

33652-20C00

$2.80

CUSHION,FUEL TANK COVER (L:38

44277-17K00

$4.11

SCREW (6X10)

09139-06181

$3.52

NUT

44523-47H00

$13.30

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

FASTENER, COVER FRONT

44572-44G00

$9.32
