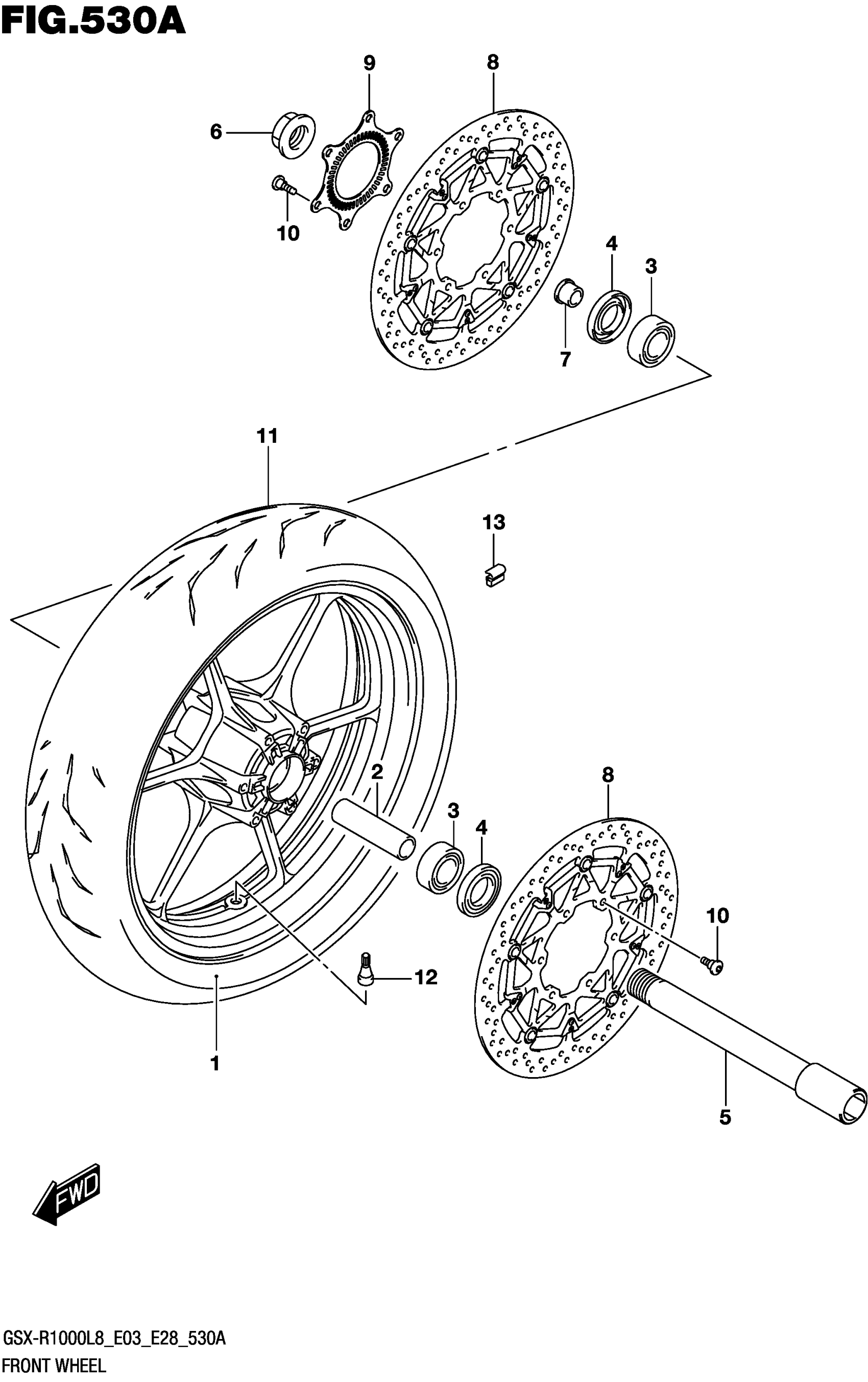

Suzuki GSX-R1000AL8 (2018) FRONT WHEEL (FOR YVB,YWW) Diagram

WHEEL, FRONT (17M/CXMT3.50)

54111-17K00-YLY

$787.75

(BLUE)

54111-17K00-YLY

$787.75

SPACER,FR HUB BEARING

54731-35F10

$37.45

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

$24.28

.SEAL,OIL (32X52X7)

09285-32004

$7.98

AXLE,FR

54711-47H00

$155.15

NUT, FRONT AXLE

54712-47H00

$41.53

SPACER, FRONT AXLE, RH

54751-41G10

$19.66

DISC,FRONT BRAKE This part replaces 59210-17K00.

59210-17K01

$468.45

RING,SPEED SENSOR FR (48T)

54162-47H00

$114.17

BOLT (6X23)

09106-06134

$3.18

TIRE, FRONT | BATTLAX RACING STREE

55110-17K00

$292.82

(120/70ZR17M/C 58W) | BRIDGESTONE

55110-17K00

$292.82

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47
