Description

Price

1

CYLINDER ASSY,FR MASTER

59600-17K00

$231.38

2

.PISTON/CUP SET

59600-17810

$61.97

3

..BOOT

59666-29G00

$12.35

4

.O RING

69686-34200

$2.93

5

.CONNECTOR

59672-17C00

$9.31

6

.CIRCLIP

69674-00B20

$3.97

7

.COVER, DUST

59673-17C00

$8.65

8

.HOLDER

59671-01H00

$18.45

9

.BOLT

59675-02FA0

$3.82

10

.BLEEDER

59121-01A00

$8.73

11

.CAP, BLEEDER

59122-46H00

$4.43

12

TANK ASSY,FR RESERVOIR

59740-47H10

$56.05

13

.DIAPHRAGM

59667-18441

$10.28

14

.PLATE

59668-18441

$4.52

15

.CAP

59669-47H00

$23.78

16

PLATE, TANK CAP

59743-17C00

$9.31

17

SCREW

02142-0410A

$1.49

18

BOLT (5X17)

09111-05006

$4.32

19

BRACKET,FR RESERVOIR TANK

59751-47H10

$15.95

20

BOLT

01547-0612A

$2.03

21

NUT

09159-05048

$7.22

22

HOSE,FRONT RESERVOIR TANK

59731-47H00

$16.52

23

CLAMP, HOSE

59735-17C00

$4.93

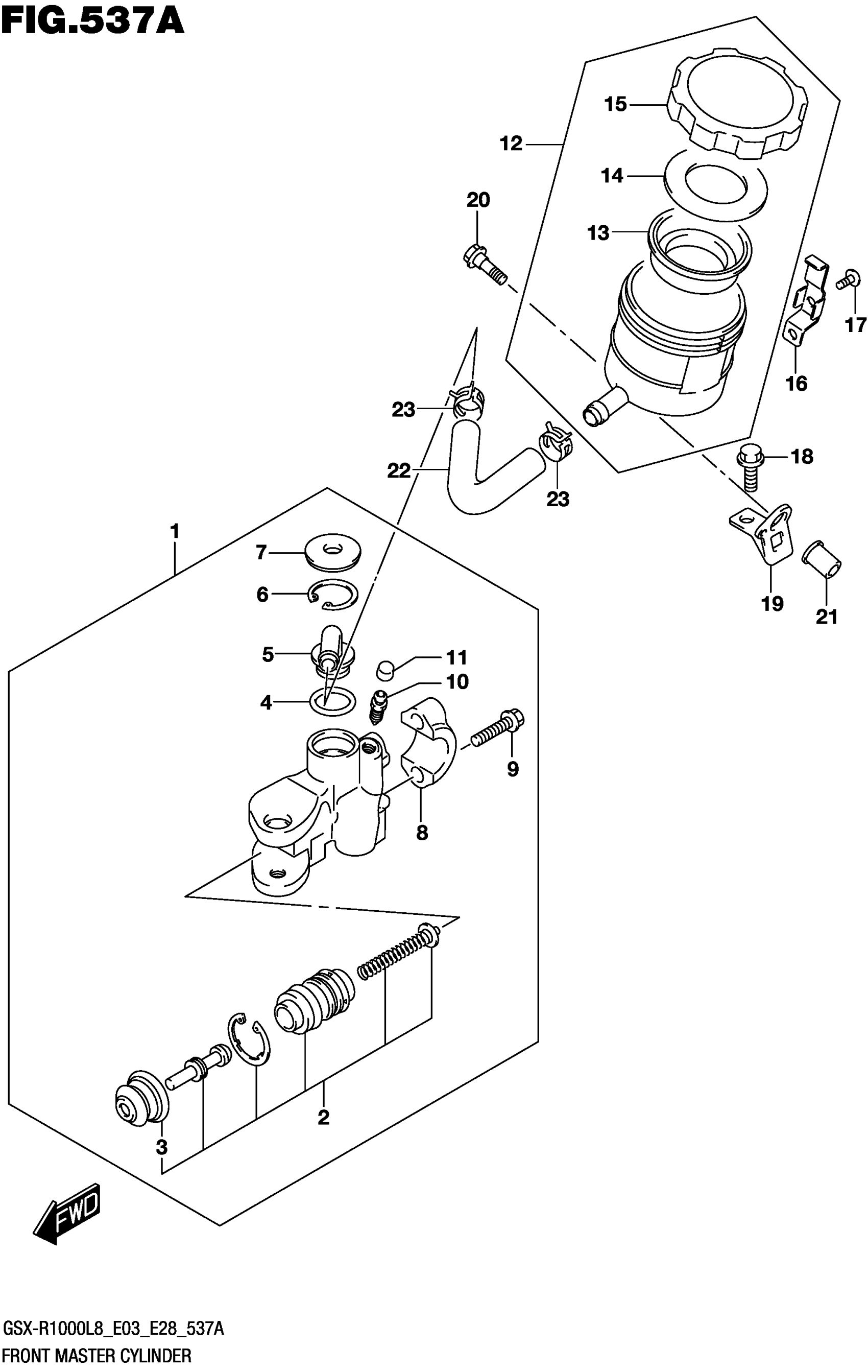

Suzuki GSX-R1000AL8 (2018) FRONT MASTER CYLINDER Diagram
