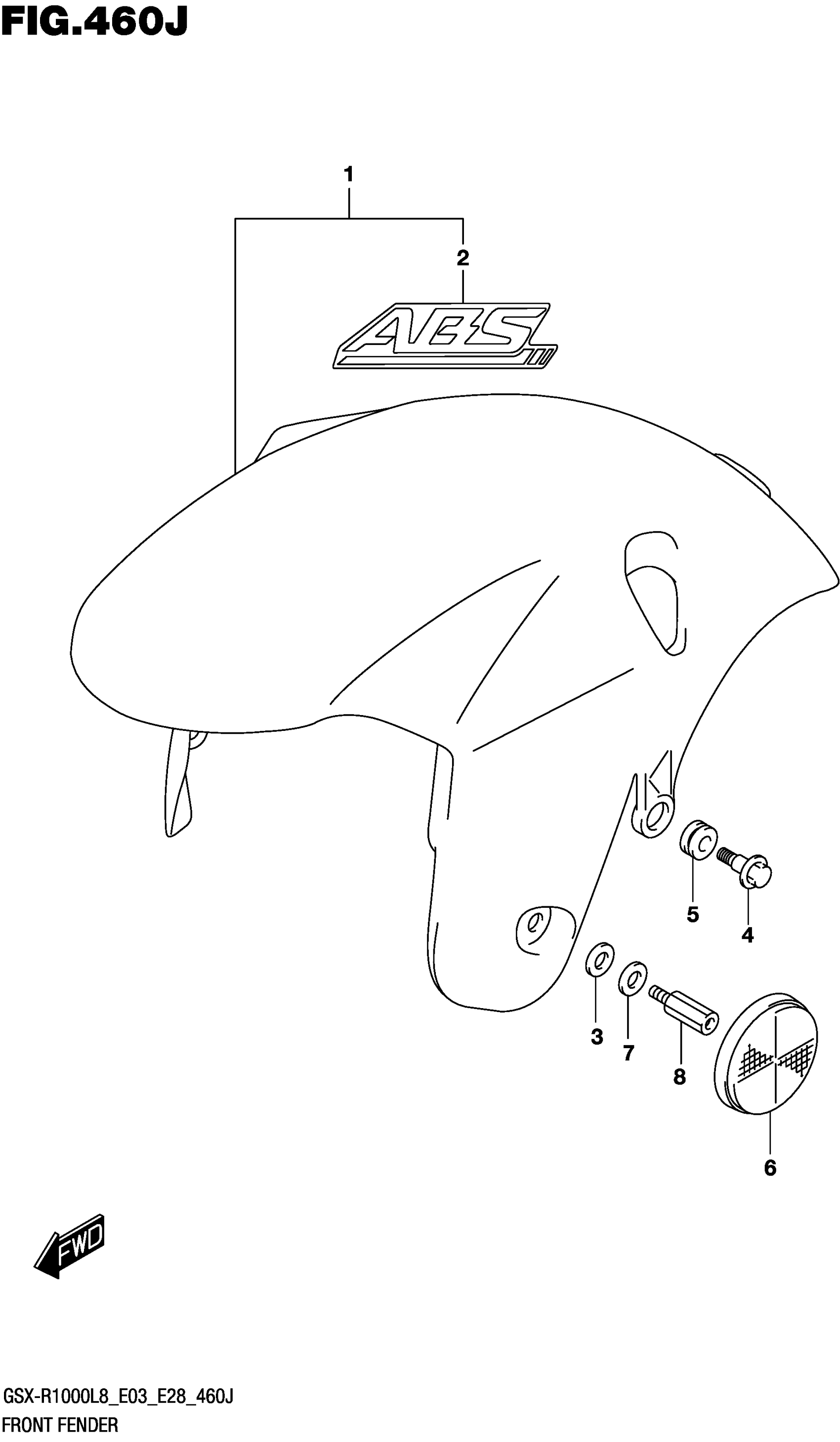

Suzuki GSX-R1000AL8 (2018) FRONT FENDER (GSX-R1000RZL8 E03) Diagram

#

Description

Price

1-1

FENDER,FRONT (BLACK) This part replaces 53110-17K10-YVB.

53110-17K11-YVB

$261.90

1-2

FENDER,FRONT This part replaces 53110-17K10-YWW.

53110-17K11-YWW

$263.95

2

.EMBLEM,ABS (GRAY) This part replaces 68151-44G00-1ZY.

68151-44G01-1ZY

$9.60

3

WASHER

53121-33E00

$3.43

4

BOLT (6X19)

09111-06092

$2.62

5

CUSHION

09320-09016

$1.97

6

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

7

WASHER (8.5X18X1)

09160-08043

$1.83

8

BOLT This part replaces 35952-17K00.

35952-17K01

$11.56
