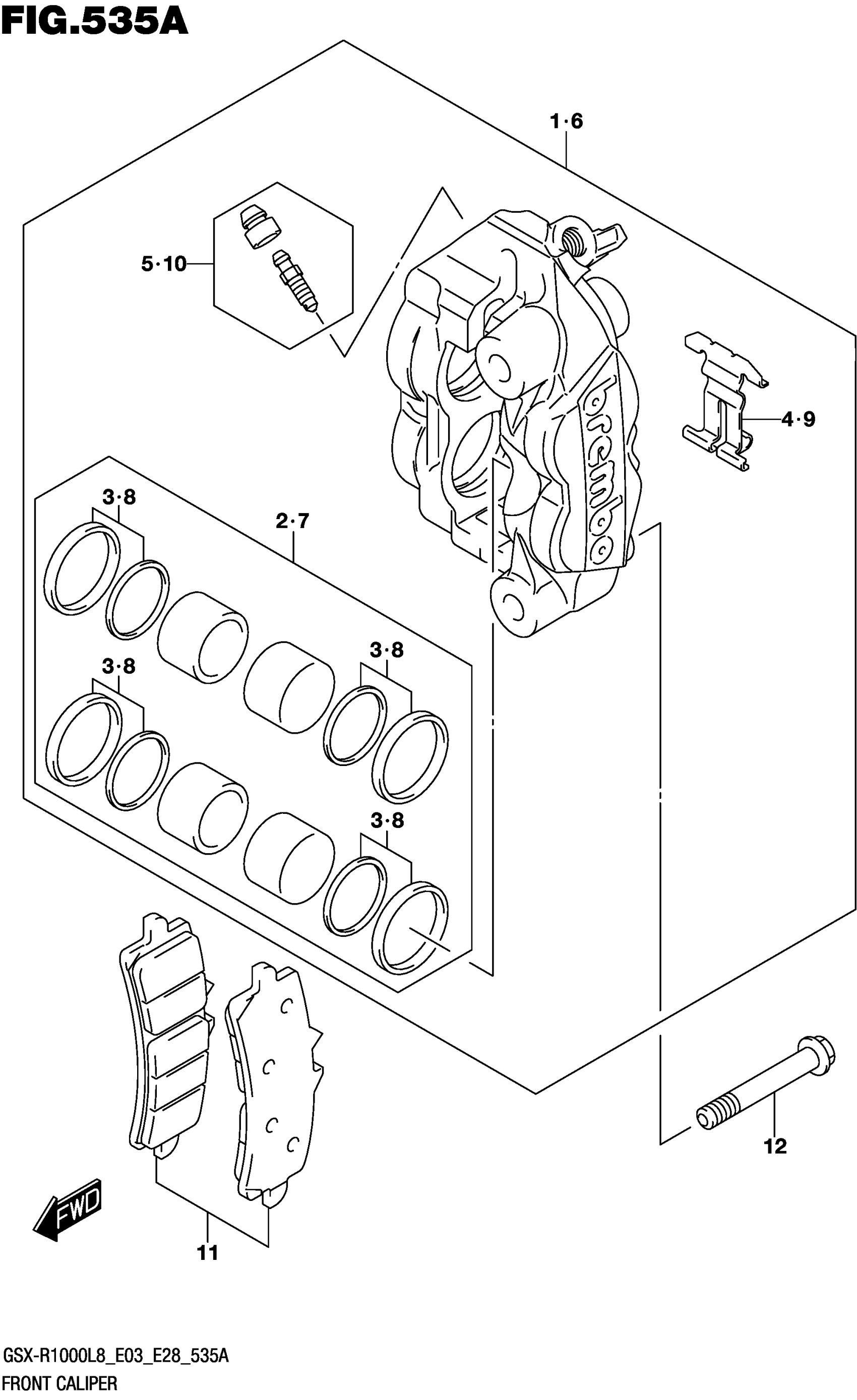

Suzuki GSX-R1000AL8 (2018) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY, FRONT RH

59100-14J40-999

$677.02

2

.PISTON SET

59100-14810

$101.95

3

..SEAL SET, PISTON

59100-14820

$63.34

4

.SPRING, PAD

59151-14J00

$23.43

5

.BLEEDER SET

59100-14840

$25.21

6

CALIPER ASSY, FRONT LH

59300-14J40-999

$677.02

7

.PISTON SET

59100-14810

$101.95

8

..SEAL SET, PISTON

59100-14820

$63.34

9

.SPRING, PAD

59151-14J00

$23.43

10

.BLEEDER SET

59100-14840

$25.21

11

PAD SET

59100-14870

$103.67

12

BOLT (10X70)

09103-10450

$4.90
