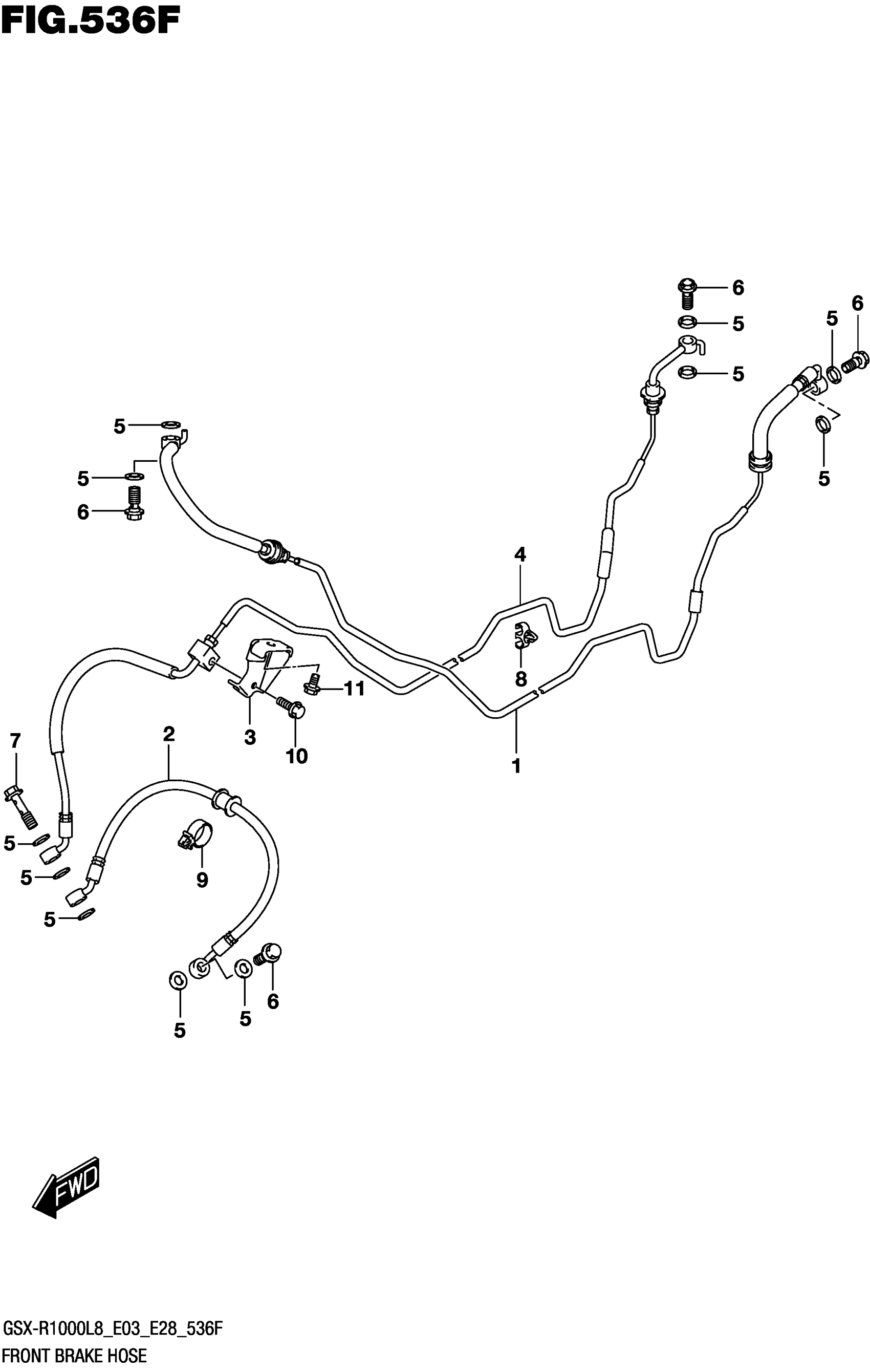

Suzuki GSX-R1000AL8 (2018) FRONT BRAKE HOSE (GSX-R1000RZL8 E03) Diagram

#

Description
Price

1

HOSE This part replaces 59200-17K00.

59200-17K01

$171.73

2

HOSE, CLPR R TO CLPR L

59240-17K00

$96.95

3

CLAMP,FRONT BRAKE HOSE

59270-17K00

$26.23

4

HOSE This part replaces 59400-17K10.

59400-17K11

$243.85

5

WASHER (10X15X1.5)

09161-10009

$1.83

6

UNION

09360-10062

$5.81

7

UNION

09360-10064

$5.81

8

CLAMP

09403-07409

Unavailable

9

CLAMP

09403-16412

$3.08

10

BOLT

01547-0612A

$2.01

11

BOLT

01550-0612A

$1.97
