Partiron

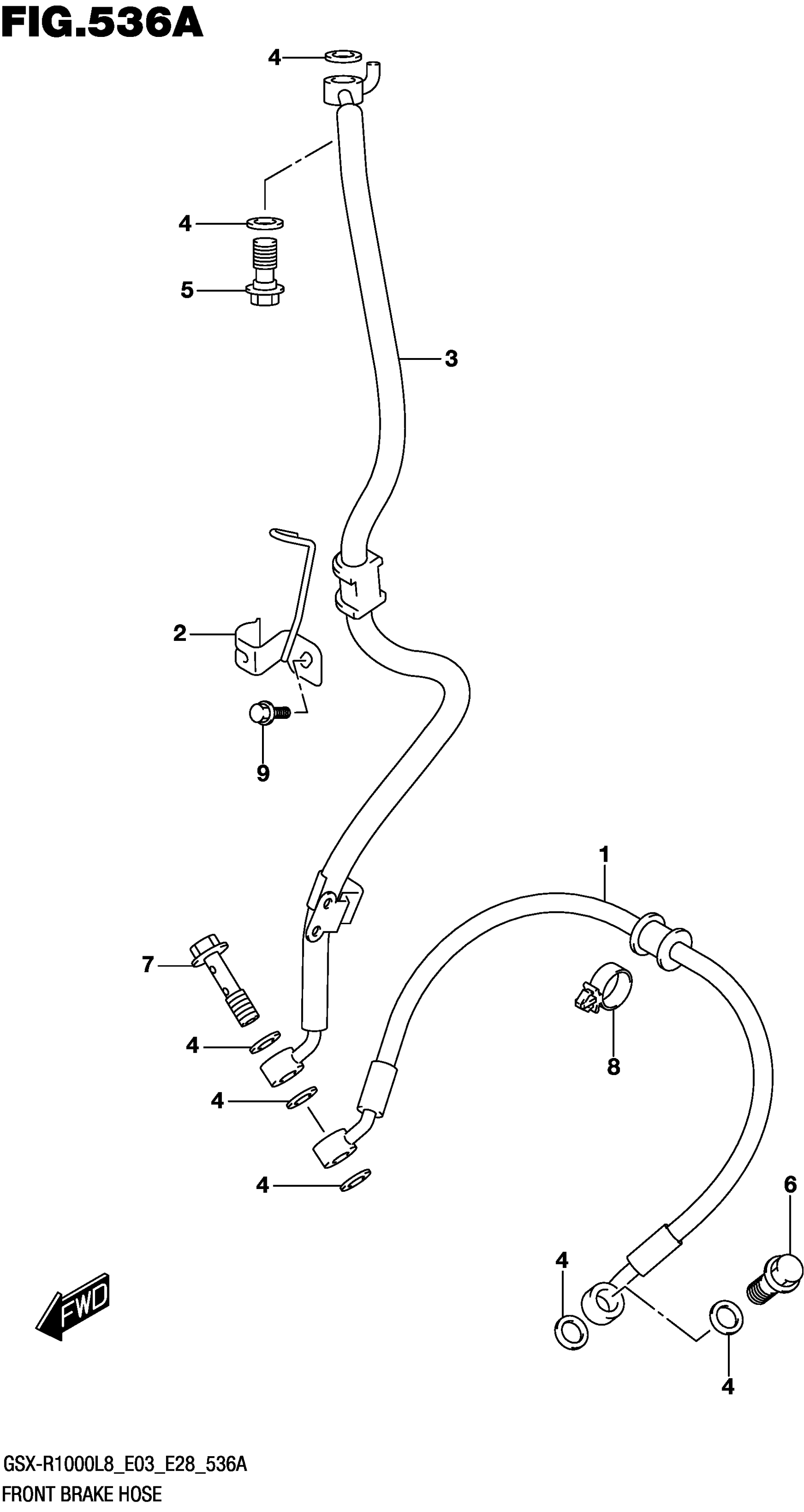

Suzuki GSX-R1000AL8 (2018) FRONT BRAKE HOSE (GSX-R1000L8 E03) Diagram

#

Description
Price

1

HOSE, FRONT CALIPER

59240-17K00

$96.95

2

CLAMP,FR BK HOSE NO.1

59260-47H00

$30.62

3

HOSE, FRONT BRAKE NO.1

59480-17K00

$134.78

4

WASHER (10X15X1.5)

09161-10009

$1.83

5

UNION

09360-10062

$5.81

6

UNION | LH

09360-10062

$5.81

7

UNION | RH

09360-10064

$5.81

8

CLAMP

09403-16412

$3.08

9

BOLT

01547-0612A

$2.01
