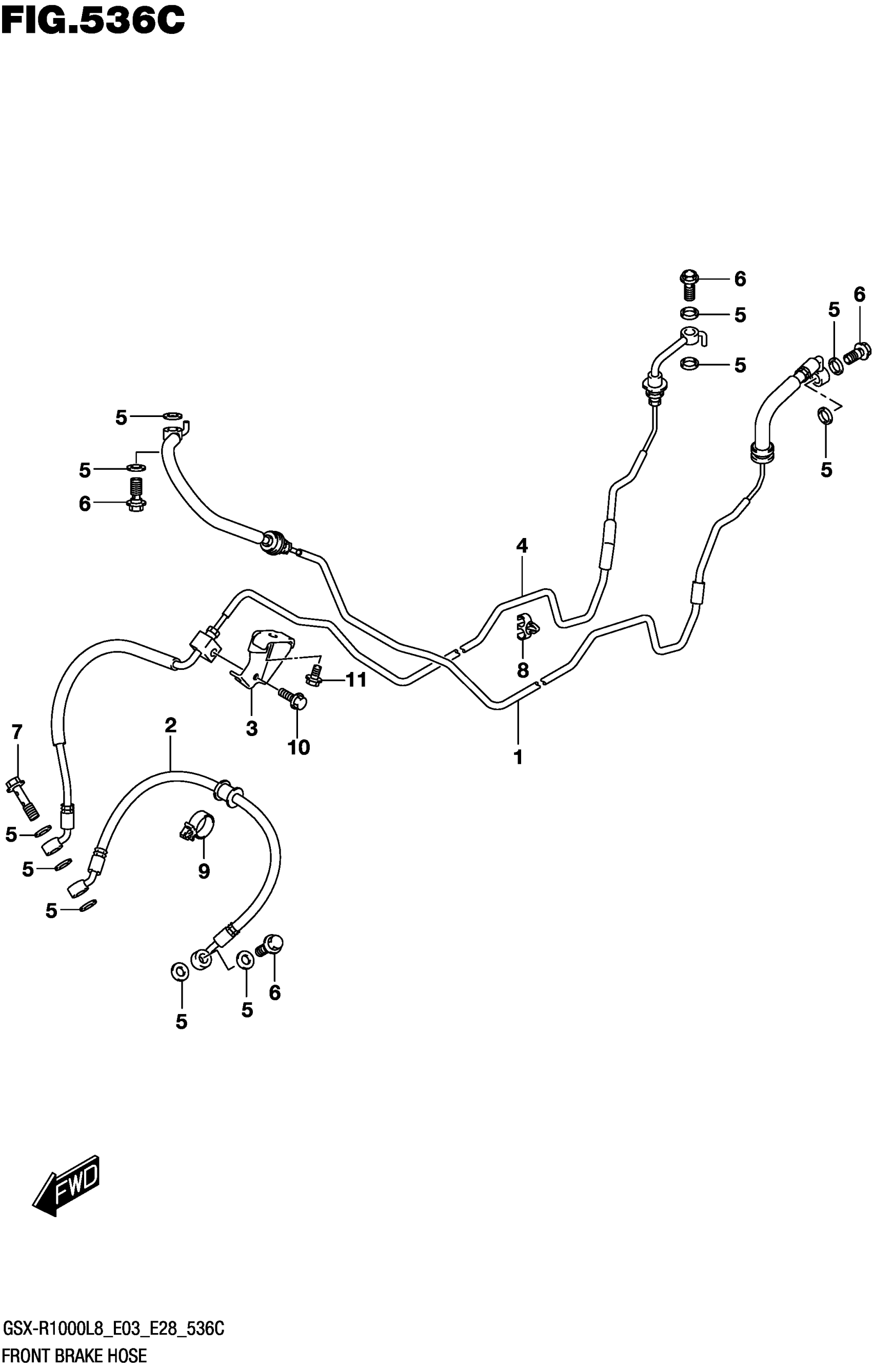

Suzuki GSX-R1000AL8 (2018) FRONT BRAKE HOSE (GSX-R1000AL8 E03) Diagram

#

Description
Price

1

HOSE This part replaces 59200-17K00.

59200-17K01

$154.33

2

HOSE, FRONT BRAKE NO.2

59240-17K00

$86.32

3

CLAMP,FRONT BRAKE HOSE

59270-17K00

$23.25

4

HOSE ASSY, FR UNIT TO CLPR

59400-17K00

$218.13

5

WASHER (10X15X1.5)

09161-10009

$1.84

6

UNION

09360-10062

$6.43

7

UNION

09360-10064

$6.43

8

CLAMP

09403-07409

Unavailable

9

CLAMP

09403-16412

$3.37

10

BOLT

01547-0612A

$2.03

11

BOLT

01550-0612A

$1.97
