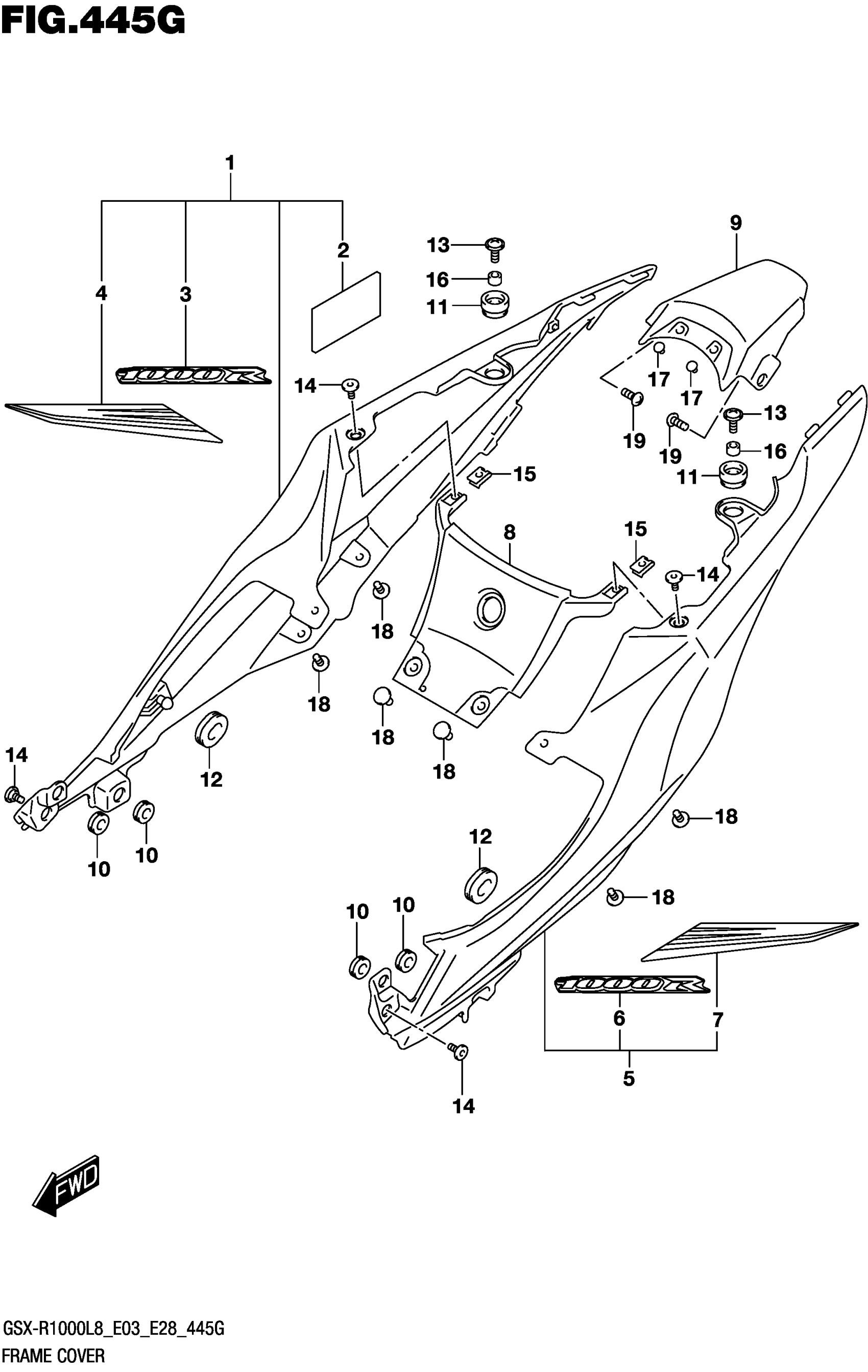

Suzuki GSX-R1000AL8 (2018) FRAME COVER (GSX-R1000RZL8 E28) Diagram

#

Description
Price

1-1

COVER, FRAME RH (BLACK)

47110-17K30-YVB

$170.07

1-2

COVER, FRAME RH (WHITE)

47110-17K30-YWW

$163.83

2

.CUSHION

33652-17K10

$4.38

3-1

.EMBLEM, FRAME COVER | FOR YVB

68131-17K00-BQP

$20.62

3-2

.EMBLEM,FRAME COVER (WHITE,OR | FOR YWW

68131-17K00-BQN

$19.85

4-1

.TAPE, FRAME COVER RH | FOR YVB

68135-17K10-BQM

$36.50

4-2

.TAPE, FRAME COVER RH | FOR YWW

68135-17K10-BQL

$35.82

5-1

COVER, FRAME LH (BLACK)

47210-17K30-YVB

$126.02

5-2

COVER, FRAME LH (WHITE)

47210-17K30-YWW

$163.83

6-1

.EMBLEM, FRAME COVER | FOR YVB

68131-17K00-BQP

$20.62

6-2

.EMBLEM,FRAME COVER (WHITE,OR | FOR YWW

68131-17K00-BQN

$19.85

7-1

.TAPE, FRAME COVER LH | FOR YVB

68145-17K10-BQM

$36.50

7-2

.TAPE, FRAME COVER LH | FOR YWW

68145-17K10-BQL

$36.50

8

COVER,FRAME CENTER FRONT

47311-17K00

$34.62

9-1

COVER, FRAME CENTER REAR

47411-17K00-YVB

$79.00

9-1

(BLACK)

47411-17K00-YVB

$79.00

9-2

COVER, FRAME CENTER REAR

47411-17K00-YWW

$76.10

9-2

(WHITE)

47411-17K00-YWW

$76.10

10

CUSHION

44173-14J00

$4.09

11

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

12

CUSHION, FRAME COVER

94478-14J00

$5.66

13

SCREW (6X16)

09139-06139

$3.01

14

SCREW (5X13)

09139-05092

$2.29

15

NUT

09148-05052

$3.13

16

SPACER (6.5X10X7)

09180-06283

$1.97

17

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.80

18

CLIP

09409-06328

$3.00

19

SCREW

03541-0516A

$1.41
