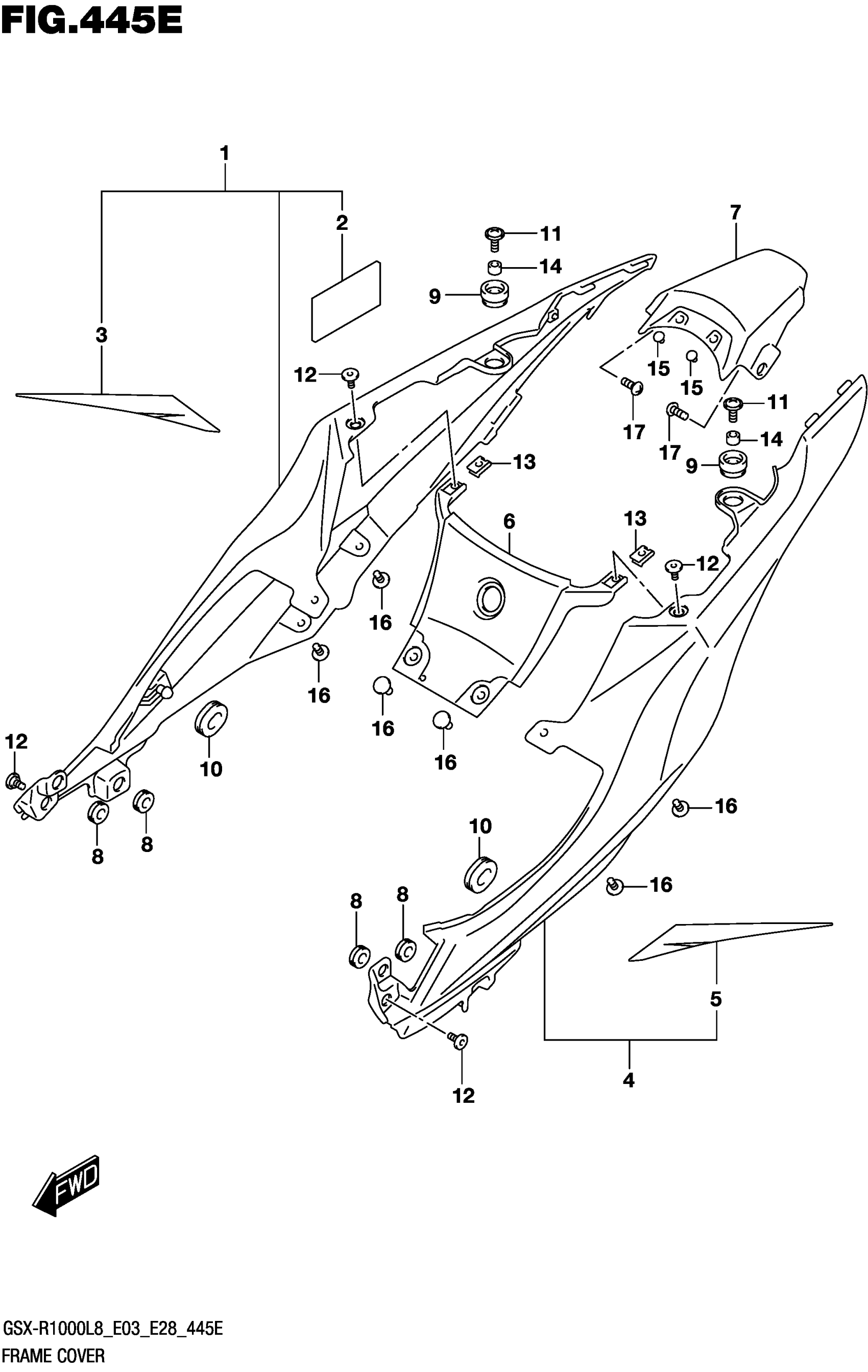

Suzuki GSX-R1000AL8 (2018) FRAME COVER (GSX-R1000AL8 E33) Diagram

#

Description
Price

1-1

COVER, FRAME RH (BLACK) | FOR YKV

47110-17K00-4UX

$151.42

1-2

COVER, FRAME RH (WHITE) | FOR YWW

47110-17K10-YWW

$145.87

2

.CUSHION

33652-17K10

$3.88

3-1

.TAPE, FRAME COVER RH | FOR 4UX

68135-17K00-FNF

$27.50

3-1

(BLUE/BLACK)

68135-17K00-FNF

$27.50

3-2

.TAPE, FRAME COVER RH | FOR YWW

68135-17K10-BQL

$31.73

4-1

COVER, FRAME LH (BLACK) | FOR YKV

47210-17K00-4UX

$151.42

4-2

COVER, FRAME LH (WHITE) | FOR YWW

47210-17K10-YWW

$145.87

5-1

.TAPE, FRAME COVER RH | FOR 4UX

68145-17K00-FNF

$32.33

5-1

(BLUE/BLACK)

68145-17K00-FNF

$32.33

5-2

.TAPE, FRAME COVER RH | FOR YWW

68145-17K10-BQL

$32.33

6

COVER,FRAME CENTER FRONT

47311-17K00

$30.67

7-1

COVER, FRAME CENTER REAR

47411-17K00-YKV

$70.33

7-1

(BLACK)

47411-17K00-YKV

$70.33

7-2

COVER, FRAME CENTER REAR

47411-17K00-YWW

$67.75

7-2

(WHITE)

47411-17K00-YWW

$67.75

8

CUSHION

44173-14J00

$4.16

9

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

10

CUSHION, FRAME COVER

94478-14J00

$5.92

11

SCREW (6X16)

09139-06139

$3.23

12

SCREW (5X13)

09139-05092

$2.25

13

NUT

09148-05052

$3.37

14

SPACER (6.5X10X7)

09180-06283

$1.91

15

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

16

CLIP

09409-06328

$3.23

17

SCREW

03541-0516A

$1.49
