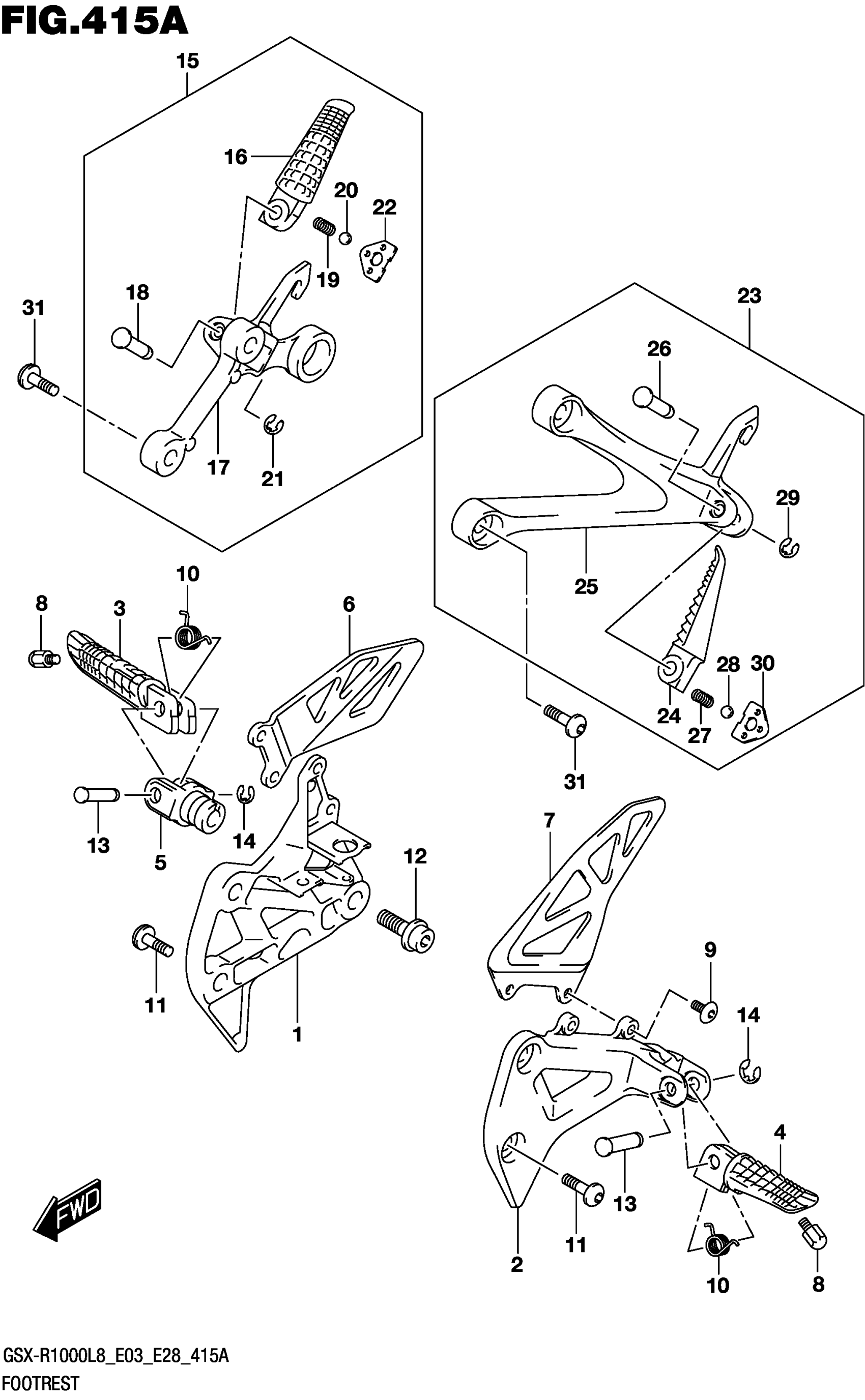

Suzuki GSX-R1000AL8 (2018) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST,R

43511-17K00

$118.52

2

BRACKET,FR FOOTREST,L

43521-17K00

$130.90

3

BAR,FRONT FOOTREST,R

43516-37H10

$52.08

4

BAR,FRONT FOOTREST,L

43526-37H10

$52.08

5

HOLDER,FOOTREST

43531-41G20

$91.90

6

GUARD,FR FOOTREST,R

43571-17K00

$86.32

7

GUARD,FR FOOTREST,L

43576-17K00

$86.32

8

BOLT,BANK SENSOR

43576-48B40

$11.04

9

SCREW,FOOTREST GUARD,L

43577-35F10

$3.98

10

SPRING, FRONT FOOTREST

43581-47H00

$3.33

11

BOLT (8X23)

09106-08186

$3.42

12

BOLT (10X28)

09106-10064

$4.90

13

PIN

09208-08018

$2.79

14

E RING

08332-1106A

$1.49

15

FOOTREST ASSY,PILLION,R

43600-17K00

$205.22

16

BAR,PILLION FOOTREST,R

43611-37H30

$52.42

17

.BRACKET,PILLION FOOTREST,R

43811-17K00

$145.40

18

.PIN

09208-08020

$3.23

19

.SPRING

09440-05005

$1.58

20

BALL

06111-07004

$1.49

21

.E RING

08332-1106A

$1.49

22

PLATE,PILLION FOOTREST

43816-01H20

$6.58

23

FOOTREST ASSY,PILLION,L

43700-17K00

$204.20

24

BAR,PILLION FOOTREST,L

43621-37H30

$55.75

25

.BRACKET,PILLION FOOTREST,L

43821-17K00

$145.40

26

.PIN

09208-08020

$3.23

27

.SPRING

09440-05005

$1.58

28

BALL

06111-07004

$1.49

29

.E RING

08332-1106A

$1.49

30

PLATE,PILLION FOOTREST

43816-01H20

$6.58

31

BOLT (8X23)

09106-08186

$3.42
