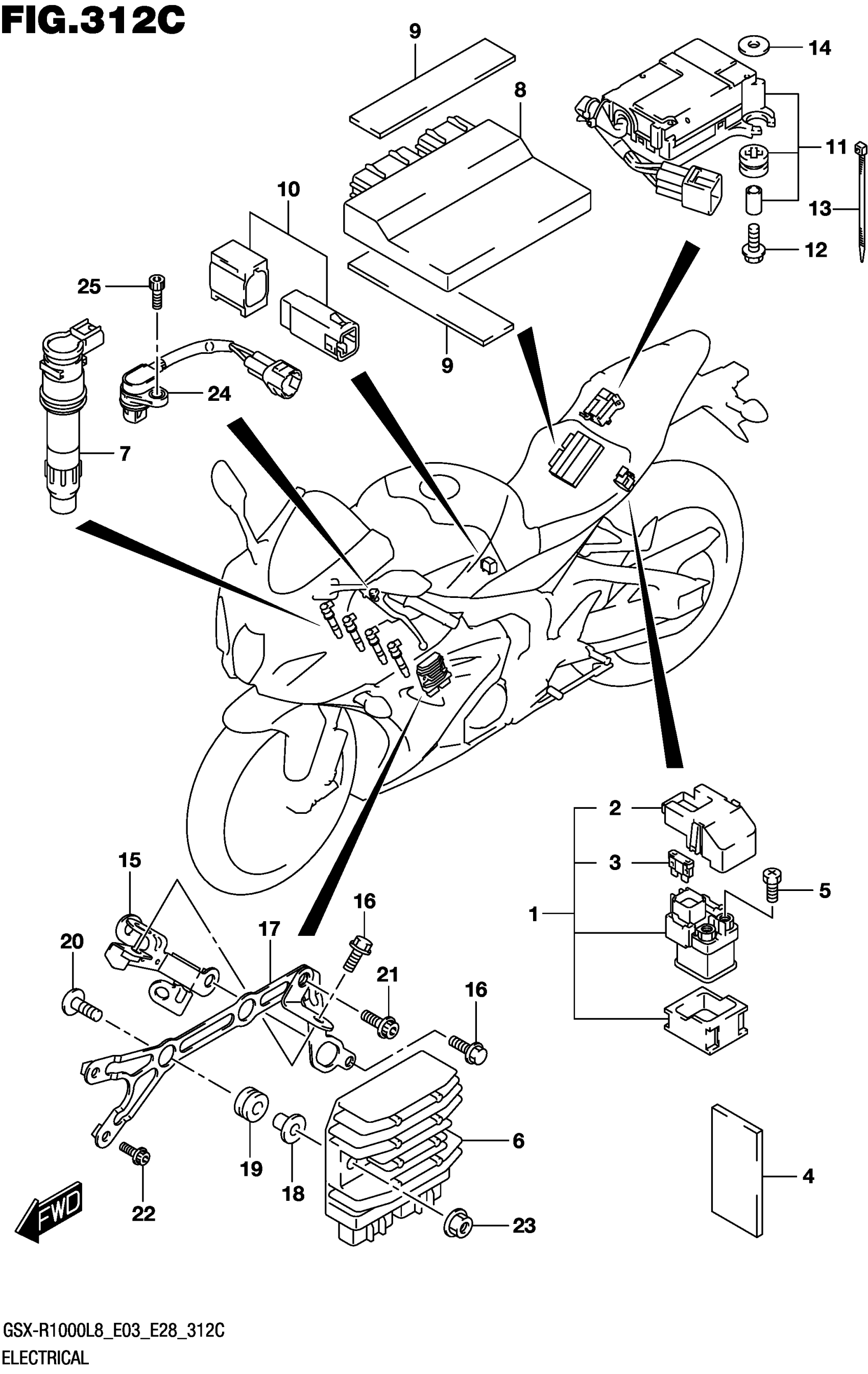

Suzuki GSX-R1000AL8 (2018) ELECTRICAL (GSX-R1000AL8 E03) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$67.32

2

.COVER

31861-47E00

$16.15

3

.FUSE (30A)

09481-30101

$2.26

4

PROTECTOR (30X60X3)

36920-08D00

Unavailable

5

SCREW (6X8)

09128-06013

$1.49

6

RECTIFIER ASSY This part replaces 32800-26J01.

32800-26J02

$262.27

7

COIL ASSY,IGNITION This part replaces 33410-17K00.

33410-17K01

$183.18

8

CONTORL UNIT,F This part replaces 32920-17K61.

32920-17K62

$1,837.08

9

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

10

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

11

ACTUATOR ASSY This part replaces 33970-47H01.

33970-47H03

$422.63

12

BOLT (6X23)

09103-06066

Unavailable

13

CLAMP (L:100)

09407-10404

$2.90

14

WASHER

08322-0106A

$1.84

15

BRACKET,HARNESS

36670-17K00

Unavailable

16

BOLT

01547-0612A

$2.03

17

BRACKET, RECT FTG

32830-17K00

$56.02

18

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

19

CUSHION

09320-08501

$3.23

20

SCREW

02142-0635A

$2.72

21

BOLT

07120-0620A

$2.72

22

BOLT

07120-0630B

$3.49

23

NUT

08316-1006A

$2.19

24

SENSOR ASSY,CAM POSITION This part replaces 33220-01H00.

33220-01H01

$108.00

25

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39
