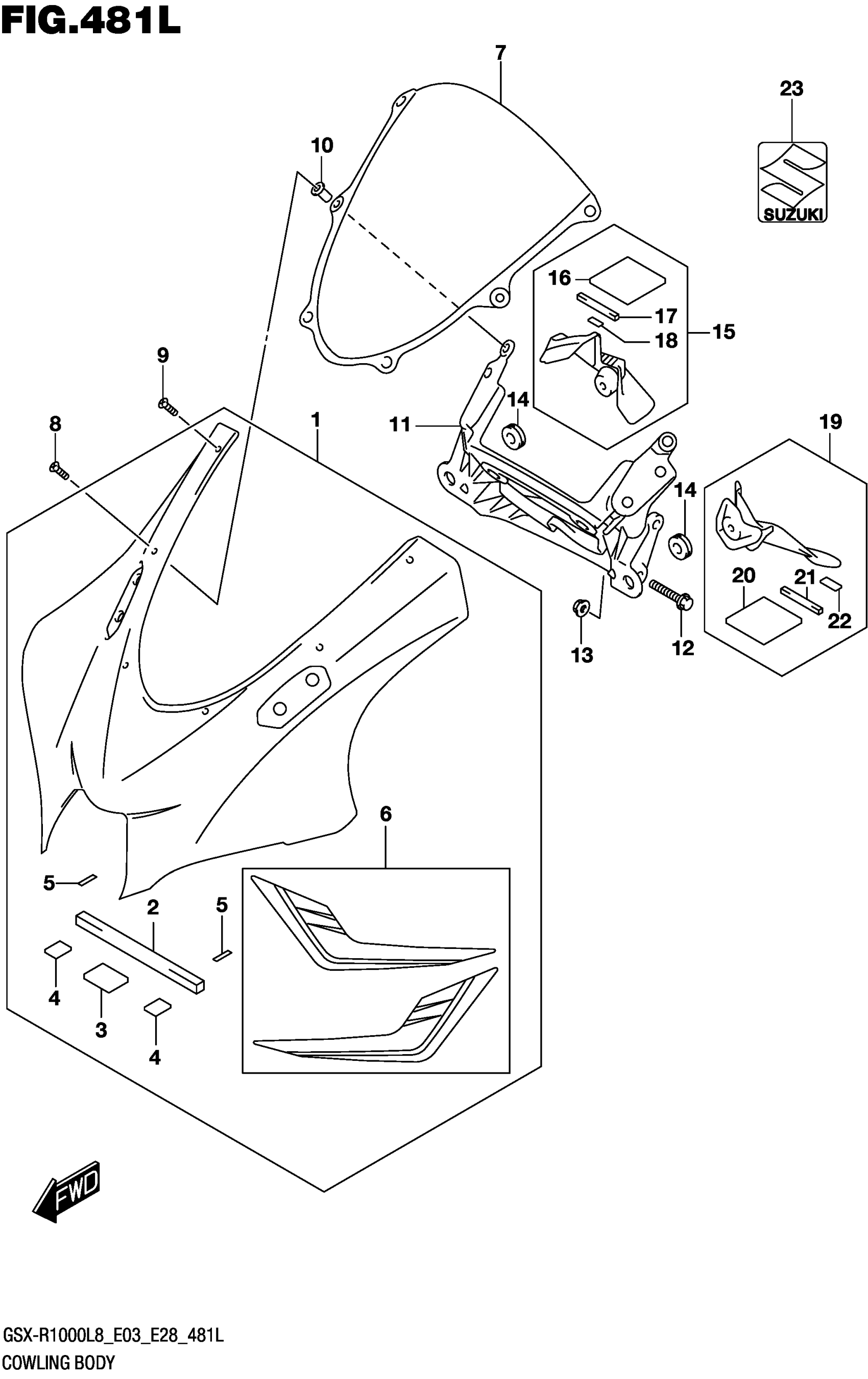

Suzuki GSX-R1000AL8 (2018) COWLING BODY (GSX-R1000RZL8 E03) Diagram

#

Description
Price

1-1

BODY, COWLING (BLACK)

94410-17K10-YVB

$316.22

1-2

BODY, COWLING (WHITE)

94410-17K10-YWW

$310.35

2

.CUSHION,FUEL TANK (L:160)

44192-44H00

$3.38

3

.FASTENER

44572-02F01

$10.13

4

.FASTENER, COWLING

44572-37H00

$9.01

5

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$4.47

6-1

.TAPE, SET COWLING BODY | FOR YVB

68270-17K00-BQM

$41.80

6-2

.TAPE, SET COWLING BODY | FOR YWW

68270-17K00-BQL

$40.27

7

WINDSCREEN

94611-17K00

$106.78

8

SCREW,WINDSCREEN FRONT

94631-17K00

$4.51

9

SCREW,WINDSCREEN REAR

94621-17K00

$4.46

10

NUT

09159-05019

$6.44

11

BRACE,COWLING

94511-17K00

$191.37

12

BOLT (8X45)

09103-08207

$2.59

13

NUT

08313-2008A

$2.50

14

CUSHION

09320-08028

$2.80

15

PANEL,METER,R

94630-17K00

$15.01

16

.CUSHION | CUT AS REQUIRED

33652-20C00

$2.80

17

.CUSHION

44279-18K00

$5.12

18

PAD (8X20X2)

73415-70A00

$1.50

19

PANEL,METER,L

94640-17K00

$21.15

20

.CUSHION | CUT AS REQUIRED

33652-20C00

$2.80

21

.CUSHION

44279-18K00

$5.12

22

PAD (8X20X2)

73415-70A00

$1.50

23

EMBLEM, "S"

68281-47HA0

$7.11
