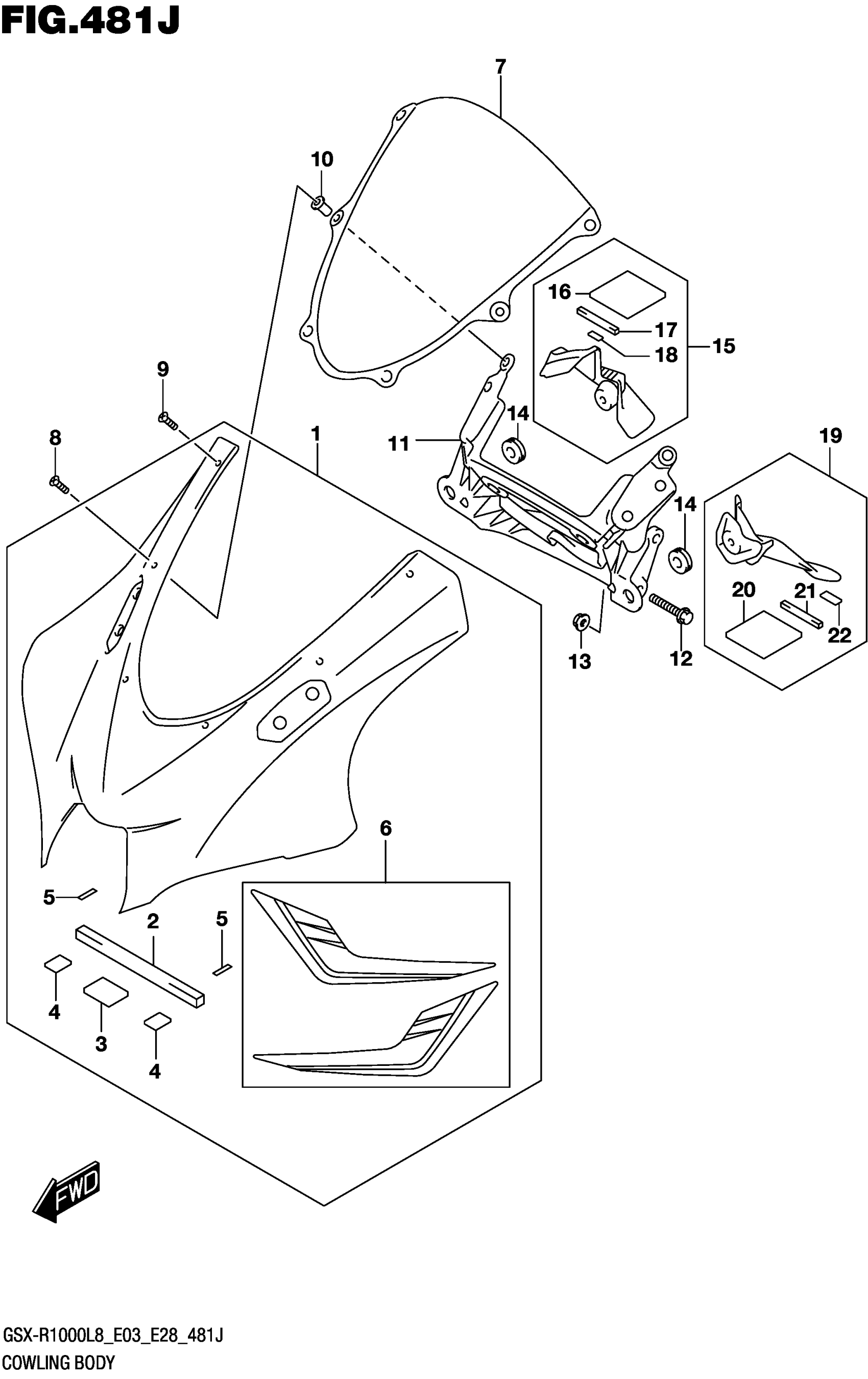

Suzuki GSX-R1000AL8 (2018) COWLING BODY (GSX-R1000AL8 E33) (FOR YWW) Diagram

Description

Price

BODY, COWLING (WHITE)

94410-17K10-YWW

$279.00

.CUSHION,FUEL TANK (L:160)

44192-44H00

$3.00

.FASTENER

44572-02F01

$11.07

.FASTENER, COWLING

44572-37H00

$9.83

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$3.95

.TAPE, SET COWLING BODY

68270-17K00-BQL

$35.68

WINDSCREEN

94611-17K00

$99.22

SCREW,WINDSCREEN FRONT

94631-17K00

$4.93

SCREW,WINDSCREEN REAR

94621-17K00

$4.73

NUT

09159-05019

$7.14

BRACE,COWLING

94511-17K00

$171.97

BOLT (8X45)

09103-08207

$2.51

NUT

08313-2008A

$2.50

CUSHION

09320-08028

$3.04

PANEL,METER,R

94630-17K00

$15.94

.CUSHION | CUT AS REQUIRED

33652-20C00

$2.99

.CUSHION

44279-18K00

$4.53

PAD (8X20X2)

73415-70A00

$1.56

PANEL,METER,L

94640-17K00

$18.73
