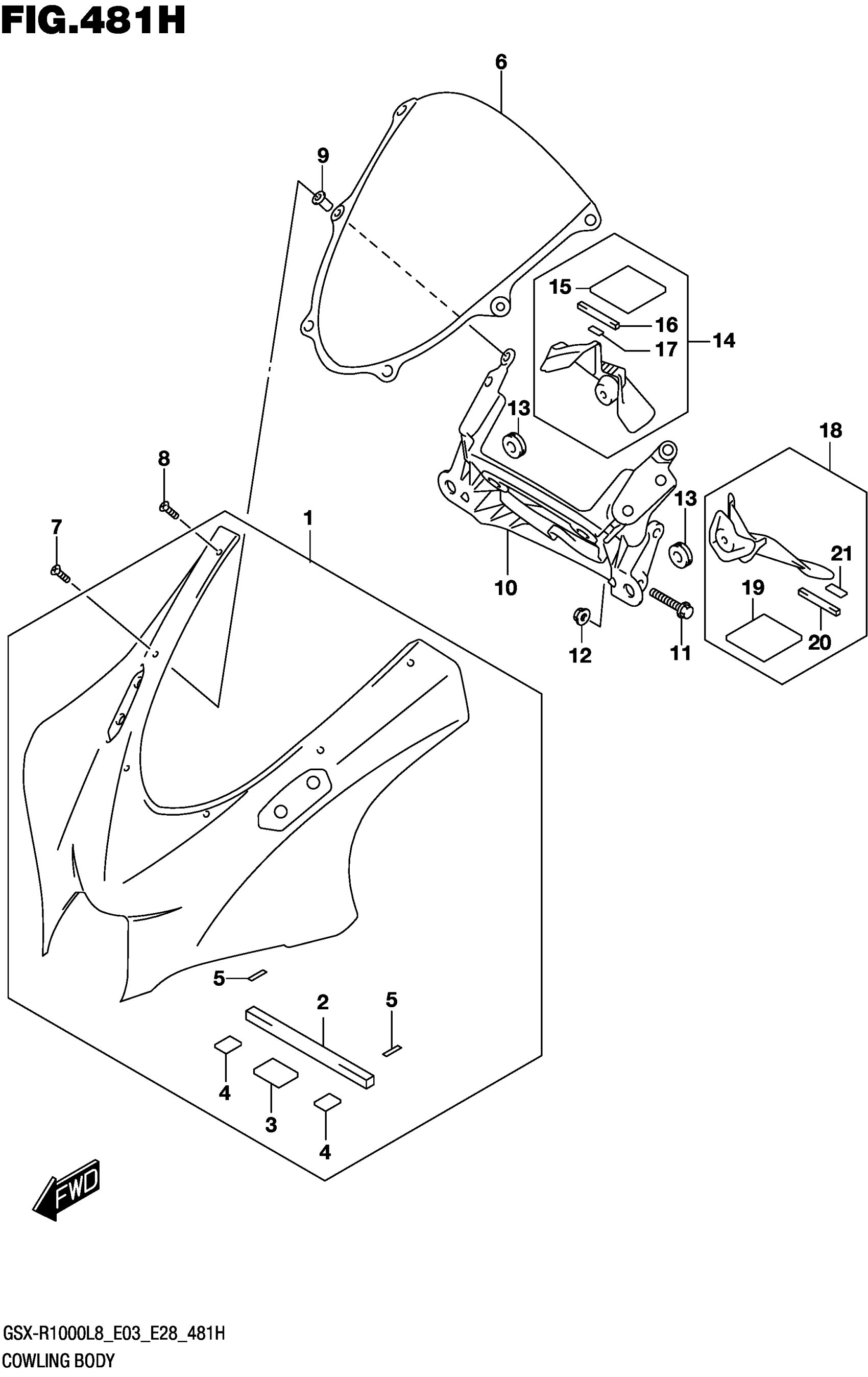

Suzuki GSX-R1000AL8 (2018) COWLING BODY (GSX-R1000AL8 E28) (FOR YKV) Diagram

#

Description
Price

1

BODY, COWLING (BLACK)

94410-17K00-YKV

$279.00

2

.CUSHION,FUEL TANK (L:160)

44192-44H00

$3.00

3

.FASTENER

44572-02F01

$11.07

4

.FASTENER, COWLING

44572-37H00

$9.83

5

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$3.95

6

WINDSCREEN

94611-17K00

$99.22

7

SCREW,WINDSCREEN FRONT

94631-17K00

$4.93

8

SCREW,WINDSCREEN REAR

94621-17K00

$4.73

9

NUT

09159-05019

$7.14

10

BRACE,COWLING

94511-17K00

$171.97

11

BOLT (8X45)

09103-08207

$2.51

12

NUT

08313-2008A

$2.50

13

CUSHION

09320-08028

$3.04

14

PANEL,METER,R

94630-17K00

$15.94

15

.CUSHION | CUT AS REQUIRED

33652-20C00

$2.99

16

.CUSHION

44279-18K00

$4.53

17

PAD (8X20X2)

73415-70A00

$1.56

18

PANEL,METER,L

94640-17K00

$18.73

19

.CUSHION | CUT AS REQUIRED

33652-20C00

$2.99

20

.CUSHION

44279-18K00

$4.53

21

PAD (8X20X2)

73415-70A00

$1.56
