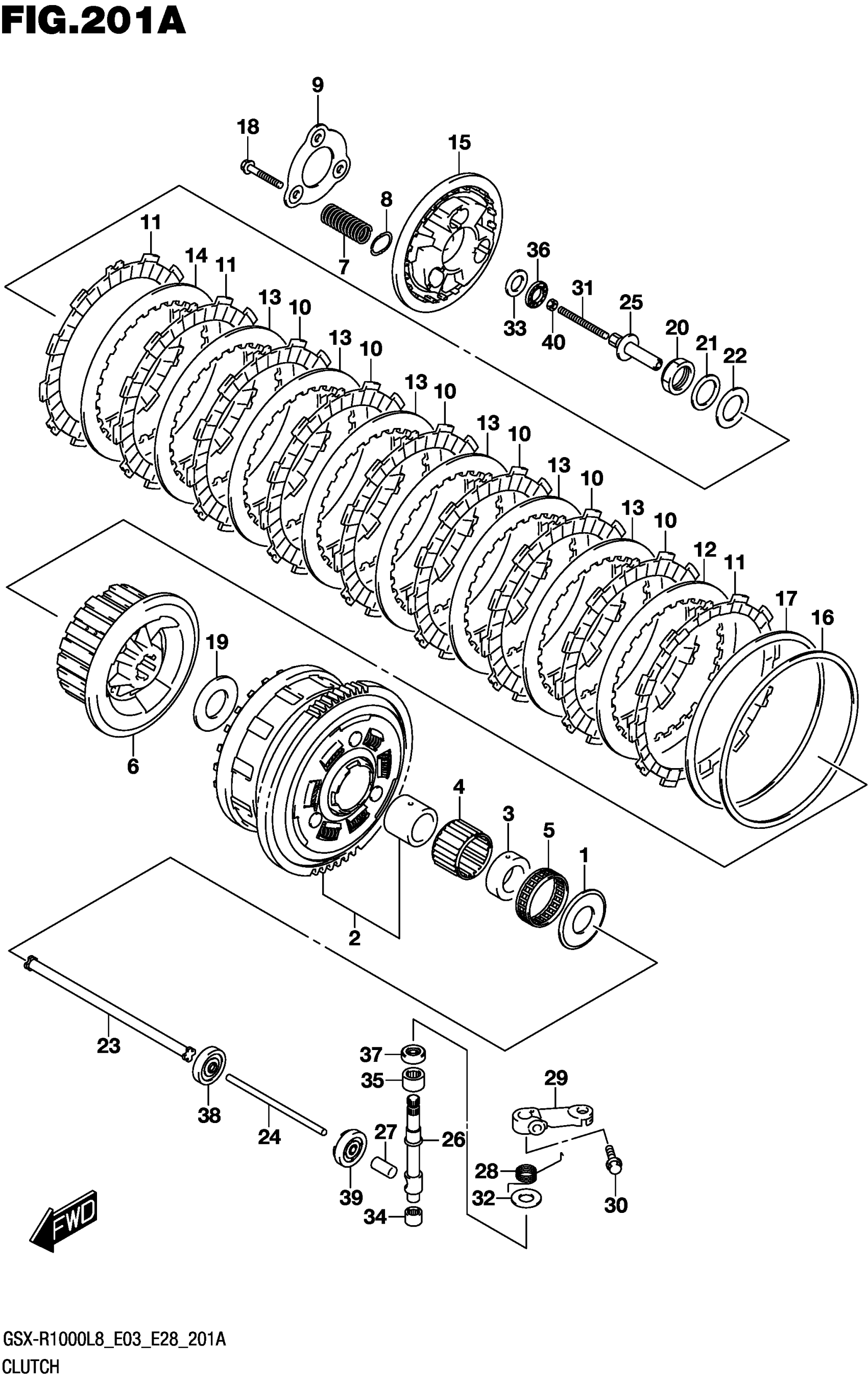

Suzuki GSX-R1000AL8 (2018) CLUTCH Diagram

#

Description
Price

1

WASHER,PRI DRIVEN GEAR THR

21222-17K00

$20.07

2

GEAR ASSY, PRIMARY DRIVEN

21200-17880

$394.53

3

SPACER, OIL PUMP DRIVE

21253-01H10

$41.45

3

SPROCKET

21253-01H10

$41.45

4

BEARING (35X40X26.8)

09263-35015

$27.95

5

BEARING (35X40X12)

09263-35045

$22.75

6

HUB,CLUTCH SLEEVE

21411-17K00

$163.30

7

SPRING,CLUTCH

21413-17K00

$6.15

8

SEAT,CLUTCH SPRING

21415-17K00

$12.17

9

PLATE,STOPPER

21414-17K00

$15.82

10

PLATE, CLUTCH DRIVE NO.1

21441-42F20

$28.07

10

(T:3.3)

21441-42F20

$28.07

11

PLATE, CLUTCH DRIVE NO.2

21442-42F10

$33.17

11

(T:3.3)

21442-42F10

$33.17

12

PLATE, CLUTCH DRIVEN NO.2

21451-47H10

$16.10

12

(T:2.3)

21451-47H10

$16.10

13

PLATE, CLUTCH DRIVEN NO.1

21451-47H30

$14.85

13

(T:2.3)

21451-47H30

$14.85

14

PLATE, CLUTCH DRIVEN NO.4

21451-47H50

$10.65

14

(T:2.6)

21451-47H50

$10.65

15

DISC,CLUTCH PRESSURE

21462-17K00

$94.37

16

SEAT,WAVE WASHER

21471-02F20

$17.37

17

WASHER,CLUTCH PLATE WAVE

21472-02F20

$24.95

18

BOLT,CLUTCH SPRING

21482-17K00

$3.55

19

.WASHER (25X50X2.5)

09160-25056

$11.61

20

NUT

09159-24010

$13.22

21

WASHER

09164-24008

$4.60

22

SHIM (25X38X1)

09181-25223

$3.21

23

ROD, CLUTCH

23110-27A00

$21.09

24

ROD, CLUTCH PUSH, LH

23111-26D00

$15.88

25

PIECE,CLUTCH PUSH

23121-41G30

$57.12

26

CAMSHAFT,CLUTCH RELEASE

23122-41G00

$56.90

27

CAP, CLUTCH PUSH ROD

23123-41G00

$10.93

28

SPRING, CLUTCH RELEASE RETURN

23125-41G00

$3.25

29

ARM,CLUTCH RELEASE

23271-41G50

$53.97

30

BOLT (6X20)

09103-06223

$2.47

31

SCREW (6X73)

09134-06015

$6.88

32

WASHER (10.5X24X1)

09160-10020

$2.05

33

WASHER (15.5X28X1)

09160-15045

$3.89

34

BEARING (10X14X10)

09263-10014

$13.52

35

BEARING (12X18X12)

09263-12027

$7.31

36

BEARING (15X28X2)

09263-15003

$8.29

37

OIL SEAL (10X20X6)

09282-10012

$7.98

38

SEAL,OIL

09283-06013

$13.15

39

OIL SEAL (10X17X5)

09285-10004

$3.37

40

NUT

08310-0006A

$1.84
