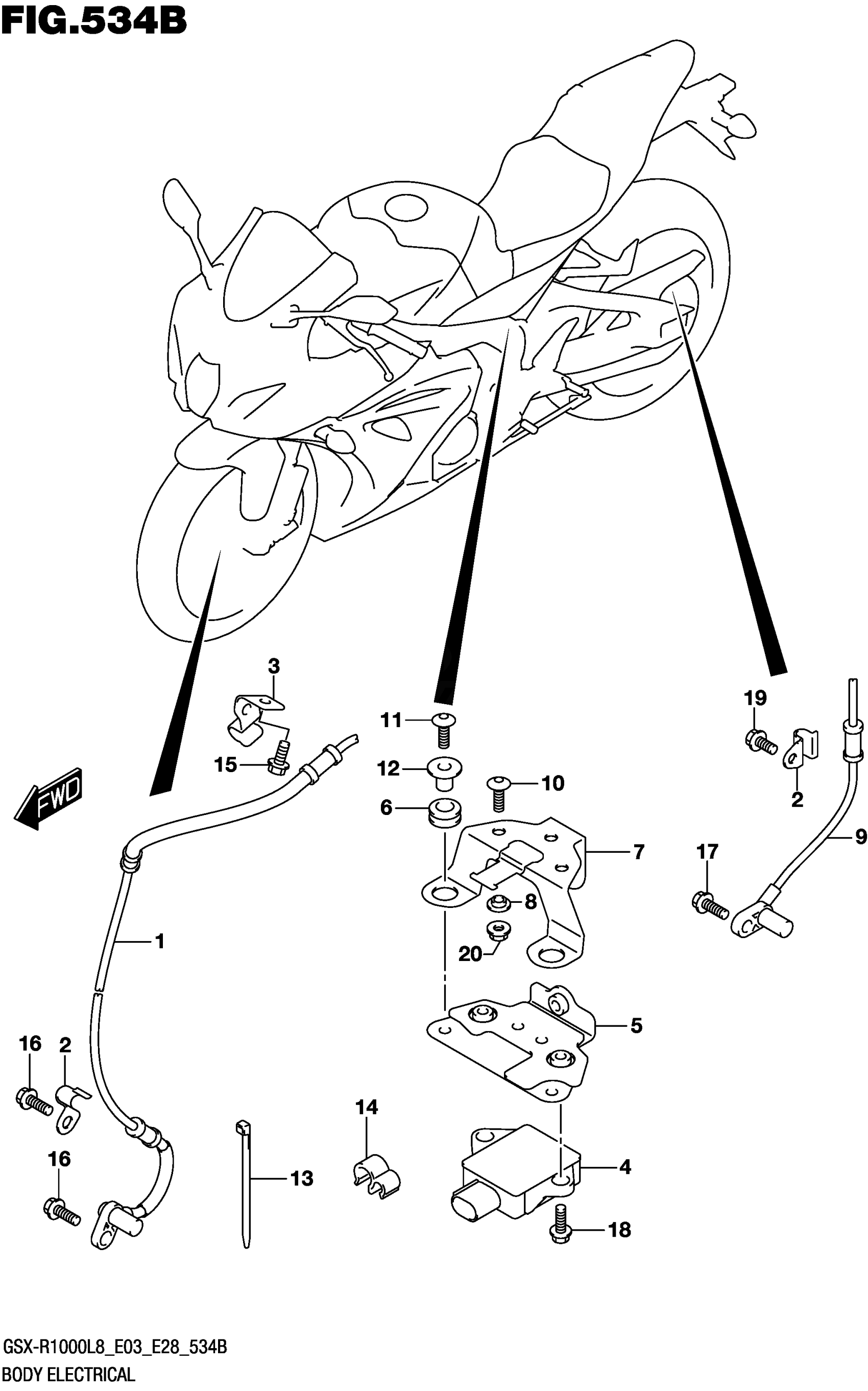

Suzuki GSX-R1000AL8 (2018) BODY ELECTRICAL (GSX-R1000L8 E33) Diagram

Description

Price

SENSOR, FR WHEEL SPEED

55710-17K10

$145.45

CLAMP, ABS SENSOR FR

55731-15H00

$4.83

CLAMP, FR WHL SPD SENSOR

55732-17K00

Unavailable

SENSOR, INERTIAL

55750-17K00

Unavailable

HOLDER,INERTIAL SENSOR

55760-17K10

$30.02

RUBBER,INERTIAL SENSOR MTG

55763-17K00

$4.77

BRACKET,SENSOR HOLDER

55770-17K00

$45.33

SPACER,SENSOR HOLDER BRKT

55772-17K00

$11.33

SENSOR,RR WHEEL SPEED

65710-17K00

$65.94

SCREW (6X16)

09139-06139

$3.23

BOLT

09139-06208

$3.25

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

CLAMP (L:145)

09407-14407

$3.57

CLAMP

09408-00266

$2.51

BOLT

01550-0612A

$1.97

BOLT

01547-0616B

$2.45

BOLT

01547-0616B

$2.45

BOLT

07120-0616A

$2.53

BOLT

01547-0612A

$2.03

NUT

08316-1006A

$2.19
