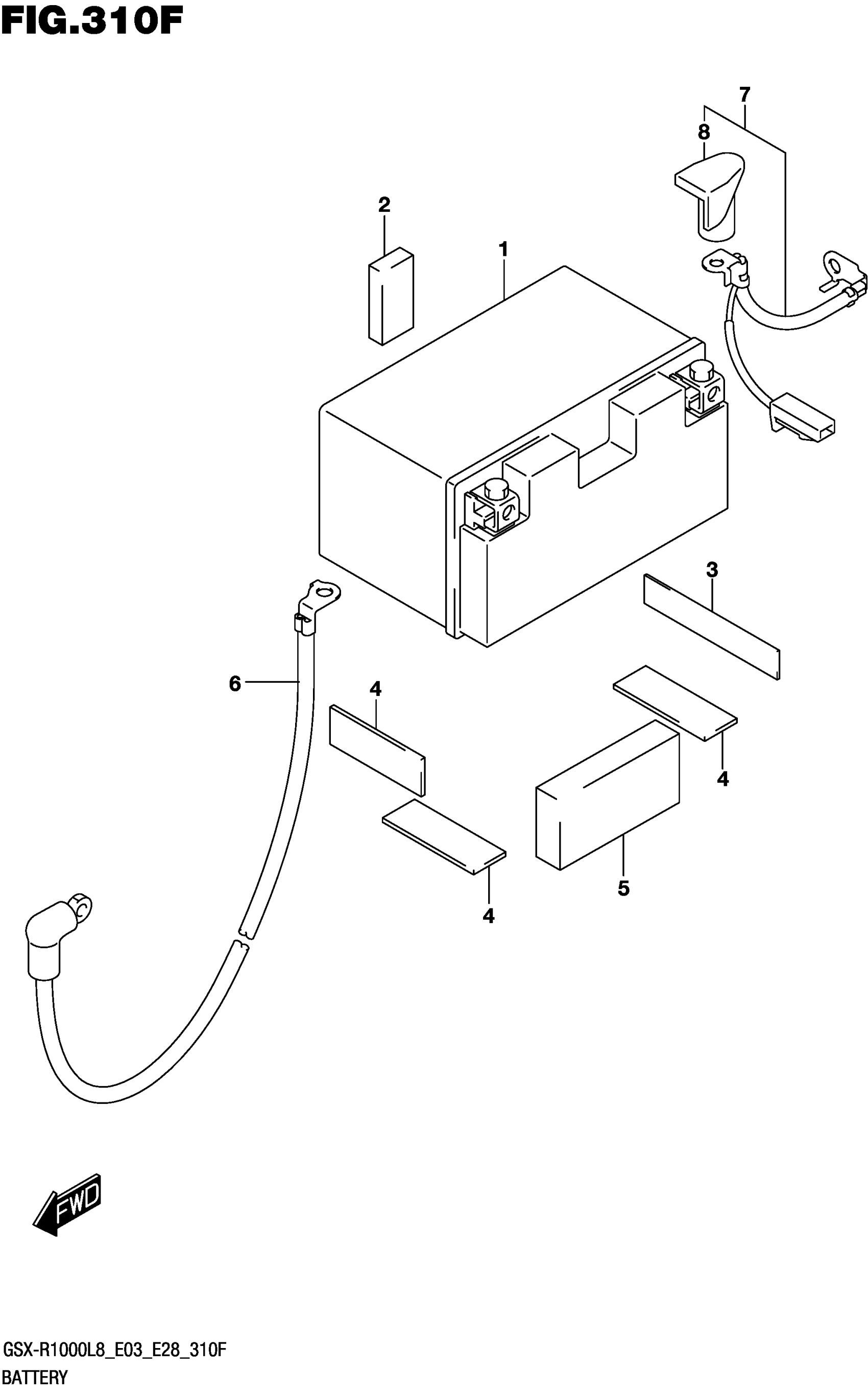

Suzuki GSX-R1000AL8 (2018) BATTERY (GSX-R1000RZL8 E03) Diagram

#

Description

Price

1

BATTERY ASSY This part replaces 33620-17K00.

33620-17K02

$163.40

1

BATTERY ASSY This part replaces 33620-17K00.

33620-17K02

$163.40

2

PROTECTOR,BATTERY

33652-17K00

$2.70

3

PROTECTOR,BATTERY

33652-17K20

$5.92

4

PROTECTOR,BATTERY

33652-17K30

$5.92

5

CUSHION,BATTERY

33652-17K40

$5.98

6

WIRE,STARTER MOTOR LEAD This part replaces 33810-17K00.

33810-17K01

$74.33

7

WIRE,BATTERY PLUS LEAD

33820-17K10

$26.92

8

.CAP, BATTERY PLUS TERMINAL

33624-04K00

$8.12
