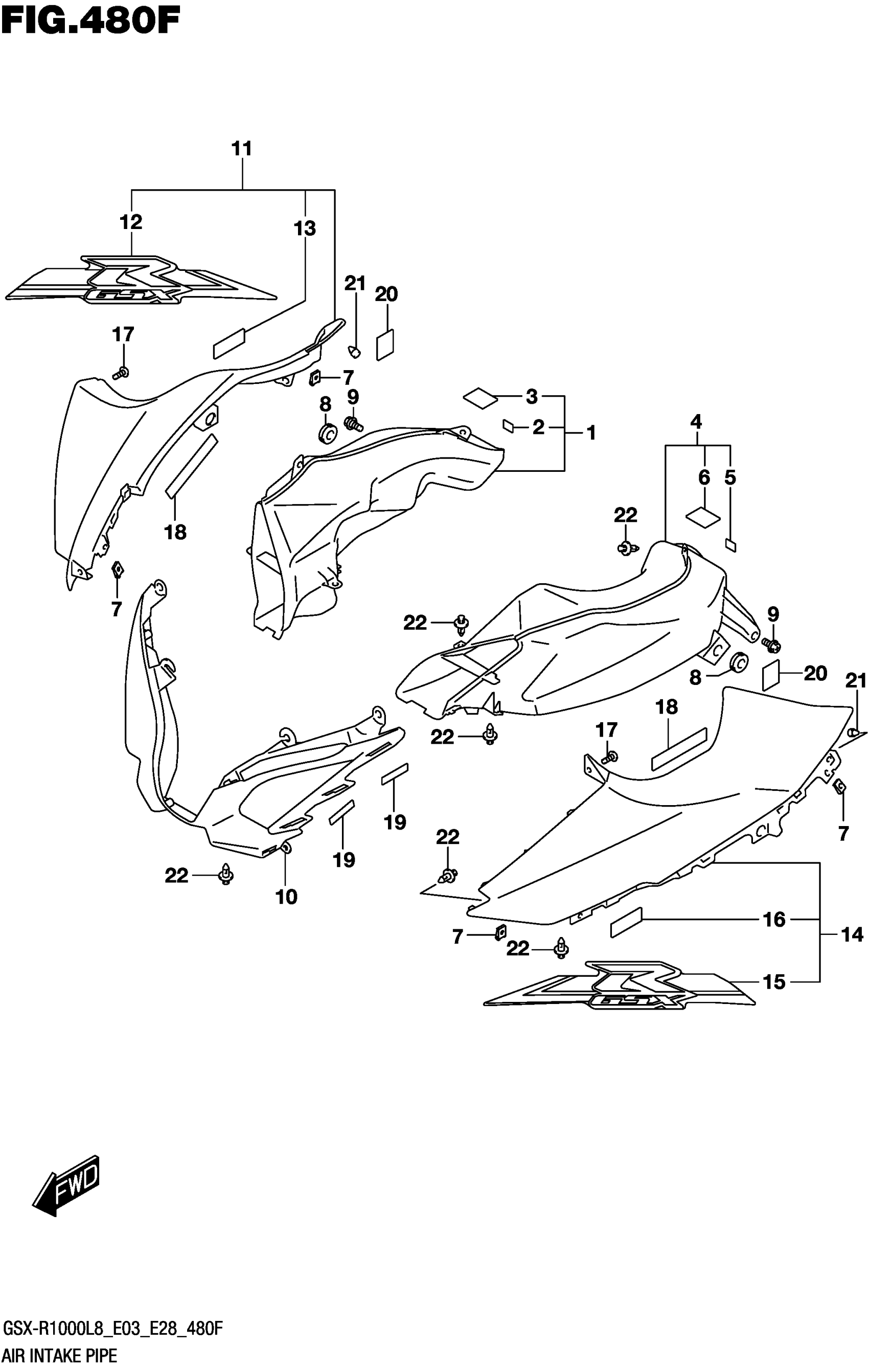

Suzuki GSX-R1000AL8 (2018) AIR INTAKE PIPE (GSX-R1000RZL8 E03) Diagram

#

Description
Price

1

PIPE,AIR INTAKE,R

94420-17K00

$57.70

2

CUSHION (10X10X1)

63115-37H00

$3.42

3

.CUSHION, INTAKE PIPE

36930-60A10

$2.80

4

PIPE,AIR INTAKE,L

94430-17K00

$81.37

5

CUSHION (10X10X1)

63115-37H00

$3.42

6

.CUSHION, INTAKE PIPE

36930-60A10

$2.80

7

NUT

09148-05052

$3.04

8

CUSHION

09320-08028

$2.80

9

BOLT (6X12)

09111-06106

$2.28

10-1

COVER, INTAKE (BLACK) | FOR YVB

94671-17K00-YKV

$97.23

10-2

COVER, INTAKE (WHITE) | FOR YWW

94671-17K00-YWW

$101.45

11-1

COVER, INTAKE RH (BLACK)

94670-17K10-YVB

$203.77

11-2

COVER, INTAKE RH (WHITE)

94670-17K10-YWW

$203.77

12-1

.TAPE, INTAKE COVER RH | FOR YVB

68275-17K10-BQR

$29.88

12-2

.TAPE, INTAKE COVER RH | FOR YWW

68275-17K10-BQQ

$29.88

13

PAD (8X20X2)

73415-70A00

$1.50

14-1

COVER, INTAKE LH (BLACK)

94680-17K10-YVB

$211.53

14-2

COVER, INTAKE LH (WHITE)

94680-17K10-YWW

$203.77

15-1

.TAPE, INTAKE COVER LH | FOR YVB

68276-17K10-BQR

Unavailable

15-2

.TAPE, INTAKE COVER LH | FOR YWW

68276-17K10-BQQ

$29.88

16

PAD (8X20X2)

73415-70A00

$1.50

17

SCREW (5X12)

09132-05050

$1.89

18

CUSHION, COVER INTAKE NO.1

36930-82010

$4.05

19

CUSHION, COVER INTAKE CTR | CUT AS REQUIRED

94476-38C00

Unavailable

20

CUSHION, COVER SIDE

94633-31J00

$2.43

21

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

22

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80
